Product Description

📦 Product Description

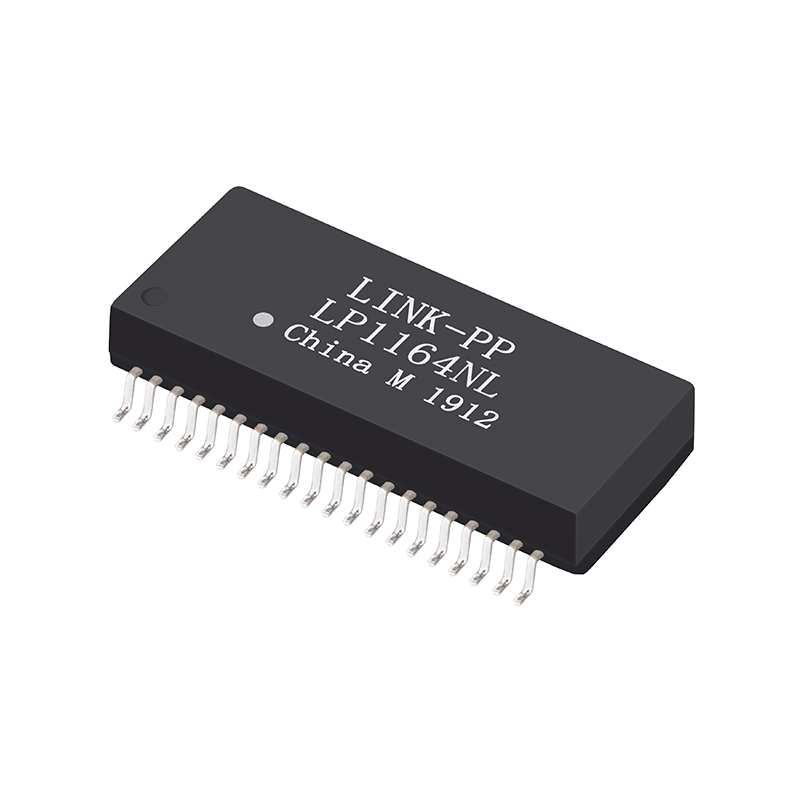

Product Image 1

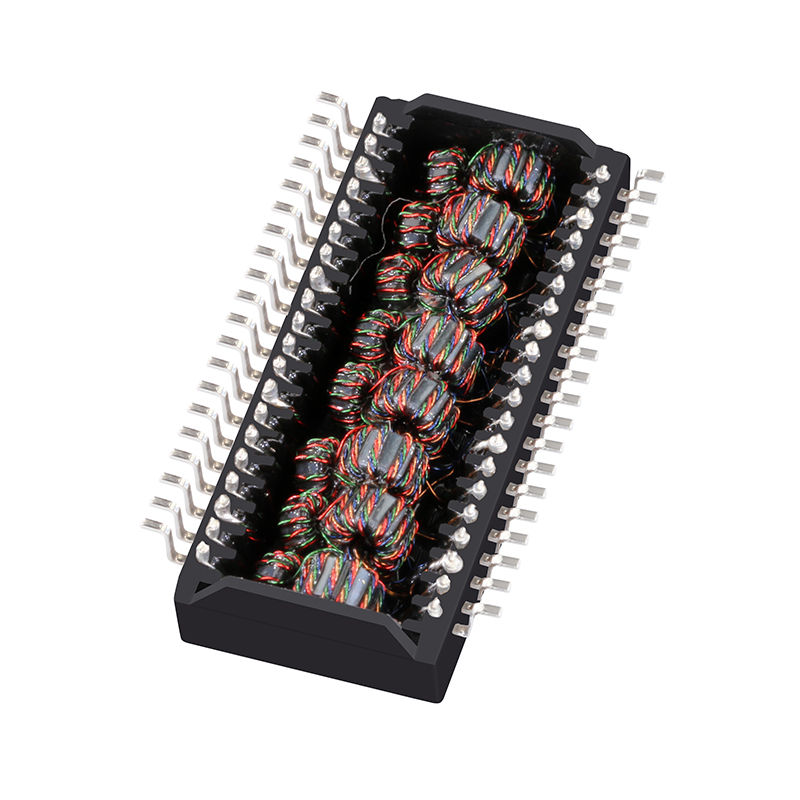

Product Image 2
📋 Specification
Item Value
Place of OriginChina
Part NumberLP1164NL
Cross ReferenceH1164NLT
Transformer TypeLan Transformer
Application-LanEthernet(Non PoE)
Number of PortsQuad Port
Speed10/100 Base-T
PackageTape & Reel
Cores per Port16
PIN number40
Mounting TypeSurface Mount
Temperature0℃ TO +70℃
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C,S
🚚 Packing & Delivery
Packing Details
  • N.W/pcs: 0.005kg
  • Package: Reel
  • SPQ: 400pcs
  • Qty/carton: 1600pcs
  • Carton size: 36*35.5*23cm
  • G.W/carton: 7.5kg
🏭 Manufacturing Capabilities

As a specialized manufacturer of magnetic telecom and networking components, our facility is certificated by ISO9001:2000, ROSH, REACH, CE and UL. We own advanced manufacturing facilities and test equipment imported from abroad. With an abundant productive capacity of 3000K per month, we ensure delivery within a short time. We provide professional complete solutions for magnetic components and strong technical support.

Main Product Categories:

  • 10/100/1000M LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Production Facility 1
Production Facility 2
Testing Equipment
Workshop
Quality Control
Storage
Shipping
❓ Frequently Asked Questions
What is the specific application for the LP1164NL transformer?
It is primarily designed for 10/100 Base-T Ethernet applications, specifically for non-PoE networking equipment.
Is this component compatible with SMT assembly lines?
Yes, the LP1164NL features a Surface Mount (SMD) mounting type and is provided in Tape & Reel packaging for automated assembly.
What are the operating temperature limits?
The component is designed to operate reliably within a temperature range of 0℃ to +70℃.
How many ports does this LAN transformer support?
This is a Quad Port transformer, meaning it supports four Ethernet ports in a single integrated component.
What are the standard certifications for your magnetic components?
Our products are manufactured in facilities certified by ISO9001:2000 and comply with ROSH, REACH, CE, and UL standards.
What is the standard packaging quantity per carton?
The standard quantity is 400pcs per reel, with a total of 1600pcs packed into a standard export carton.
