In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
1 / 5
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL

In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL

Send Inquiry

Product Description

Product Overview

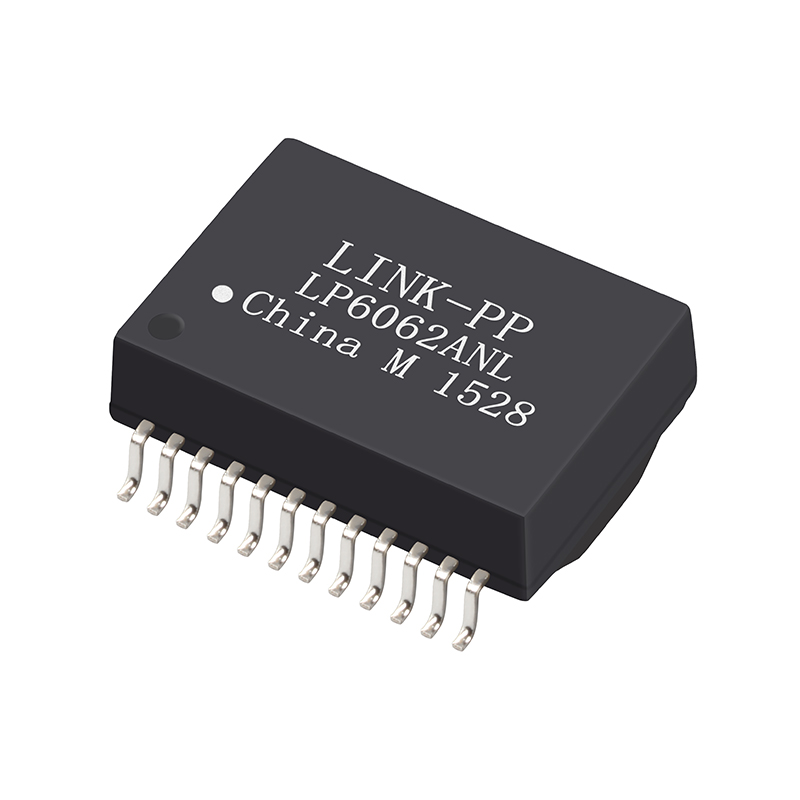

Product Detail 1

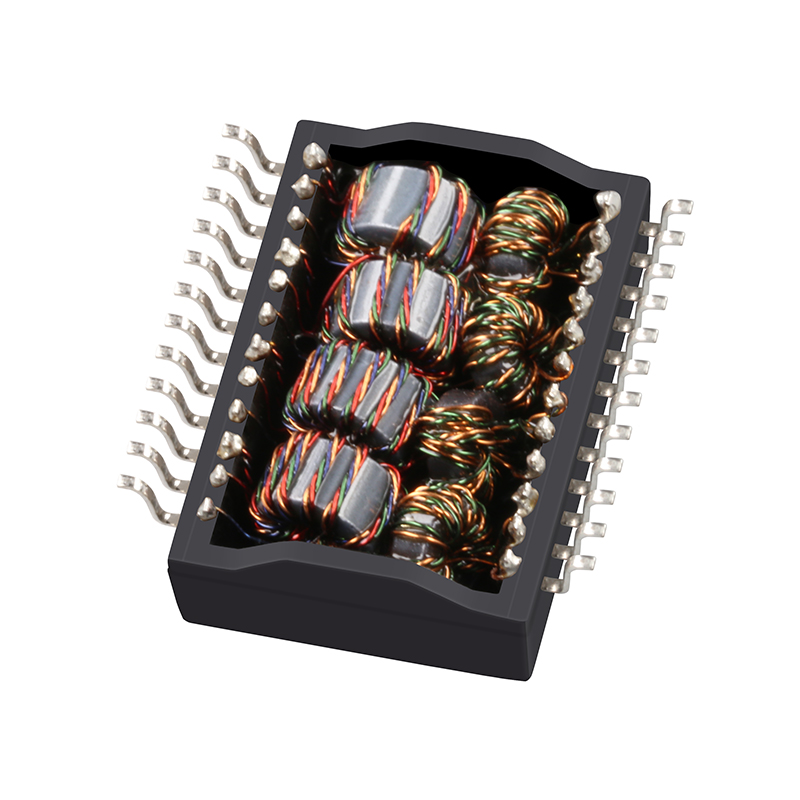

Product Detail 2

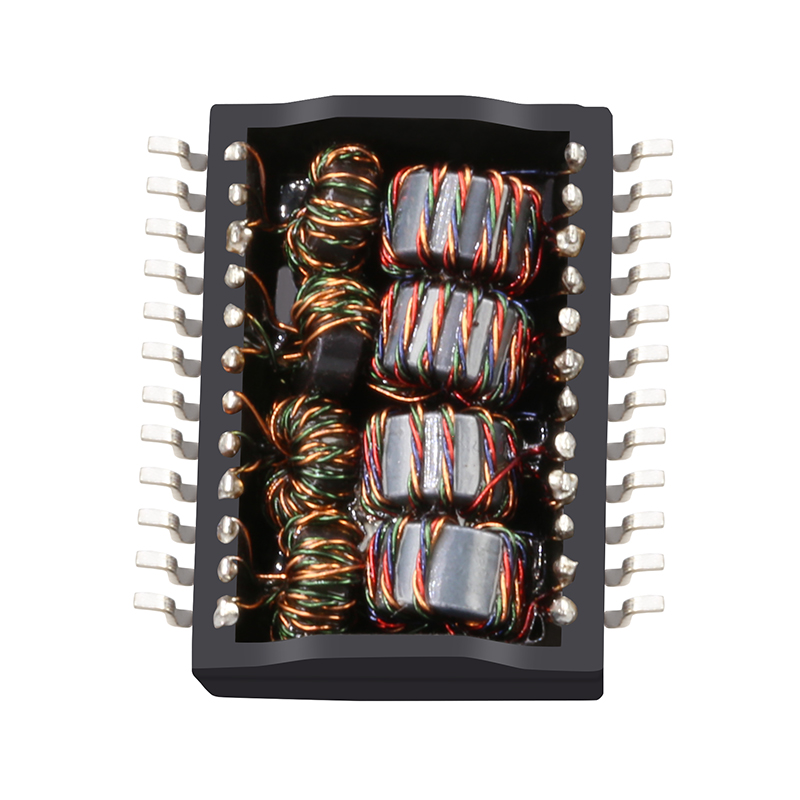

Product Detail 3

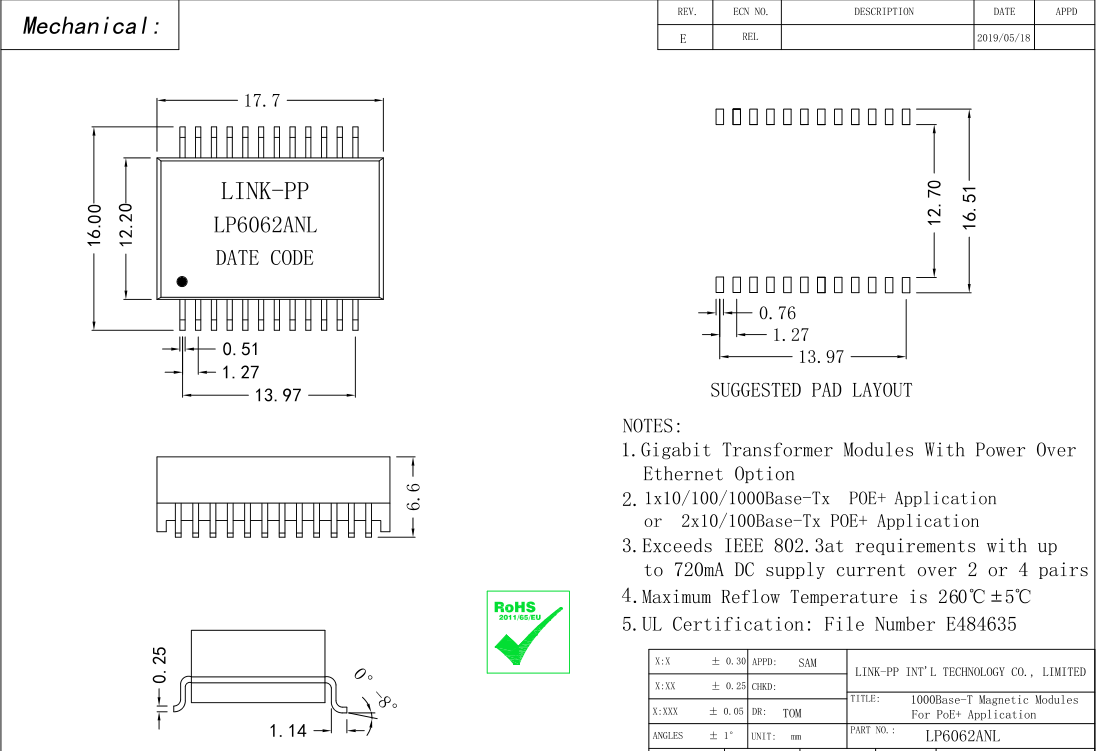

Technical Drawing
TECHNICAL SPECIFICATIONS
Item Value
Place of Origin China
Part Number LP6062ANL
Cross Reference TG1G-S012NZRL
Transformer Type Lan Transformer
Application-Lan Ethernet (PoE+)
Number of Ports Single Port
Speed 10/100/1000 Base-T
Package Tape & Reel
Cores per Port 8
PIN number 24 Pin
Mounting Type Surface Mount
Temperature -40℃ TO +85℃
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
Package Details
📦 PACKAGING DETAILS
N.W/pcs: 0.004kg | Package: Reel | SPQ: 400pcs | Qty/carton: 1600pcs | Carton size: 37*37*25cm | G.W/carton: 5.8kg
Production View 1
Production View 2
Production View 3

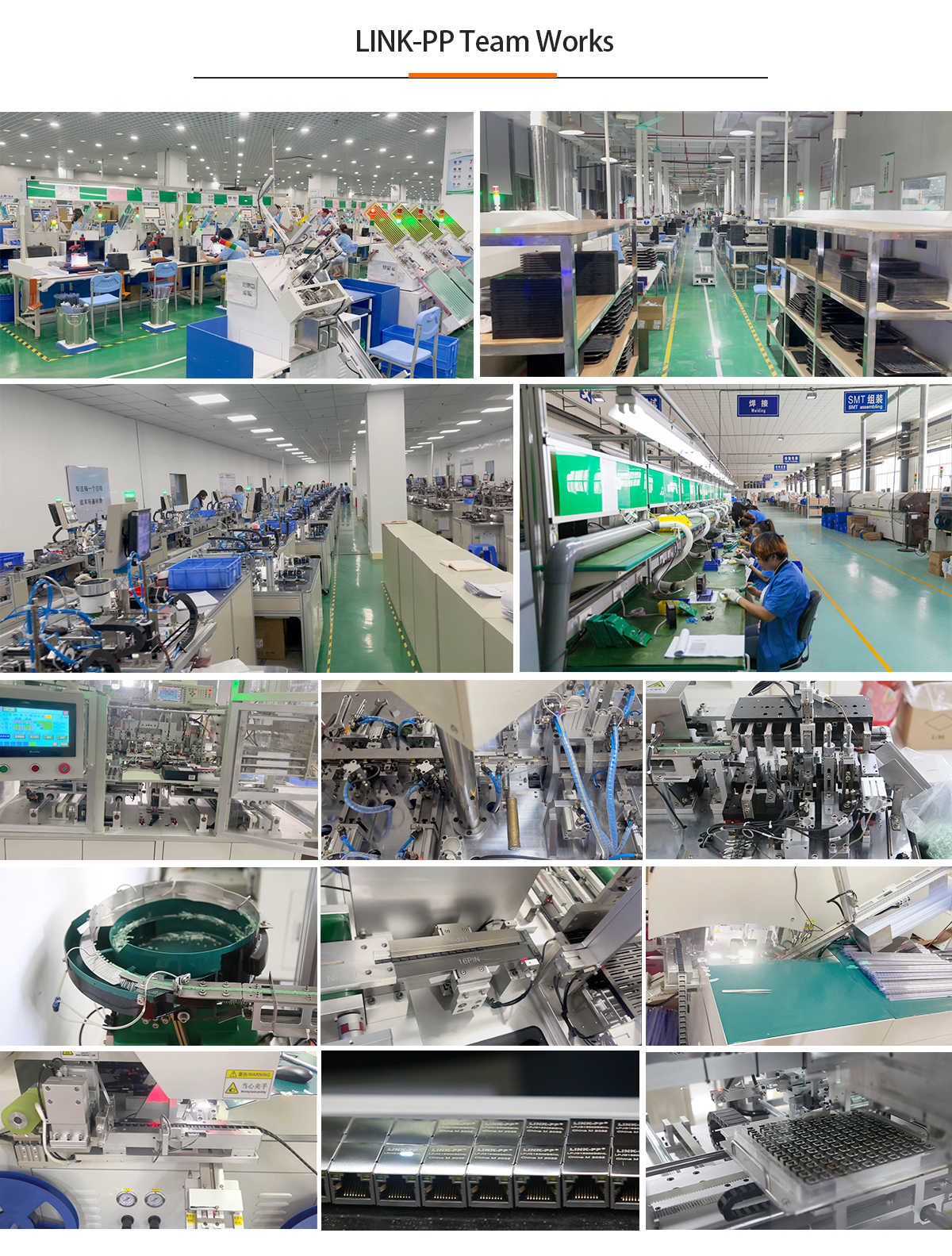

Production View 4

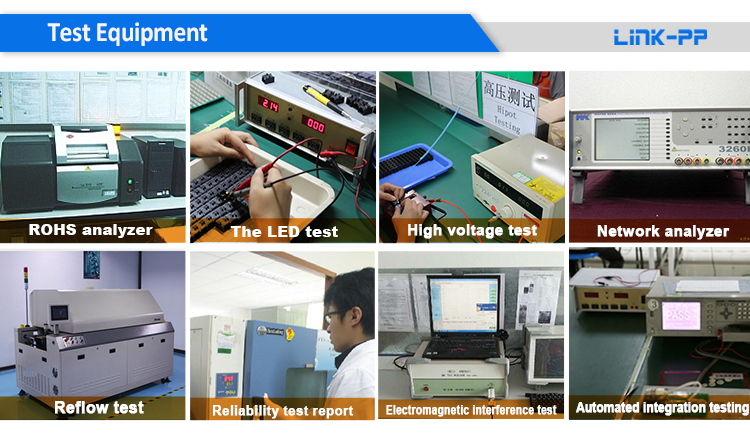

Production View 5
Production View 6
Final Product Showcase
FREQUENTLY ASKED QUESTIONS
What is the primary application for the LP6062ANL transformer?
This is a LAN transformer specifically designed for Ethernet applications, supporting PoE+ (Power over Ethernet) and 10/100/1000 Base-T speeds.
What is the operating temperature range for this component?
The LP6062ANL is designed to operate reliably in harsh environments with a temperature range of -40℃ to +85℃.
Is this transformer compatible with other industry parts?
Yes, it is cross-referenced and compatible with the Halo part number TG1G-S012NZRL.
How is the product packaged for shipping?
The units are supplied in Tape & Reel packaging, with 400 pieces per reel and 1600 pieces per standard shipping carton.
What are the mounting specifications for this 24-pin transformer?
It is a surface mount (SMD) device with 24 pins, making it suitable for automated PCB assembly processes.
What is the turns ratio for this model?
The LP6062ANL features a turns ratio of 1CT:1CT for both the receive (RX) and transmit (TX) channels.
