10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
1 / 5
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002

10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002

Send Inquiry

Product Description

Product Description
Product View 1
Product View 2
Specification
ItemValue
Place of OriginChina
Part NumberLP7011ANL
Cross ReferenceXF-GH-002
Transformer TypeLan Transformer
Application-LanEthernet(PoE)
Number of PortsSingle Port
Speed10G Base-T
PackageTape & Reel
Cores per Port8
PIN number24
Mounting TypeSurface Mount
Temperature-40℃ TO +85℃
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C,S
Packing & Delivery
Packing Details
Packaging Details:
• N.W/pcs: 0.004kg

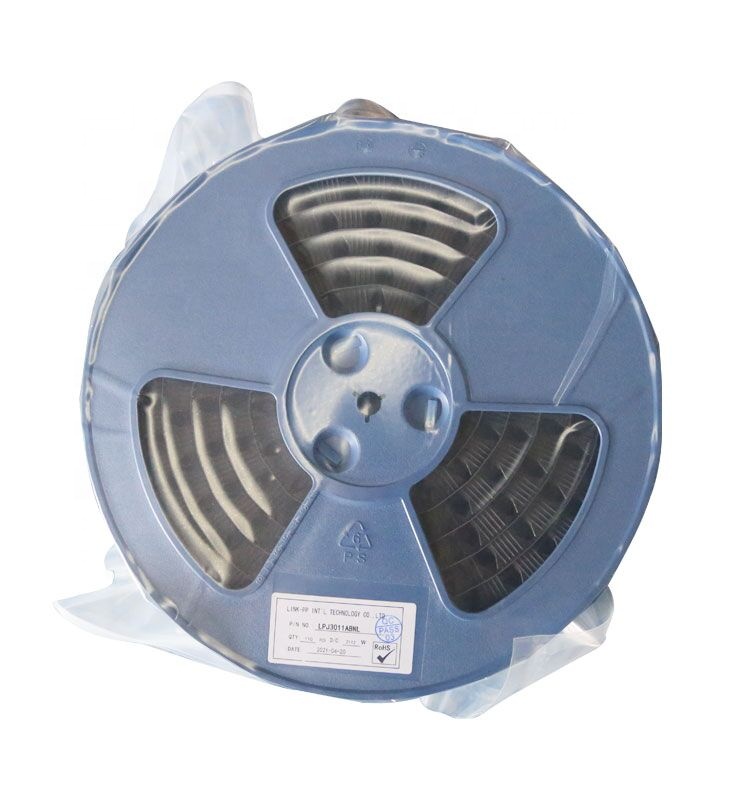

• Package: Reel (SPQ: 400pcs)
• Qty/carton: 1600pcs
• Carton size: 36*35.5*23cm
• G.W/carton: 5.9kg
Manufacturing Capability
Facility 1
Facility 2
Facility 3
Facility 4
Facility 5
Facility 6
Facility 7
As a specialized manufacturer of magnetic telecom and networking components, our facilities are certificated by ISO9001:2000, ROSH, REACH, CE and UL. We utilize advanced manufacturing facilities and test equipment imported from abroad. With a workforce of around 2000 staff and a monthly capacity of 3000K, we ensure professional solutions and strong technical support. Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, Mainboards, SDH, PDH, IP Phones, and xDSL modems.
  • 10/100/1000M/10G LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Frequently Asked Questions
What is the data transmission speed of the LP7011ANL transformer?
The LP7011ANL is designed for high-speed networking, supporting 10G Base-T Ethernet standards.
Does this component support Power over Ethernet (PoE)?
Yes, this LAN transformer is specifically designed for Ethernet (PoE) applications.
What is the operating temperature range for this device?
It is an industrial-grade component with an operating temperature range of -40℃ to +85℃.
What are the mounting requirements for this transformer?
This is a Surface Mount (SMD) type component with 24 pins, suitable for automated PCB assembly.
How is the product typically packaged for shipping?
The products are provided in Tape & Reel packaging, with 400 pieces per reel and 1600 pieces per standard carton.
What certifications do your manufacturing processes hold?
Our manufacturing processes are certificated by ISO9001:2000, and products comply with ROSH, REACH, CE, and UL standards.
