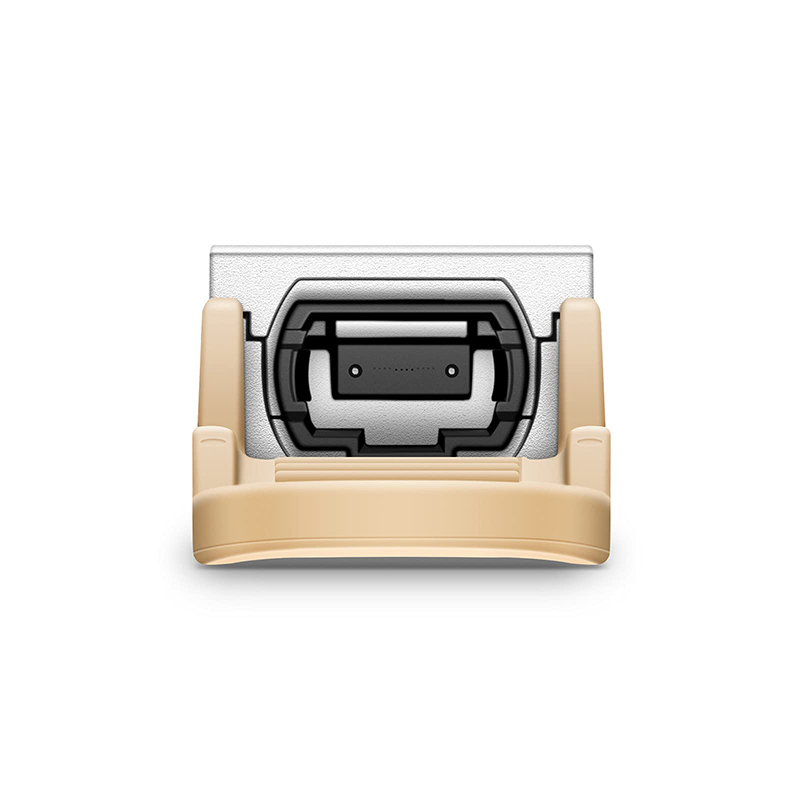

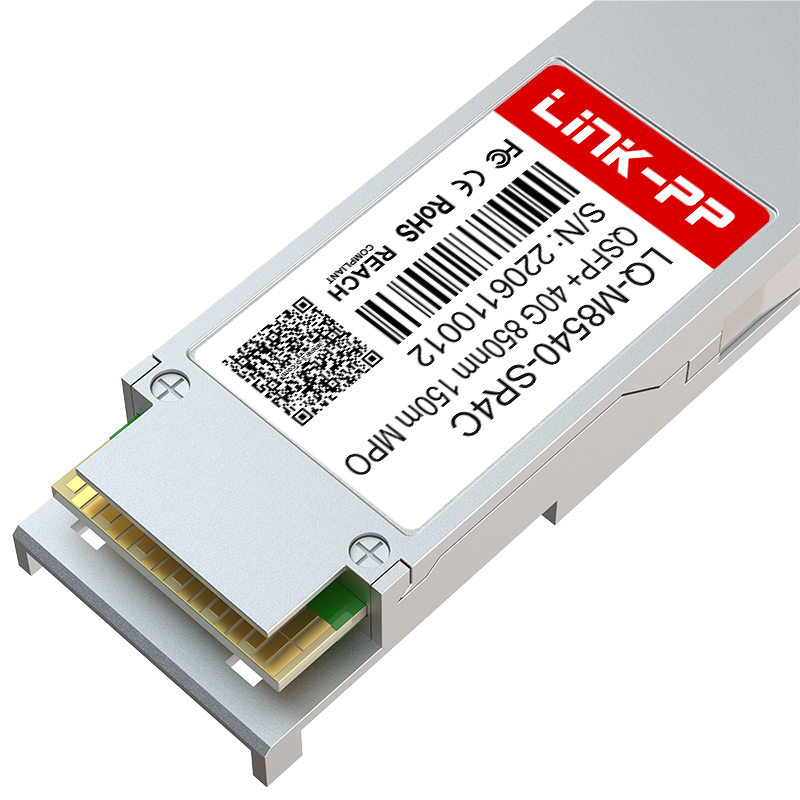

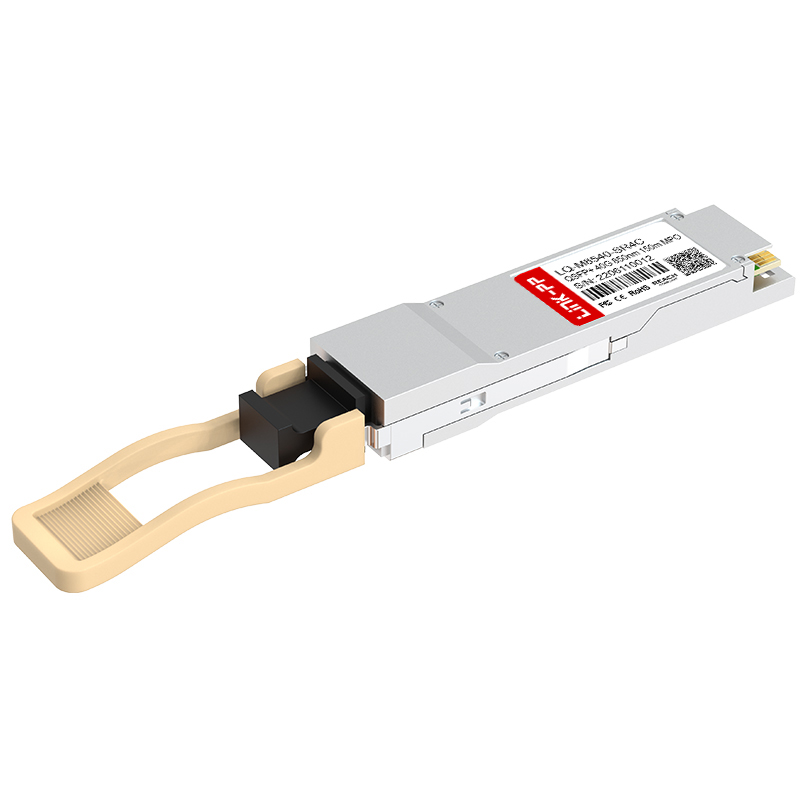

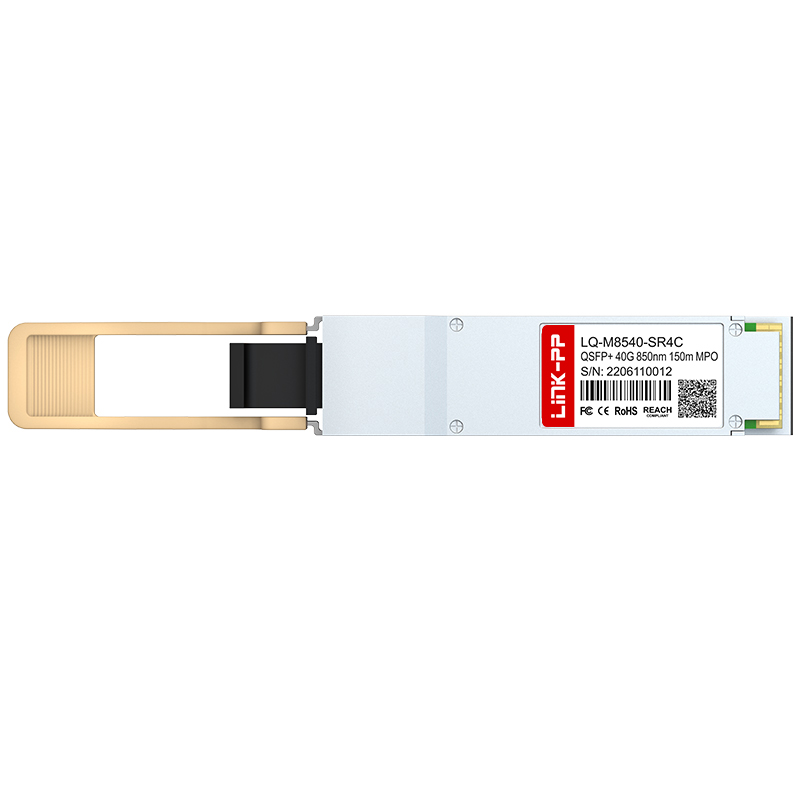

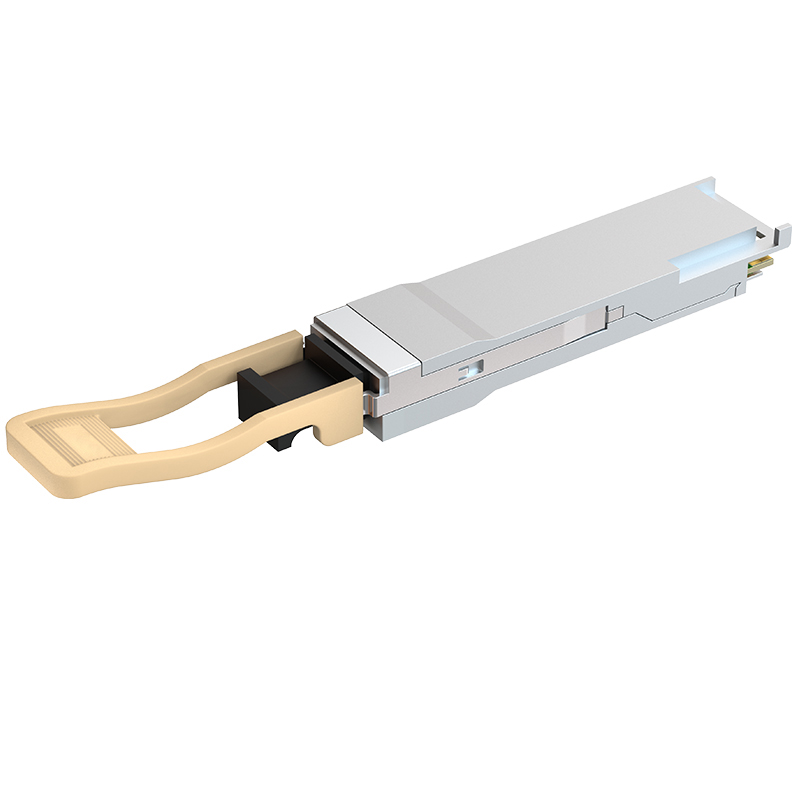

40GBASE-SR4 Multimode 850nm 40G QSFP+ 150m MMF Fiber Optic Transceiver Module

Product Description

40GBASE-SR4 Multimode 850nm 40G QSFP+ 150m MMF Fiber Optic Transceiver Module
Products Description
Item 40G QSFP+ Module
Part Status Active
Form Factor QSFP+
Max Data Rate 40G
Max Cable Distance 150m@OM4/100m@OM3
Wavelength 850NM
Connector MTP/MPO-12 Male
Media MMF
Optical Component VCSEL/PIN
TX Power -7.1~1.9dBm
Receiver Sensitivity <-10.3dBm
Receiver Overload 2.4dBm
Power Consumption <1.5W
DDM/DOM DDM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636
Warranty 5 Years
Sample Available
View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. Provides a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Transceiver Module Structure
Transceiver Details
Transceiver Ports View
Interactive Setup Display
Product Categorization Map
Network Applications
Optical Transport Networks
Optical Transport Networks
Can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
Wireless
Provides high reliability and performance products with mature and efficient lasers and mainstream chip solutions to customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
FTTx
Aiming at global communication network constructors, provides FTTx optical fiber access total solutions covering from all-optical or optical copper combined access solutions and products.
Subsystems
Subsystems
To ensure the normal operation of the communication line, provides the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Production Process View 1
Production Process View 2
