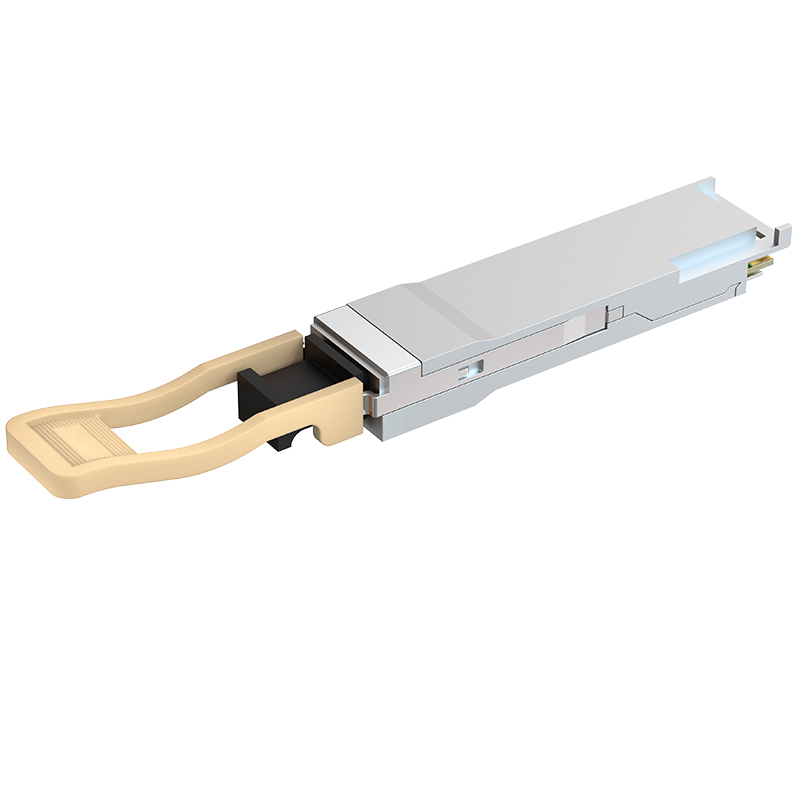

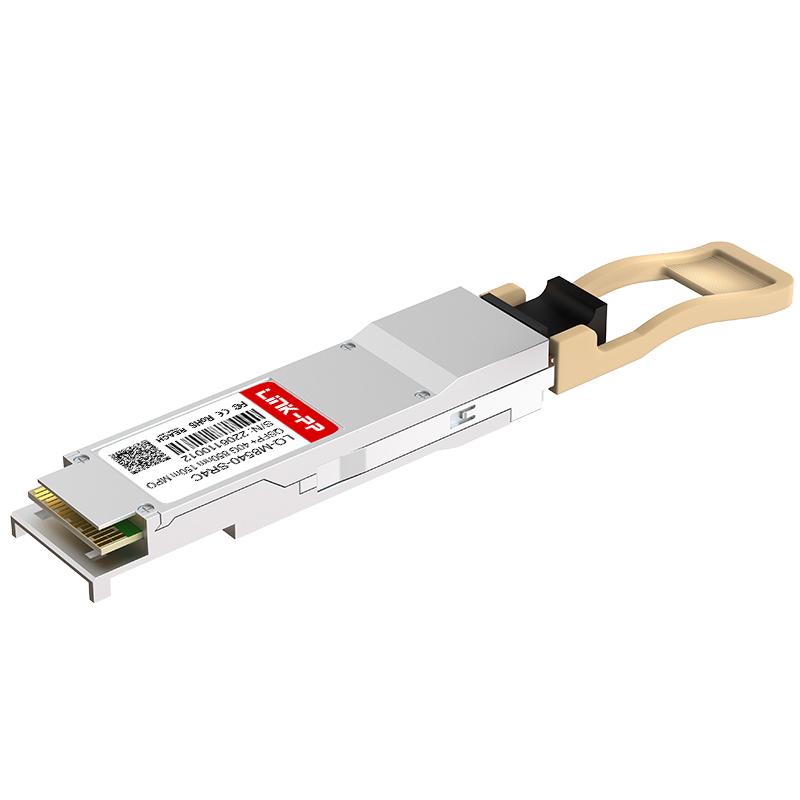

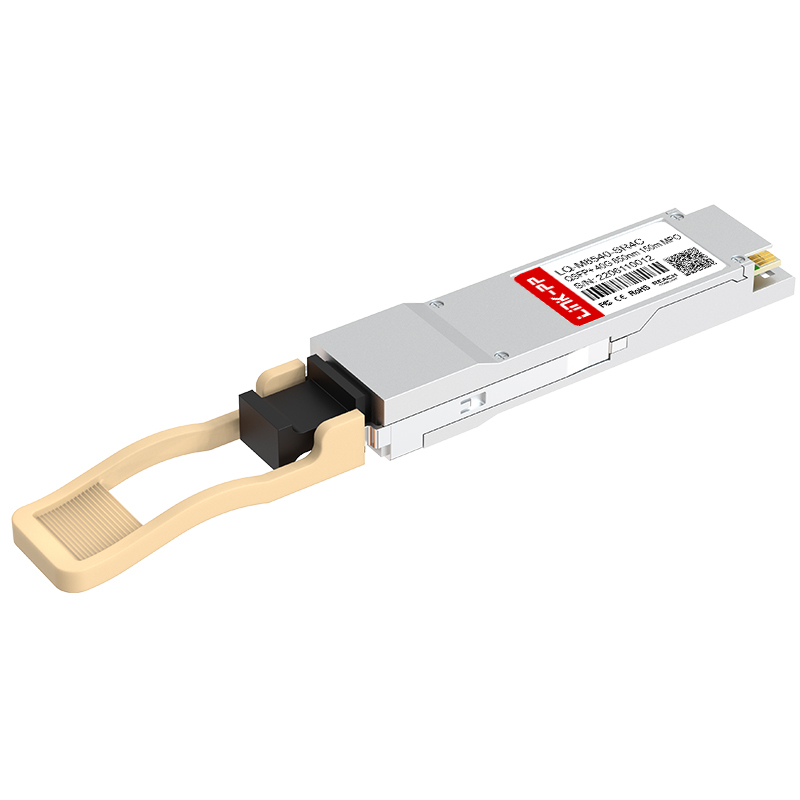

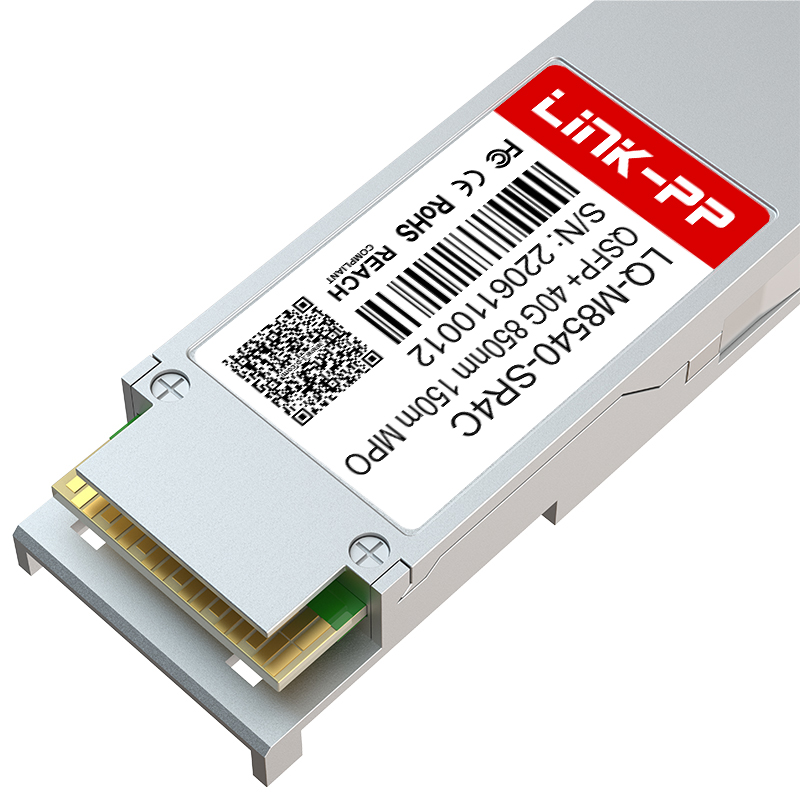

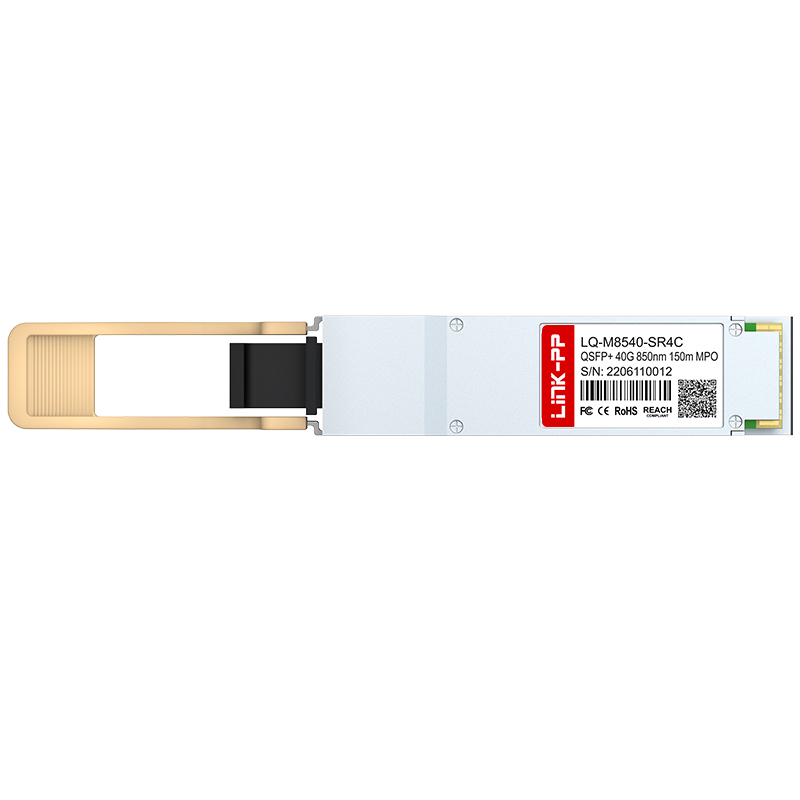

| Item | 40G Optical Modules |
| Replaceable Part | Cisco, HW, Arista, Juniper, Brocade, Intel, etc |
| Part Status | Active |
| Form Factor | QSFP+ |
| Max Data Rate | 41.25Gbps (4x 10.3125Gbps) |
| Wavelength | 850nm |
| Max Cable Distance | 150m@OM4/100m@OM3 |
| Media | MMF |
| Connector | MTP/MPO-12 Male |
| Optical Component | VCSEL/PIN |
| TX Power | -7.1~1.9dBm |
| Receiver Sensitivity | < -10.3dBm |
| Powerbudget | 3.5dB |
| Receiver Overload | 2.4dBm |
| Power Consumption | ≤1.5W |
| Extinction Ratio | >3dB |
| DDM | Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636 |
| Warranty | 5 Years |
| Sample | Available |
Drawing on over 10 years of experience in chips and modules, fast speeds, small size, power savings, and high performance are integrated into every module. A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
End-to-end DWDM devices are available with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR, etc.
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
High reliability and performance products are provided with mature and efficient lasers and mainstream chip solutions to global networks. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
Aiming at global communication network constructors, FTTx optical fiber access total solutions are provided, covering all-optical or optical copper combined access solutions and products.
To ensure the normal operation of the communication line, the optical cable O&M solution is provided, which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
