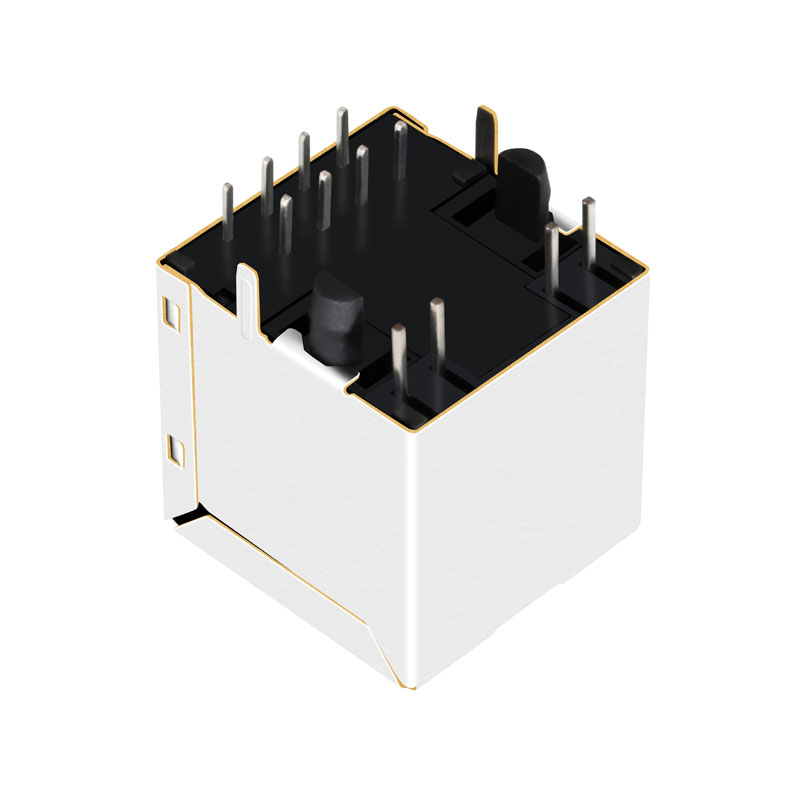

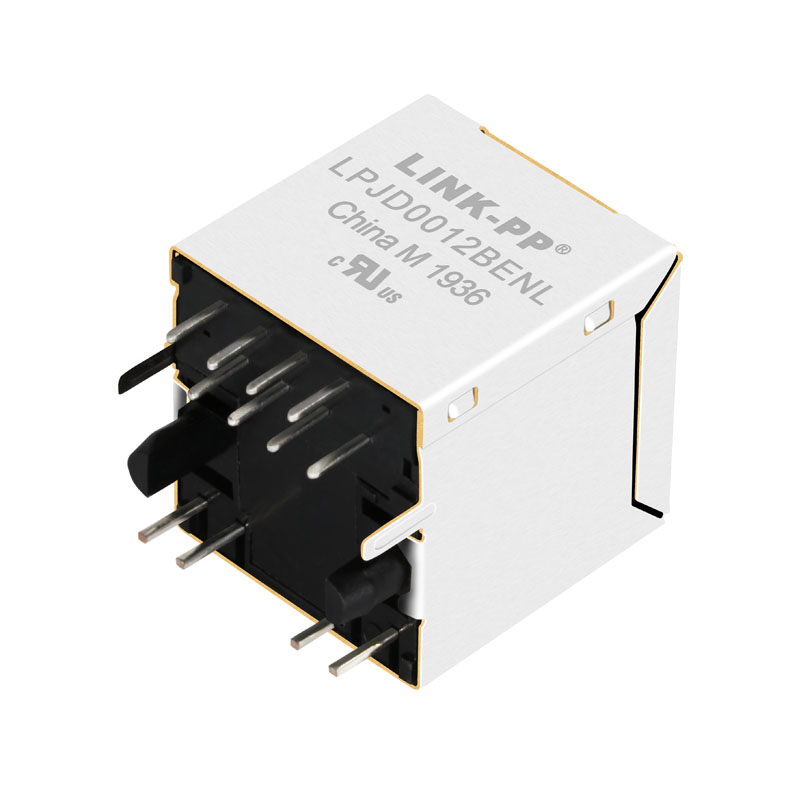

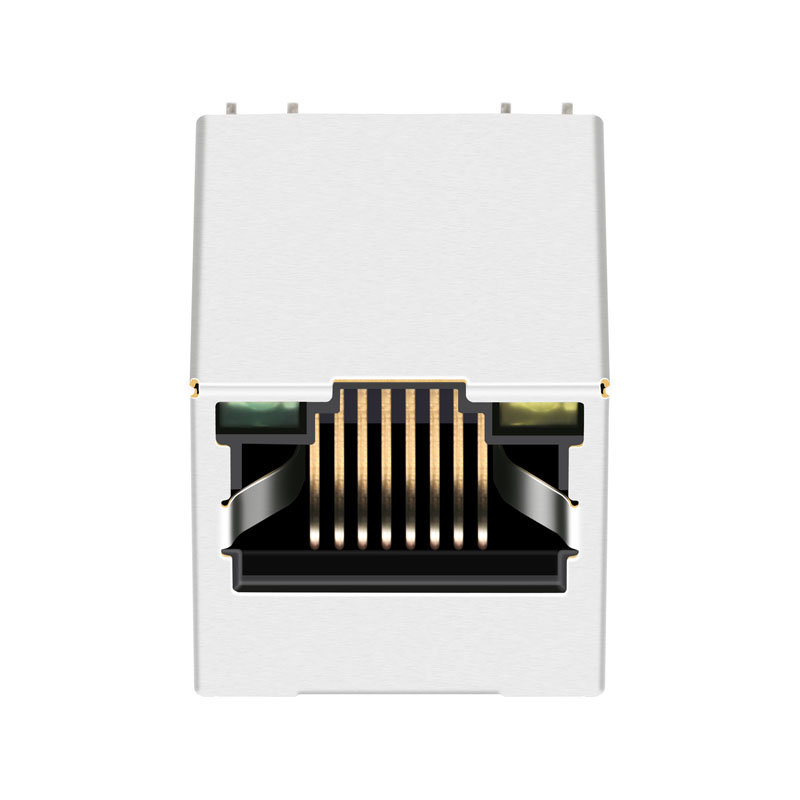

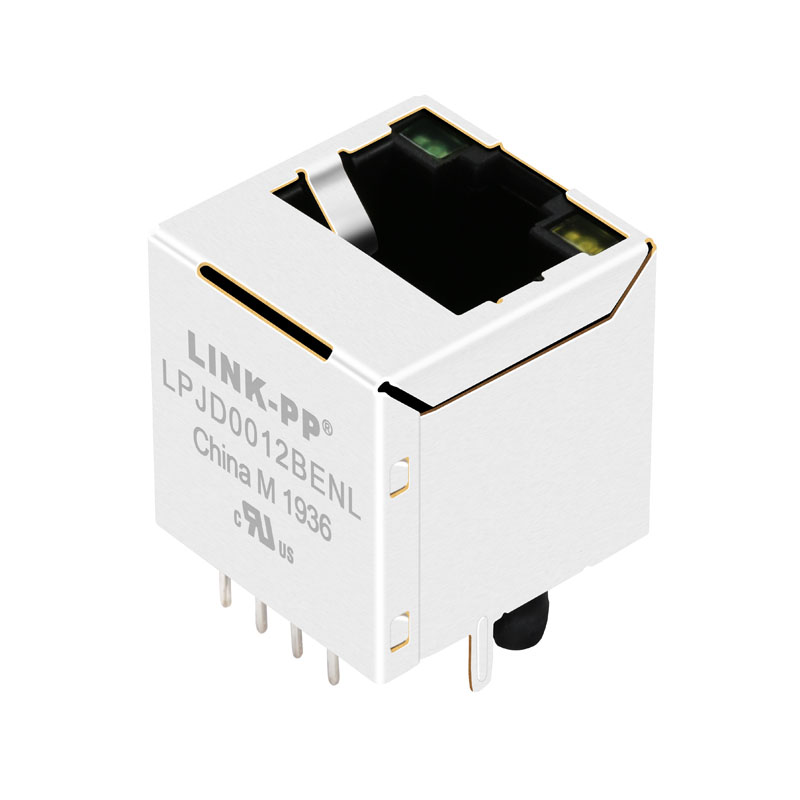

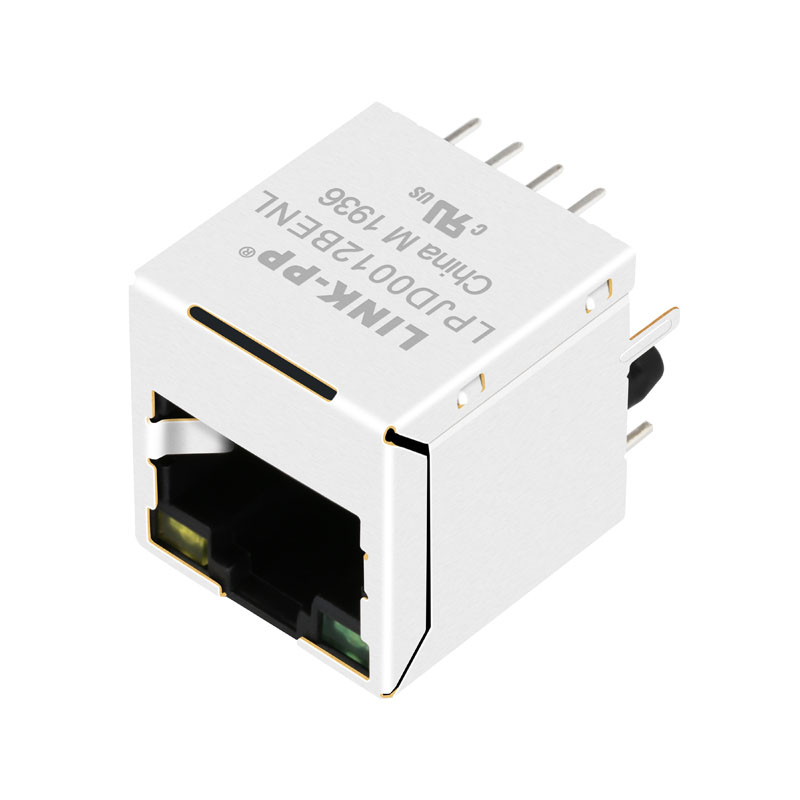

XRJV-01V-4-D12-380 Vertical Top Entry 10/100 Base-t Ethernet Magnetic RJ45 Jack With Leds
Products Description
Item
RJ45 Female Connector
Part Status
Active
Part Number
LPJD0012BENL
Number of Positions/Contacts
8p8c (RJ45, Ethernet)
Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 Port
Speed
10/100 Base-T
Cores per Port
4
Orientation
180° Angle (Right)
PCB Mount Angle
Top Entry
Shield EMI Tabs
Without
LED Option
With
PCB
FR4
PCB Retaining Post
T POST
Temperature
0℃ TO 70℃
Bst Circuit
Yes
AutomDX
Yes
Contact Mating Area Plating
GOLD 6u"/15u"/30u"
Turns Ratio RX/TX
1CT:1CT
Configuration RX/TX
T,C
