Tyco 1840718-6 RJ45 Connector Modular Jack With Magnetics
Tyco 1840718-6 RJ45 Connector Modular Jack With Magnetics
Tyco 1840718-6 RJ45 Connector Modular Jack With Magnetics
Tyco 1840718-6 RJ45 Connector Modular Jack With Magnetics
Tyco 1840718-6 RJ45 Connector Modular Jack With Magnetics
1 / 5
Tyco 1840718-6 RJ45 Connector Modular Jack With Magnetics
Tyco 1840718-6 RJ45 Connector Modular Jack With Magnetics
Tyco 1840718-6 RJ45 Connector Modular Jack With Magnetics
Tyco 1840718-6 RJ45 Connector Modular Jack With Magnetics
Tyco 1840718-6 RJ45 Connector Modular Jack With Magnetics

Tyco 1840718-6 RJ45 Connector Modular Jack With Magnetics

Send Inquiry

Product Description

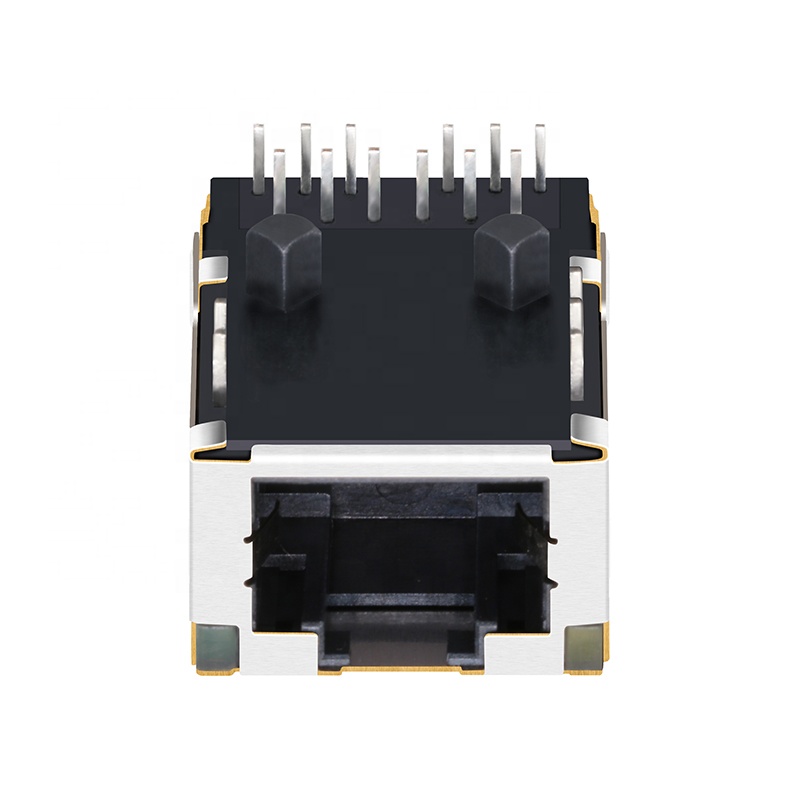

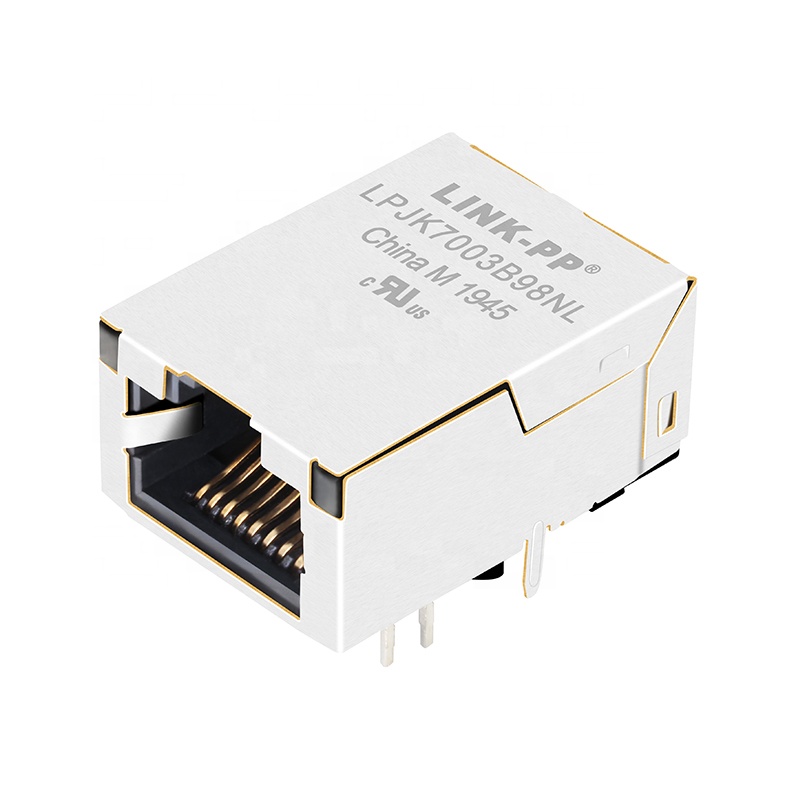

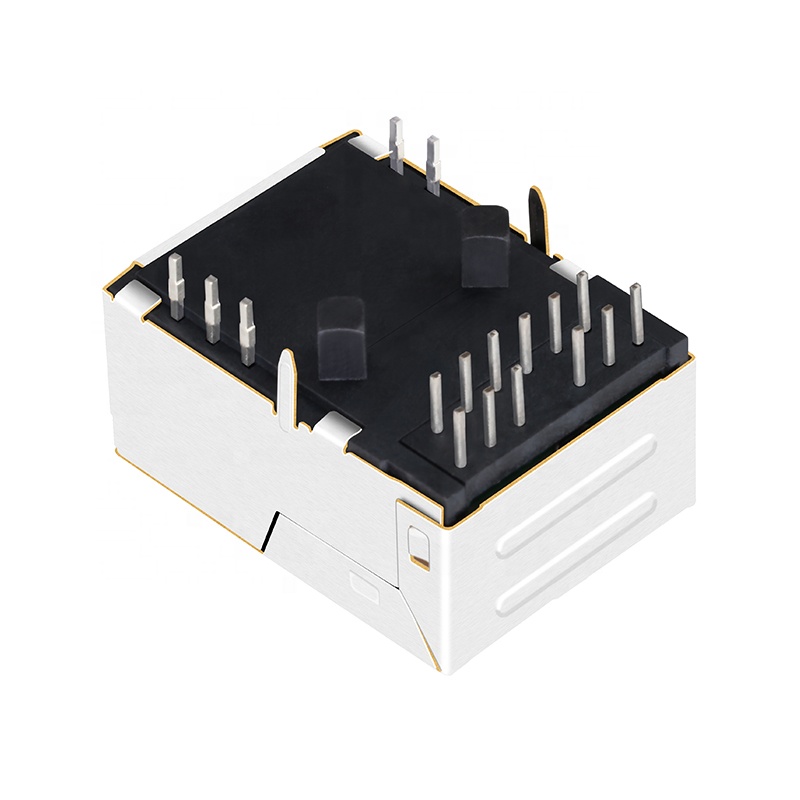

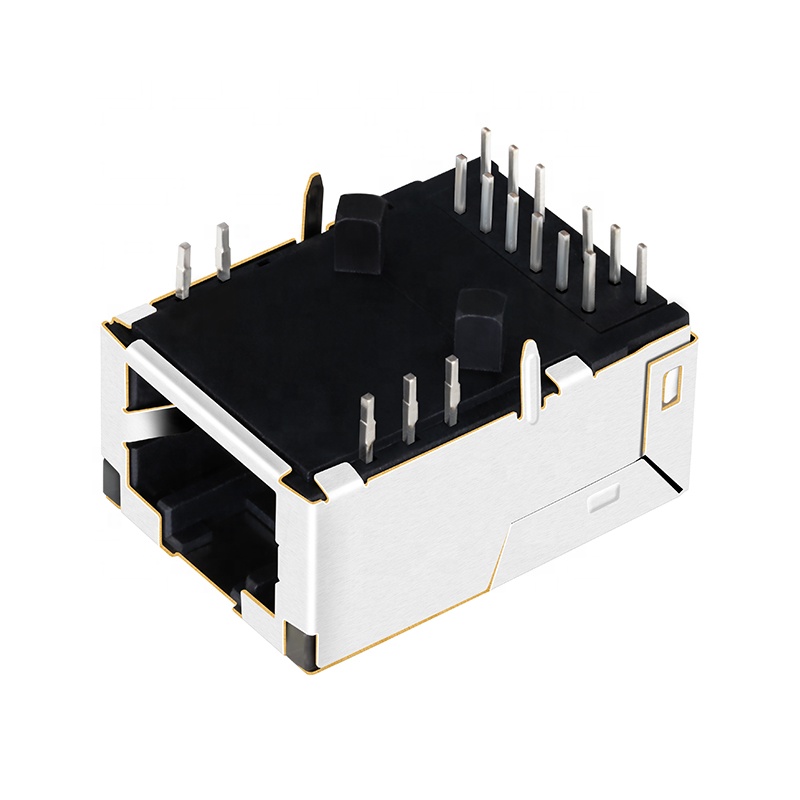

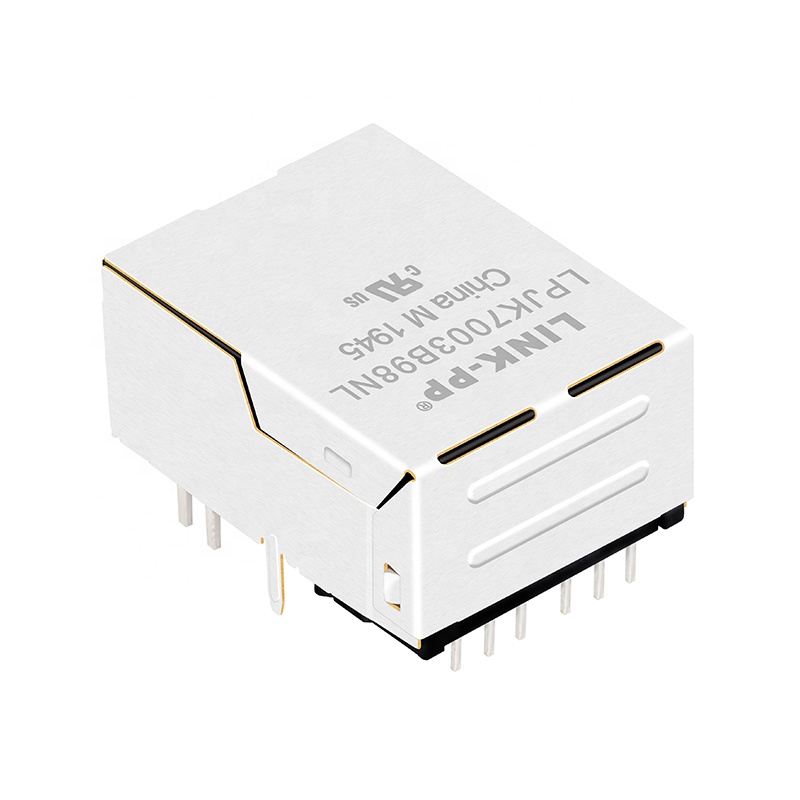

Tyco 1840718-6 RJ45 Connector Modular Jack With Magnetics
Tyco 1840718-6 RJ45 Connector Modular Jack With Magnetics
Products Description
Item RJ45 Female Connector
Part Number LPJK7003B98NL
Compatible With 1840718-6
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃ / -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Connector Detail RJ45 Series Showcase
Connector Dimensions Diagram Connector Schematic Drawing PCB Layout Recommendation
Quality Management Process Production Process Inspection Testing Equipment Setup
Product Packaging and Shipping
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components, featuring an extensive line of state-of-the-art catalog products as well as custom capabilities.
We operate as a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, serving more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a leading provider of Ethernet RJ45 connectors and LAN transformers.
