Low-Profile RJ-45 Connector L840-1JX1-43 L837-1X1T-43 L8AD-1E1T-BF L834-1X1T-43

Product Description

Low-Profile RJ-45 Connector Overview
Low-Profile RJ-45 Connector L840-1JX1-43 L837-1X1T-43 L8AD-1E1T-BF L834-1X1T-43
Products Description
Item RJ45 Female Connector
Part Number L840-1JX1-43 L837-1X1T-43 L8AD-1E1T-BF L834-1X1T-43
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 8
Orientation 90° Angle (Right)
PCB Mount Angle Side Entry
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T Post
Temperature 0°C to 70°C
Bst Circuit Yes
AutoMDIX Yes
Contact Mating Area Plating Gold 6u" / 15u" / 30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C

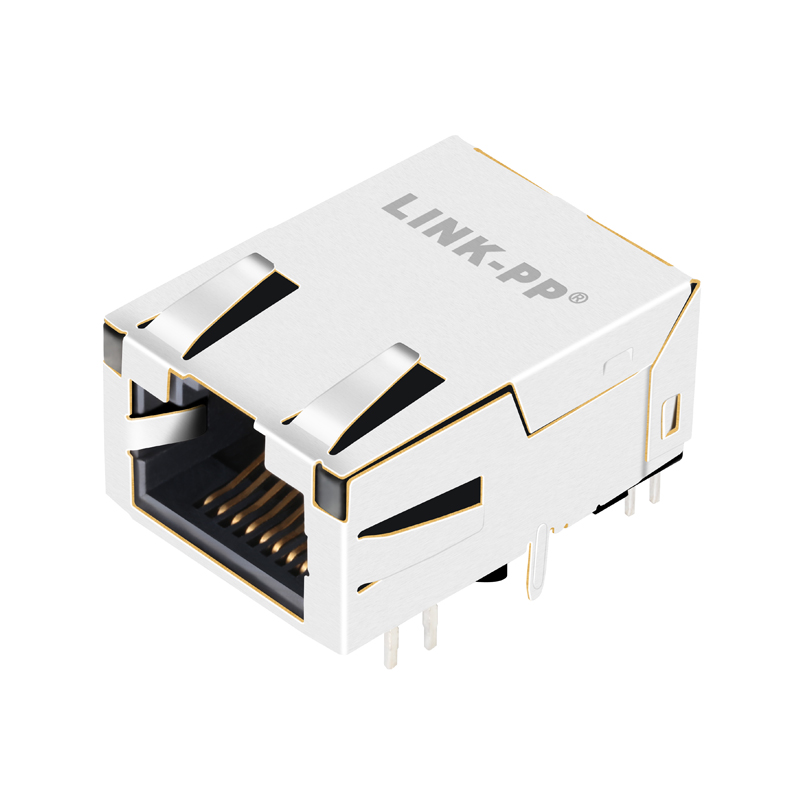

RJ45 Connector Side View

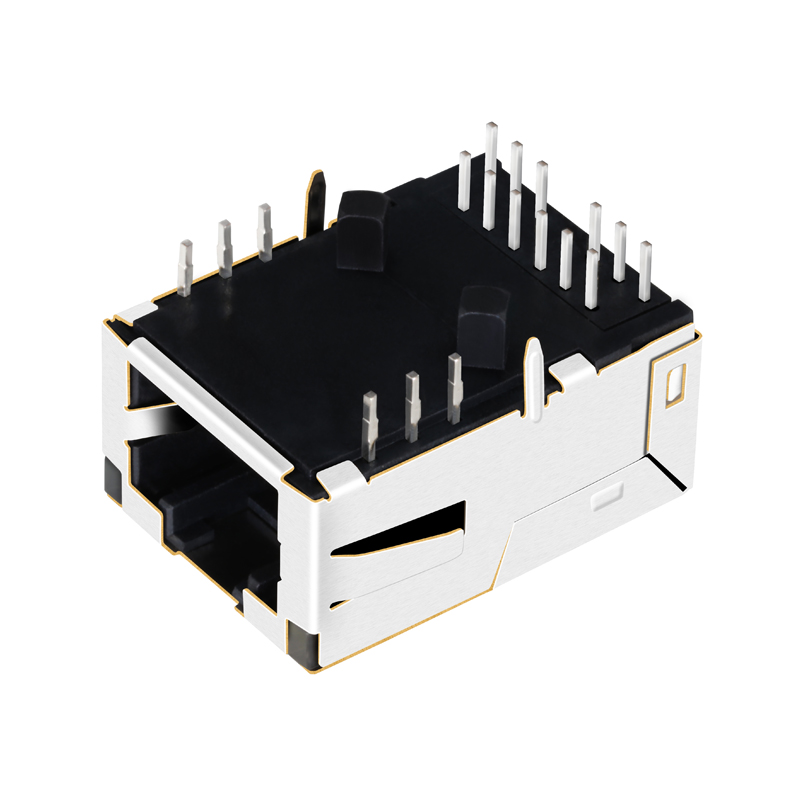

RJ45 Connector Top View

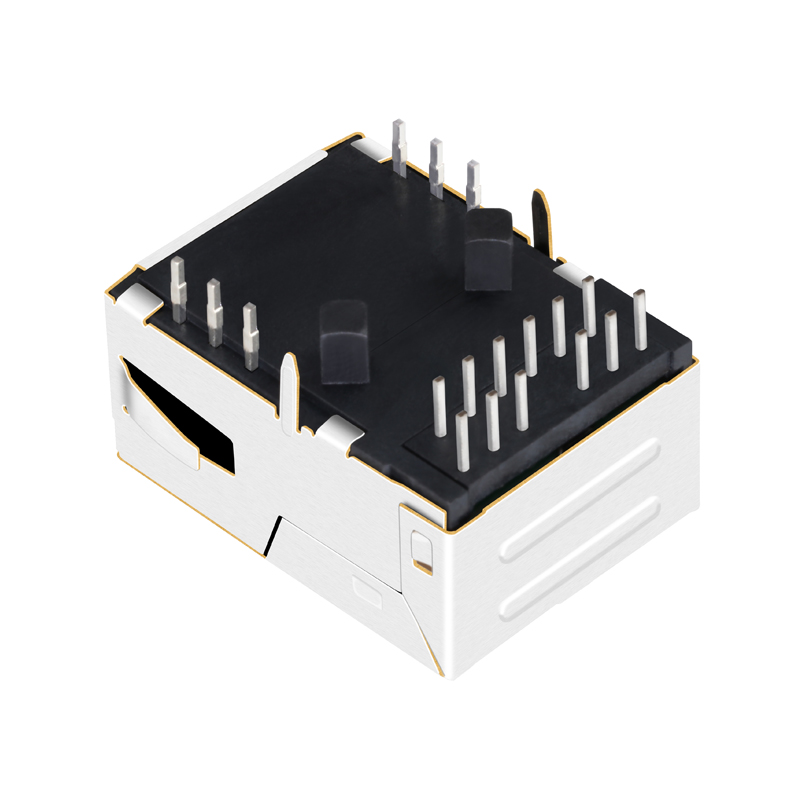

RJ45 Variant 1

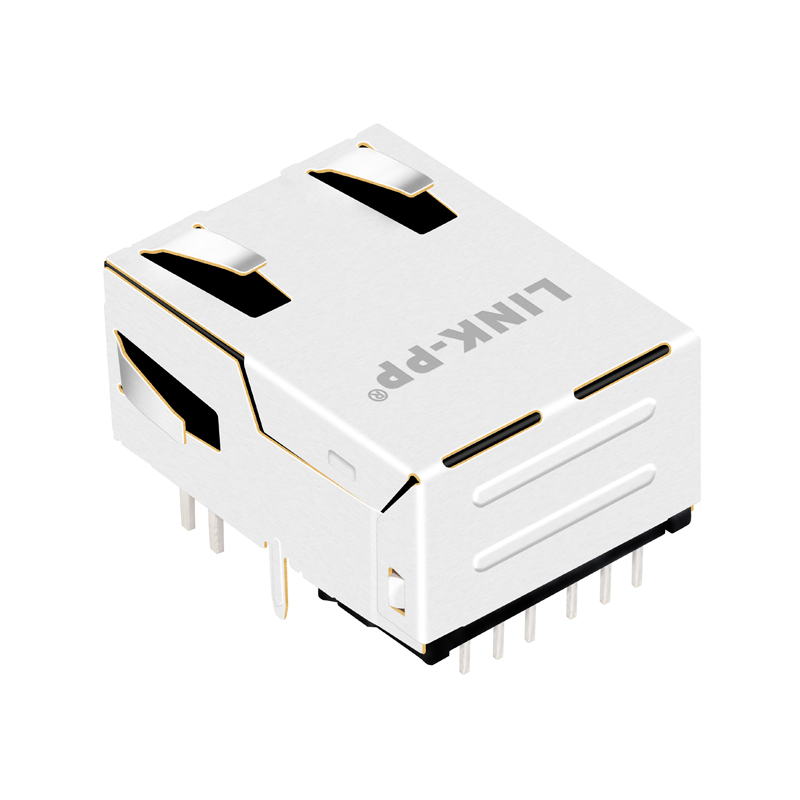

RJ45 Variant 2

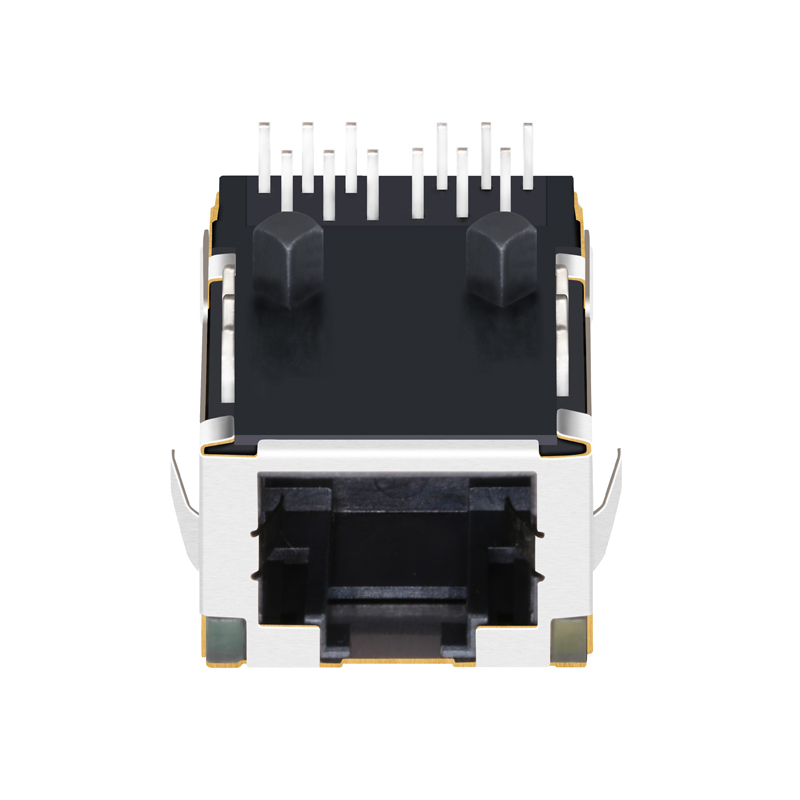

RJ45 Variant 3
RJ45 Variant 4
Product Categories Grid
Technical Layout Dimensions
Circuit Schematics
PCB Footprint Dimensions
Connector Specifications Drawing 1
Connector Specifications Drawing 2
Connector Specifications Drawing 3
