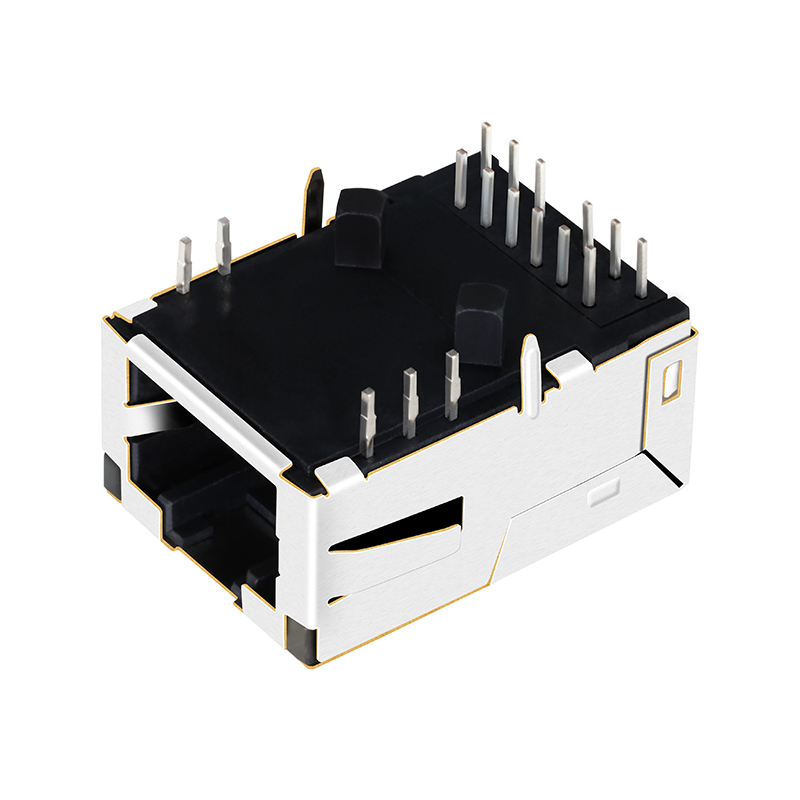

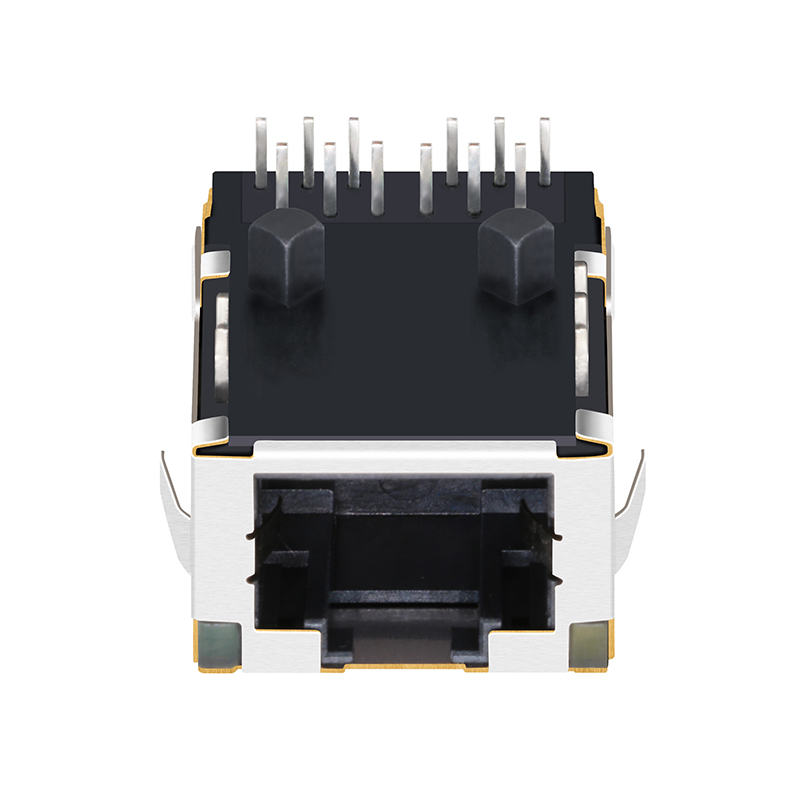

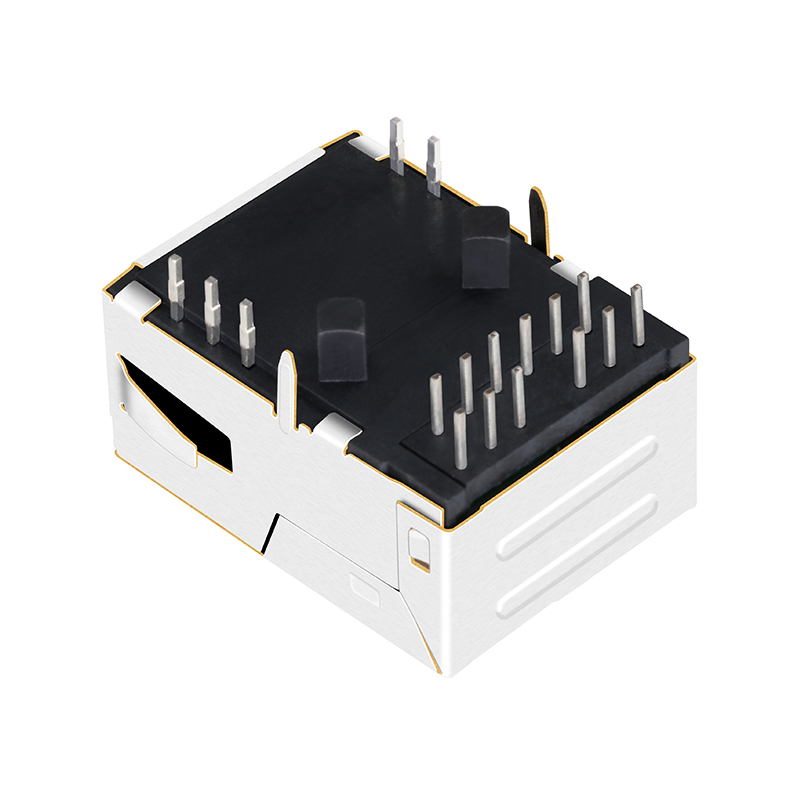

J0G-0001NL 10/100/1000 Base-t Tab up Ethernet Low Profile RJ45 Connector With Leds
J0G-0001NL 10/100/1000 Base-t Tab up Ethernet Low Profile RJ45 Connector With Leds
J0G-0001NL 10/100/1000 Base-t Tab up Ethernet Low Profile RJ45 Connector With Leds
J0G-0001NL 10/100/1000 Base-t Tab up Ethernet Low Profile RJ45 Connector With Leds
J0G-0001NL 10/100/1000 Base-t Tab up Ethernet Low Profile RJ45 Connector With Leds
1 / 5
J0G-0001NL 10/100/1000 Base-t Tab up Ethernet Low Profile RJ45 Connector With Leds
J0G-0001NL 10/100/1000 Base-t Tab up Ethernet Low Profile RJ45 Connector With Leds
J0G-0001NL 10/100/1000 Base-t Tab up Ethernet Low Profile RJ45 Connector With Leds
J0G-0001NL 10/100/1000 Base-t Tab up Ethernet Low Profile RJ45 Connector With Leds
J0G-0001NL 10/100/1000 Base-t Tab up Ethernet Low Profile RJ45 Connector With Leds

J0G-0001NL 10/100/1000 Base-t Tab up Ethernet Low Profile RJ45 Connector With Leds

Send Inquiry

Product Description

Ethernet RJ45 Connector
J0G-0001NL 10/100/1000 Base-t Tab Up Ethernet Low Profile RJ45 Connector With Leds
Products Description
Item RJ45 Female Connector
Part Number LPJK7003A98NL
Compatible With J0G-0001NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Up
Cores per Port 8
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option With
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Connector Detail View
Products Range Overview
Product Categorization Grid
Product Specification Diagram 1
Product Specification Diagram 2
RJ45 Parameter Sheet
RJ45 Interface View
RJ45 Connection Layout
Performance Testing Graph
Product Quality Verification
Company Profile
Established in 1997, is a professional designer and Manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities. We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers and CEMs, supplying more than 10000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Factory Facility View
Production Line View
Quality Control Room
FAQ
Q Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
Q What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production.
Q What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
Q Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
Q What is your advantage?
19 years of production experience and we have been a partner of Intel and Jabil for many years.
