Product Description

Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2
Shielded Magnetic Dual Ports RJ-45 Connector Banner

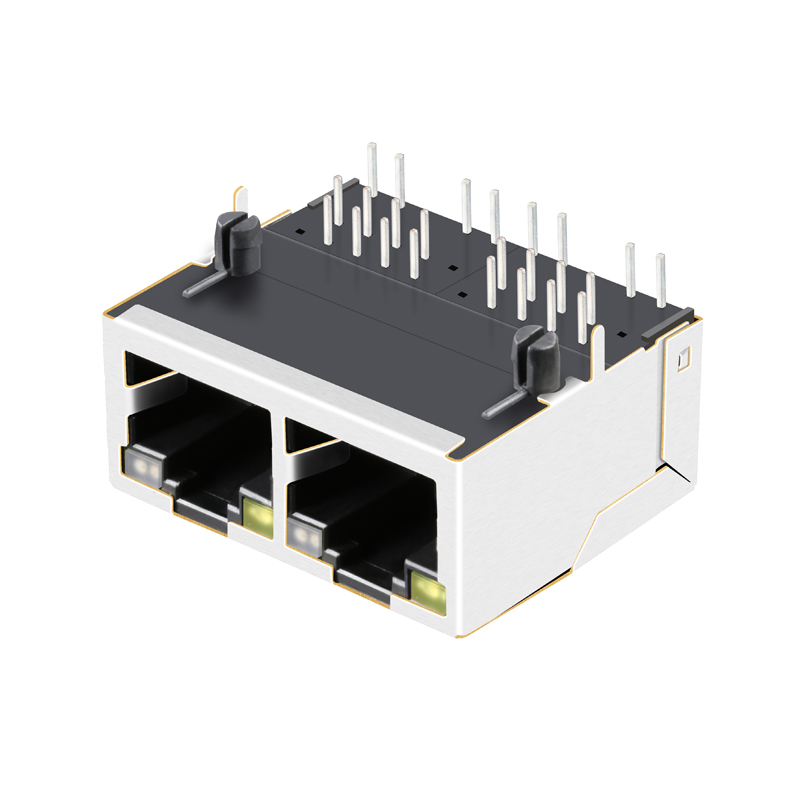

Shielded Magnetic Dual Ports RJ-45 Connector View 1

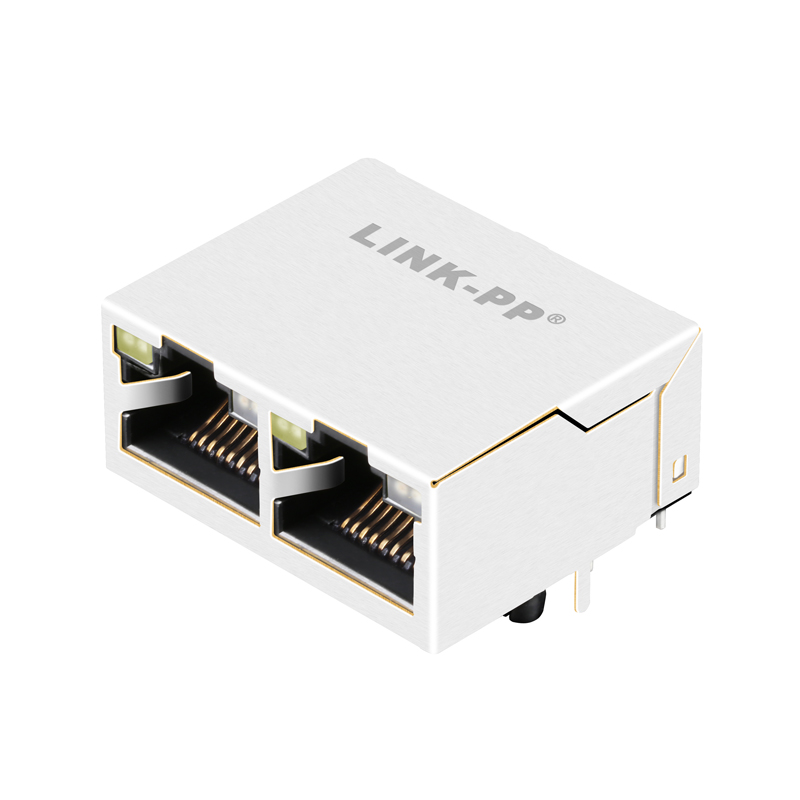

Shielded Magnetic Dual Ports RJ-45 Connector View 2
Specification Banner
Part Number 1840538-3 6610128-1 1840538-4 1840538-2
Application-LAN ETHERNET (Non-PoE)
AutoMDIX YES
Bst Circuit YES
Configuration RX T, C
Configuration TX T, C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores Per Port 6
Diodes NO DIODES
LED Option GREEN/GREEN
Latch UP
Number of Ports 1x2
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Shielding Shielded
Speed 10/100 Base-T
Temperature 0 ~ 70℃
Turns Ratio RX 1CT:1
Turns Ratio TX 1CT:1
Shielded Magnetic Dual Ports RJ-45 Connector Diagram
Technical Drawing Dimensions
Product Quality Verification
Product Testing Process
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
  • ISO 9001:2008
  • UL Certification
  • Reach Certification
  • RoHS Compliance
  • Active Environmental Policy
100% Guarantee Quality
  • Manufactured Under Strict Controls
  • 100% Tested (Not Just Batch Tested)
  • Quality Guarantee: 6 Years
Competitive Price & Service
  • Highly Competitive Pricing
  • Delivery Time: 2-3 Weeks After Orders
  • Free Samples Available
  • Custom Designs Available
  • 90% Off Shipping Cost By DHL, UPS, FEDEX, or TNT
EMI Shielding Finger Spec Banner
Dual Port Product Features
Dual Port Product Dimension Layout
Shielded Magnetic Qual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2
Frequently Asked Questions
What is the primary application of this Shielded RJ-45 Connector?
This connector is designed for standard Ethernet applications (Non-PoE) with support for 10/100 Base-T transmission speeds.
Does this product support AutoMDIX and feature BST circuits?
Yes, both AutoMDIX and BST circuit options are fully supported as specified in the configuration table.
What certification standards do your RJ-45 Connectors meet?
Our manufacturing process complies with ISO 9001:2008, UL Certification, Reach Certification, and RoHS Compliance to guarantee top industry standards.
What is the standard warranty period and quality assurance?
We provide a 100% tested quality assurance process (not just batch testing) and offer a 6-year quality guarantee.
Can I get samples before placing a bulk order?
Yes, free samples are available to help you evaluate and verify the connectors for your specific layout and designs.
What is the typical lead time for production and delivery?
The standard production lead time is 2-3 weeks after order confirmation, with fast worldwide shipping options available.
