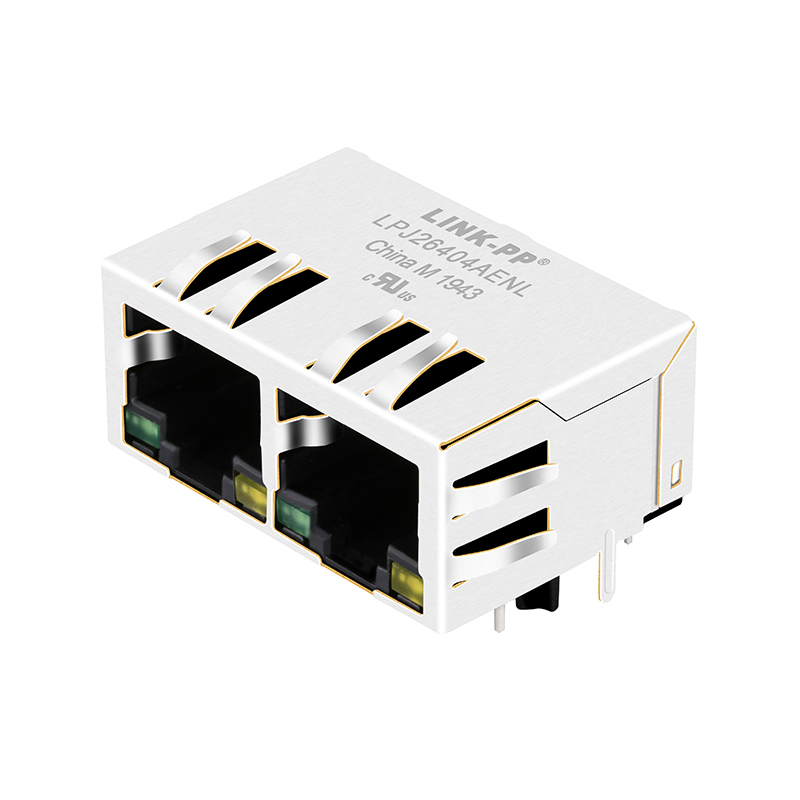

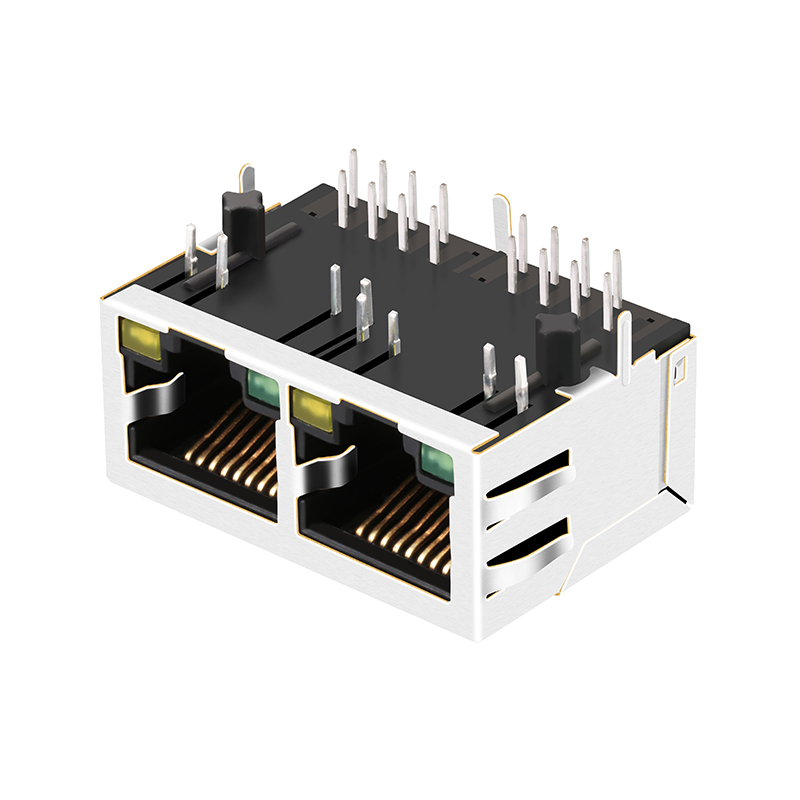

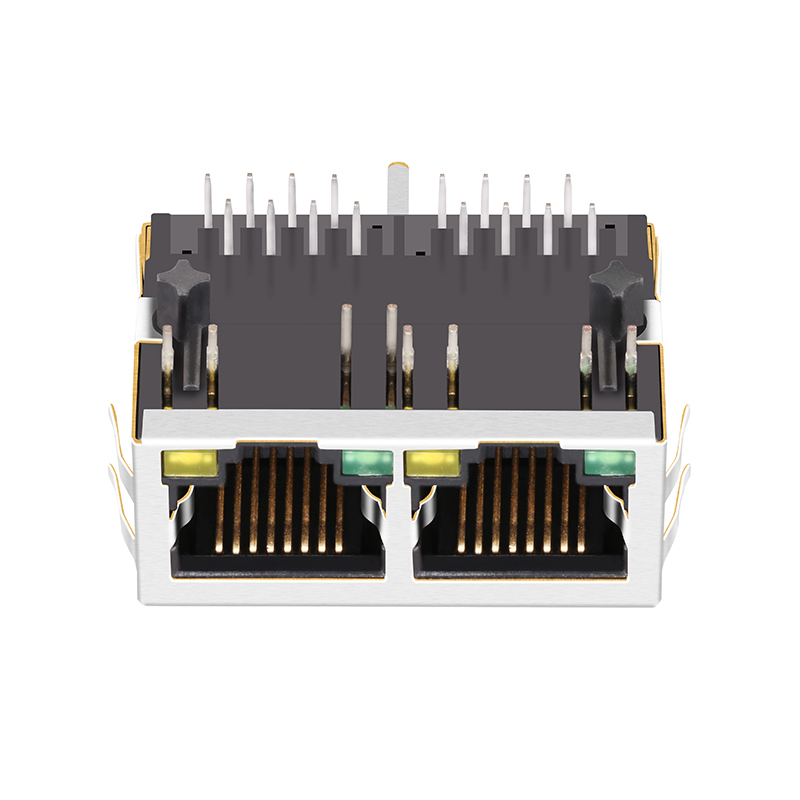

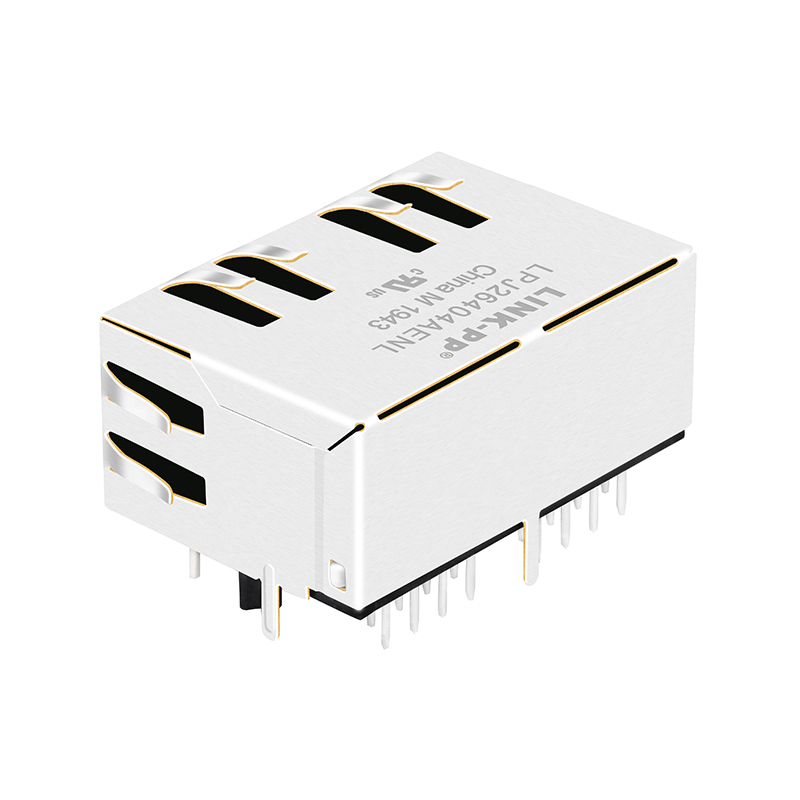

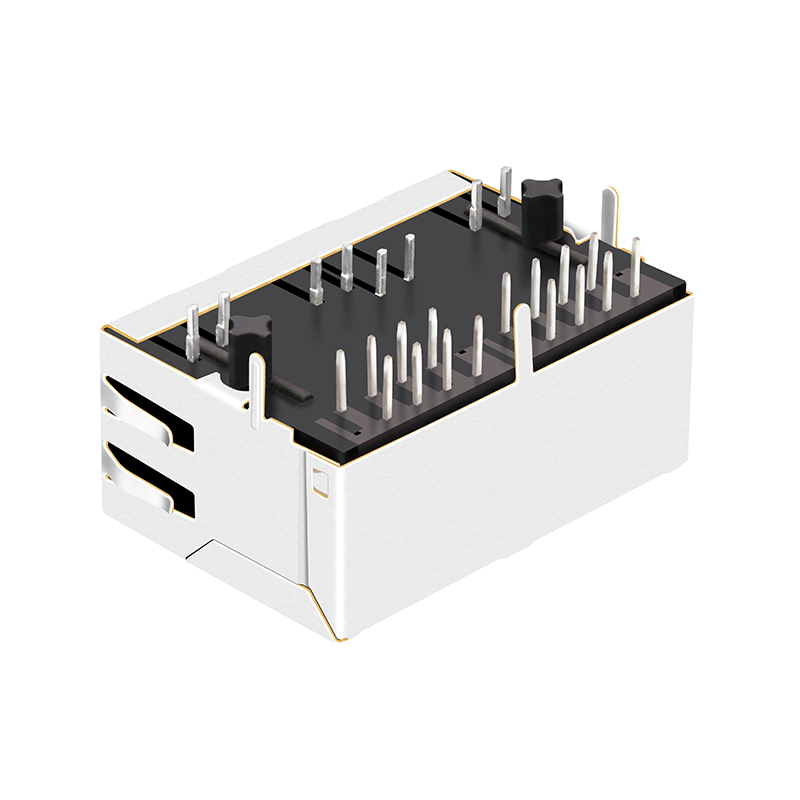

JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack

Product Description

Product Display 1
Product Display 2
Specification
Item Value
LINK-PP Part Number LPJ26404AENL
Pulse Part Number JXD0-2005NL / JXR8-1001NL
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(Non_PoE)
Speed 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green/Yellow Led
Number of Cores per Jack 4
Shielding Shielded, Emi Finger
Number of Ports 1x2 Port
Features Board Guide
Tab Direction Down
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C
Details 1
Details 2
Details 3
Details 4
Details 5
Details 6
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipments imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components and strong technical support. Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem.
Main Products
  • 10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Manufacturing Area 1
Manufacturing Area 2
Manufacturing Area 3
FAQ
Are you a manufacturer or trade company?
We are a manufacturer that specialized in RJ45 connectors and LAN Transformer for more than 23 years.
Can I get some samples?
Yes, 3-5 pcs free samples are available for your test. Small batches are also acceptable.
Is OEM service available?
Yes. We have rich experience and good ability to put your design and idea into real products, and we can laser print your brand on the products.
How about the lead time?
We have a very professional team with high quality, usually we can ship within 30 days. For further details, please reach out to us.
What quality standards and certifications do you have?
Our manufacturing processes and products are certified by ISO9001:2000, RoHS, REACH, CE, and UL, ensuring international grade reliability.
What applications are your magnetic telecom components used for?
Our products are widely utilized in HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.
