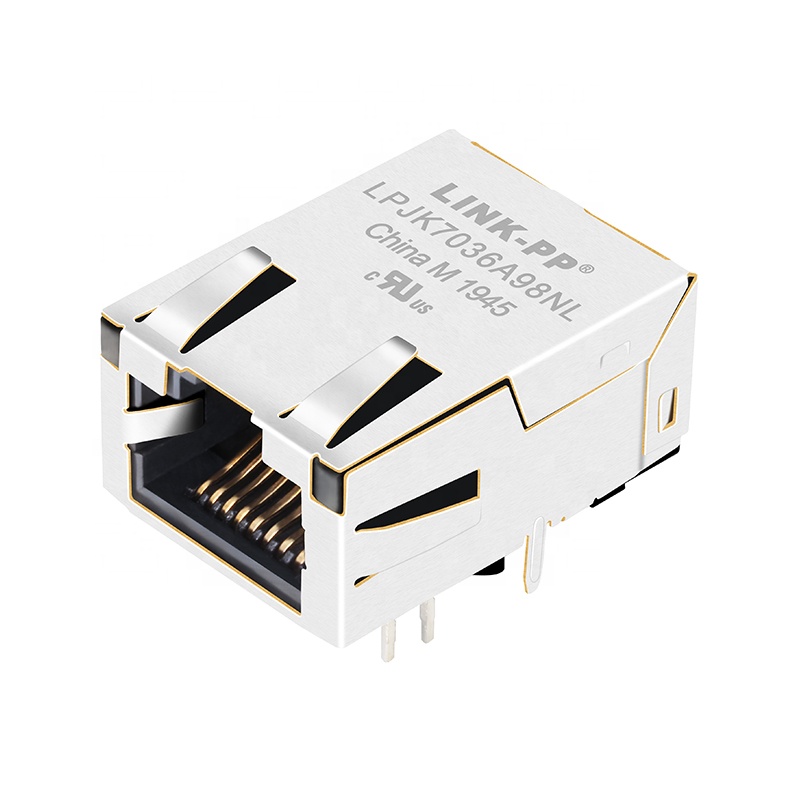

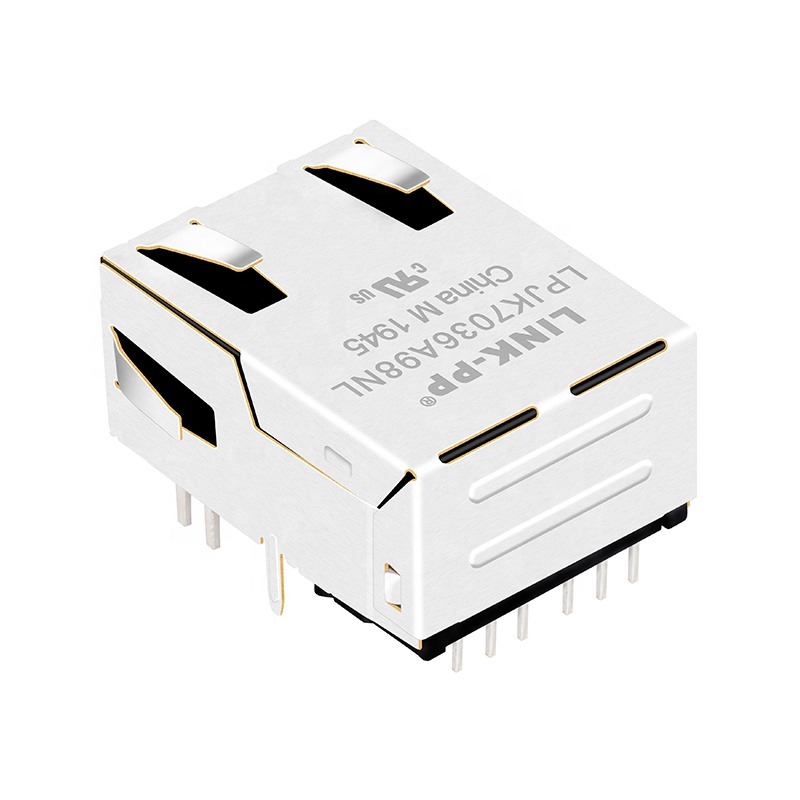

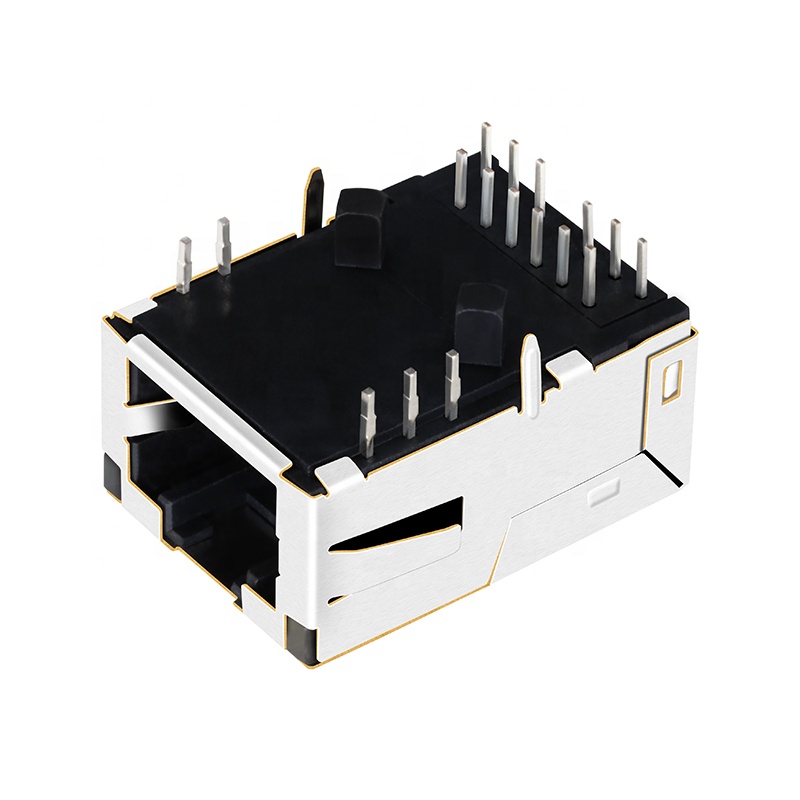

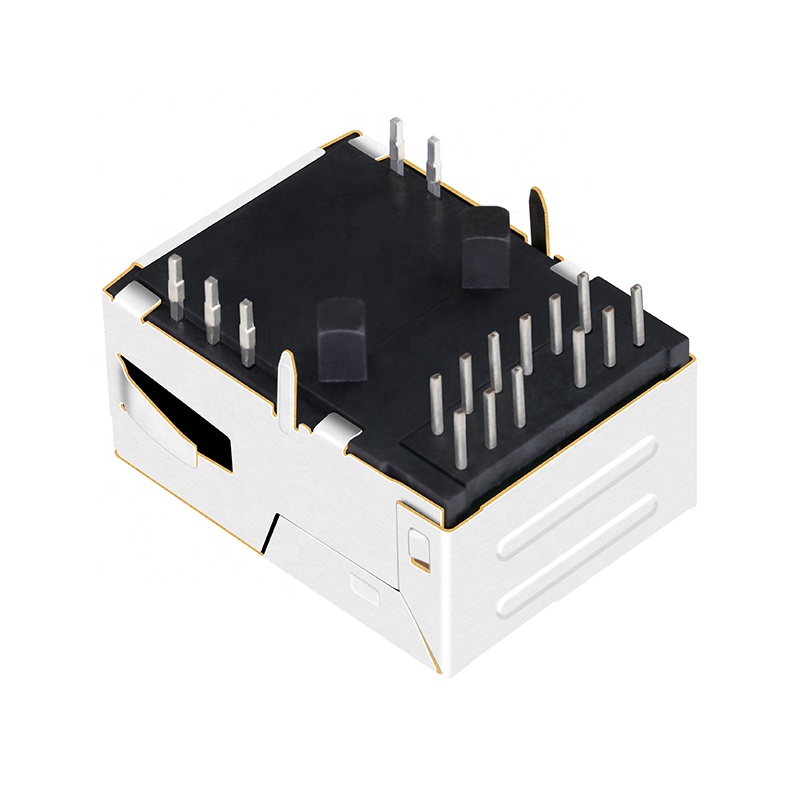

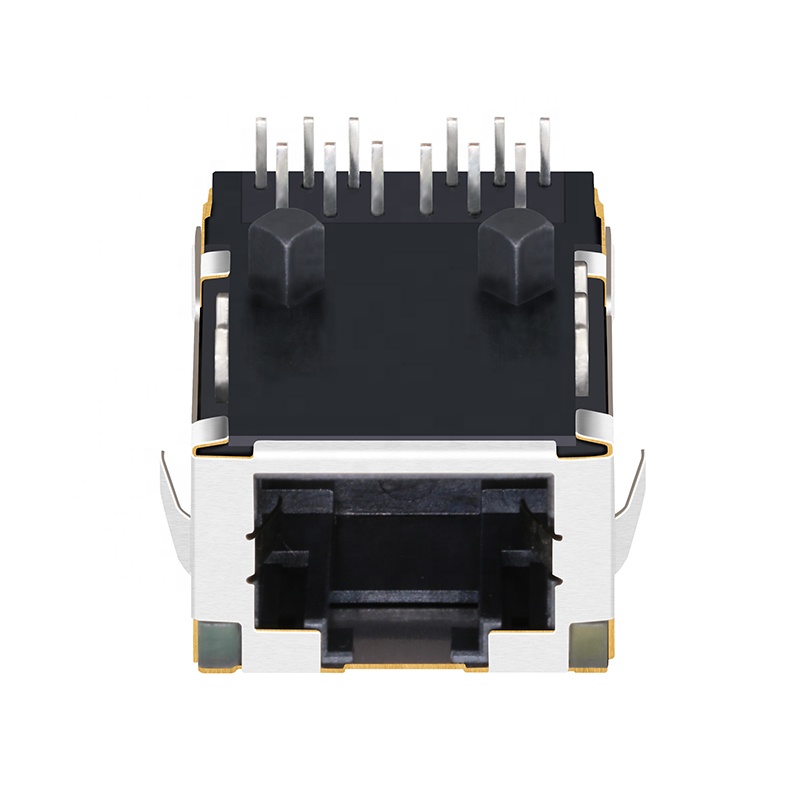

With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
1 / 5
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector

With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector

Send Inquiry

Product Description

With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
RJ45 Connector Overview
Products Description
Item RJ45 Female Connector
Part Number LPJK7036A98NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Structure Detail
Product Categories Grid
Dimensions Reference
Testing Procedures
Manufacturing Details
Quality Standard Control
Application Environments
Product Compliance
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components, offering an extensive line of state-of-the-art catalog products as well as custom capabilities. As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers in over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer supplier.
Production Facility Layout
Automated Assembly Lines
Warehouse and Logistics
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should cover the shipping fee.
3. What is your delivery time?
We have items ready to ship from stock, and it takes 15-30 days for mass production of standard orders.
4. What after-service can you offer?
We offer a one-year guarantee period along with 24-hour technical support online.
5. Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM customized requests. Please send us your specifications to start our detailed discussion.
6. What is your advantage?
We have over 19 years of professional production experience and have been a trusted partner of major global tech companies for many years.
