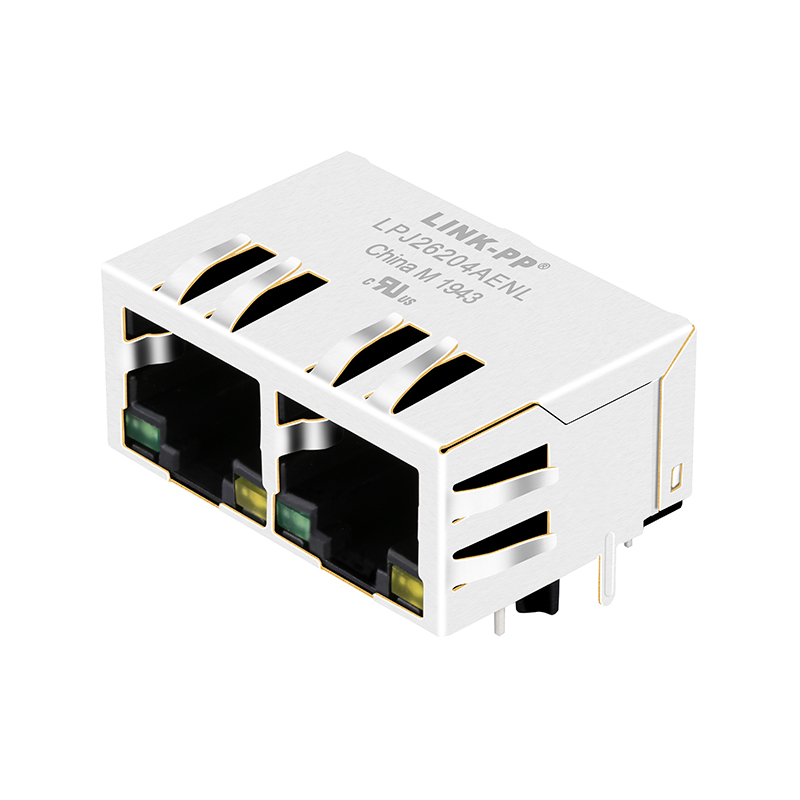

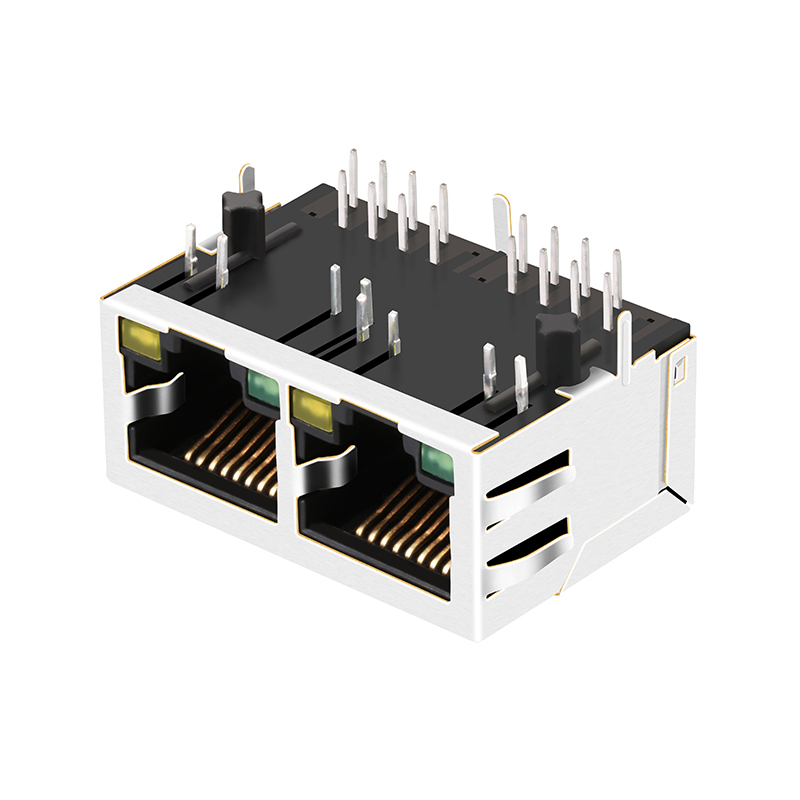

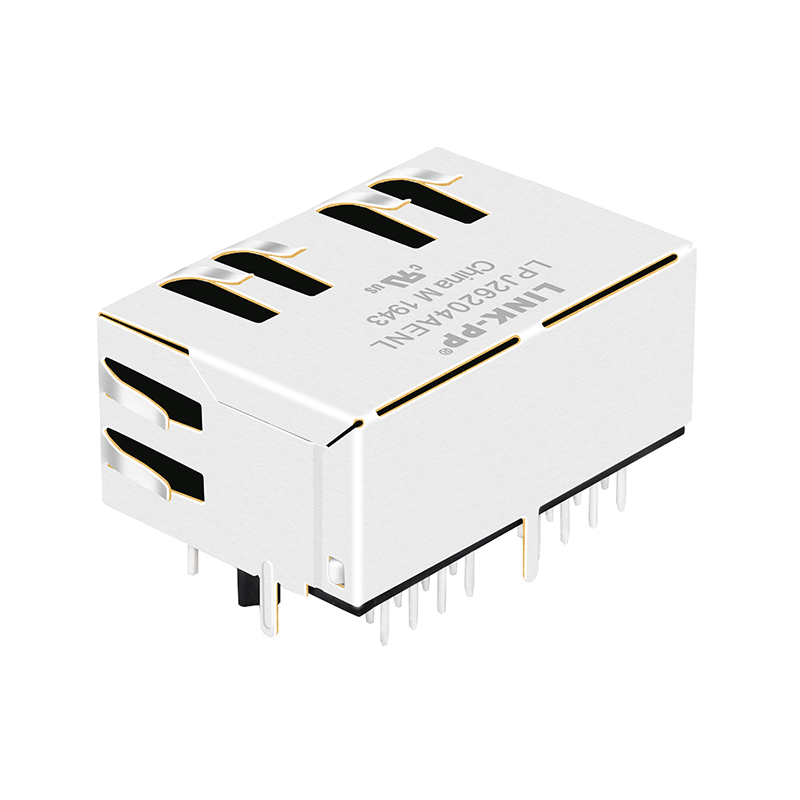

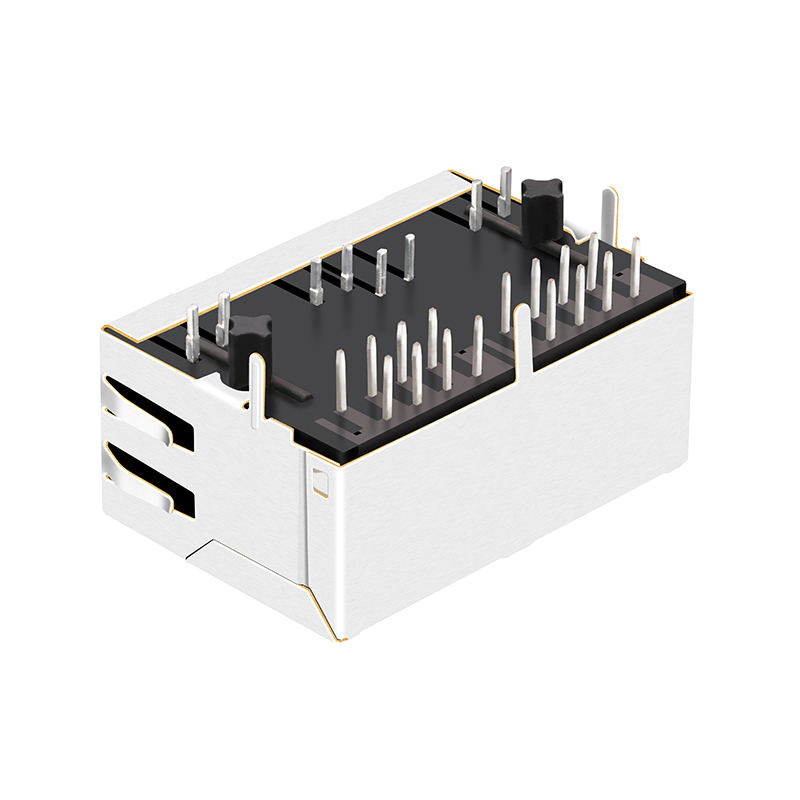

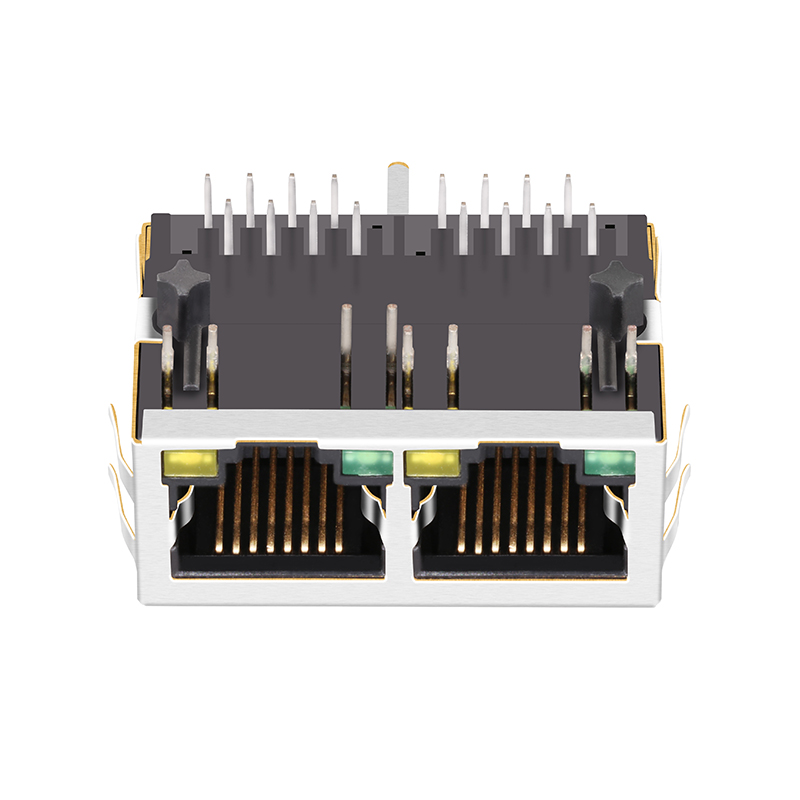

J8064D628ANL J8064D628A Tab Down 10/100 Base-t 1x2 Ports Magnetic RJ45 Jack With Leds
J8064D628ANL J8064D628A Tab Down 10/100 Base-t 1x2 Ports Magnetic RJ45 Jack With Leds
J8064D628ANL J8064D628A Tab Down 10/100 Base-t 1x2 Ports Magnetic RJ45 Jack With Leds
J8064D628ANL J8064D628A Tab Down 10/100 Base-t 1x2 Ports Magnetic RJ45 Jack With Leds
J8064D628ANL J8064D628A Tab Down 10/100 Base-t 1x2 Ports Magnetic RJ45 Jack With Leds
1 / 5
J8064D628ANL J8064D628A Tab Down 10/100 Base-t 1x2 Ports Magnetic RJ45 Jack With Leds
J8064D628ANL J8064D628A Tab Down 10/100 Base-t 1x2 Ports Magnetic RJ45 Jack With Leds
J8064D628ANL J8064D628A Tab Down 10/100 Base-t 1x2 Ports Magnetic RJ45 Jack With Leds
J8064D628ANL J8064D628A Tab Down 10/100 Base-t 1x2 Ports Magnetic RJ45 Jack With Leds
J8064D628ANL J8064D628A Tab Down 10/100 Base-t 1x2 Ports Magnetic RJ45 Jack With Leds

J8064D628ANL J8064D628A Tab Down 10/100 Base-t 1x2 Ports Magnetic RJ45 Jack With Leds

Send Inquiry

Product Description

Product Overview
J8064D628ANL J8064D628A Tab Down 10/100 Base-t 1x2 Ports Magnetic RJ45 Jack With Leds
Products Description
Item RJ45 Female Connector
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x2 Port
Speed 10/100 Base-T
Latch Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Detail
Products Link Overview
Product Selection Guide
Product Dimension 1 Product Dimension 2 Product Dimension 3
Testing Process 1 Testing Process 2 Testing Process 3
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities. We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Factory Environment 1 Factory Environment 2 Factory Environment 3
FAQ
1. Are you factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free sample to test quality, but you should pay the shipping fee.
3. What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
4. What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
5. Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
6. What is your advantage?
19 years of production experience and we have been a partner with top-tier global companies for many years.
