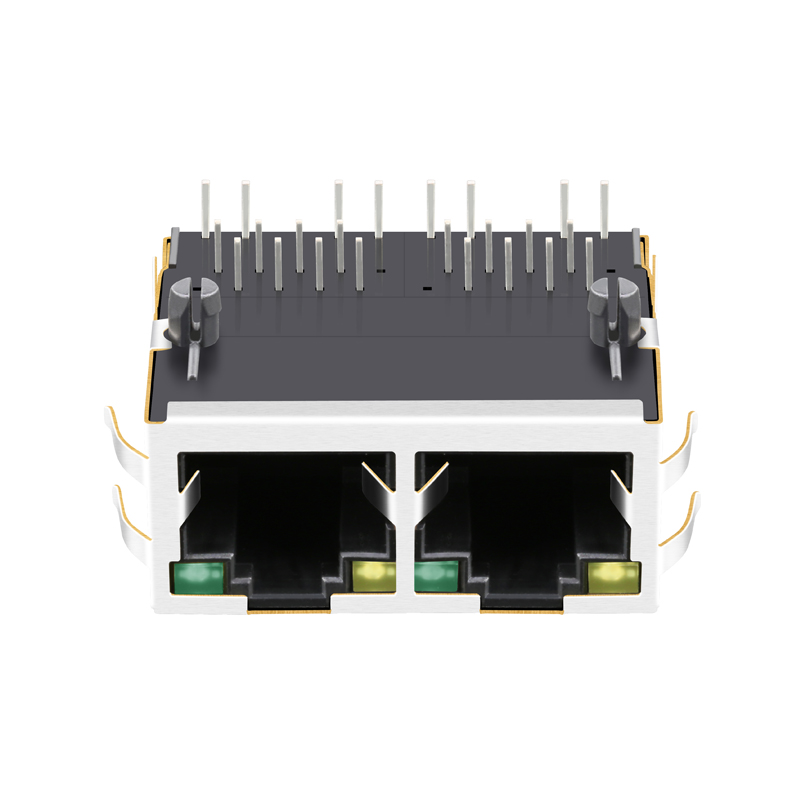

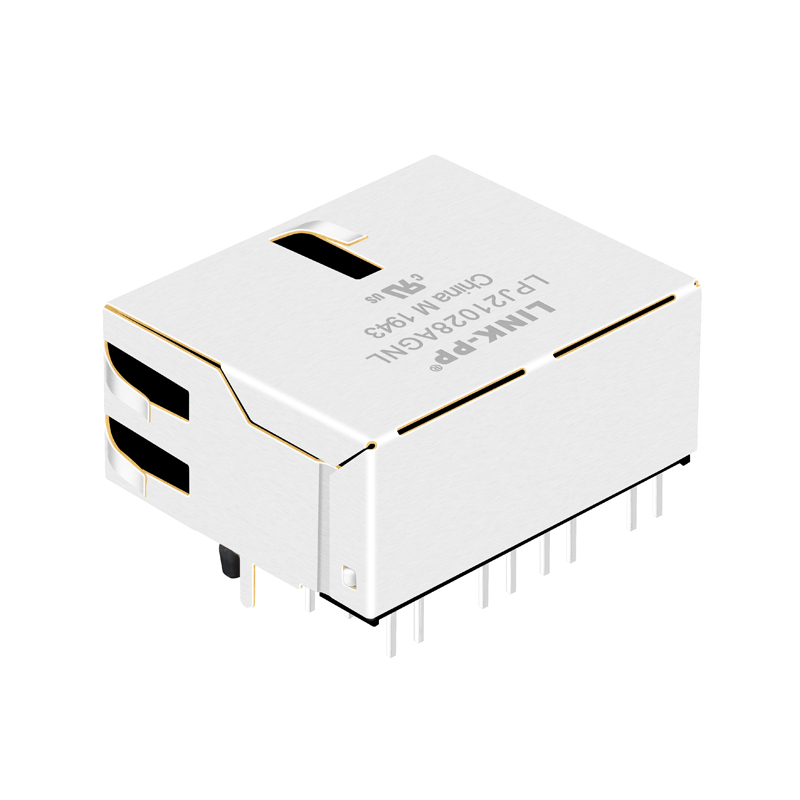

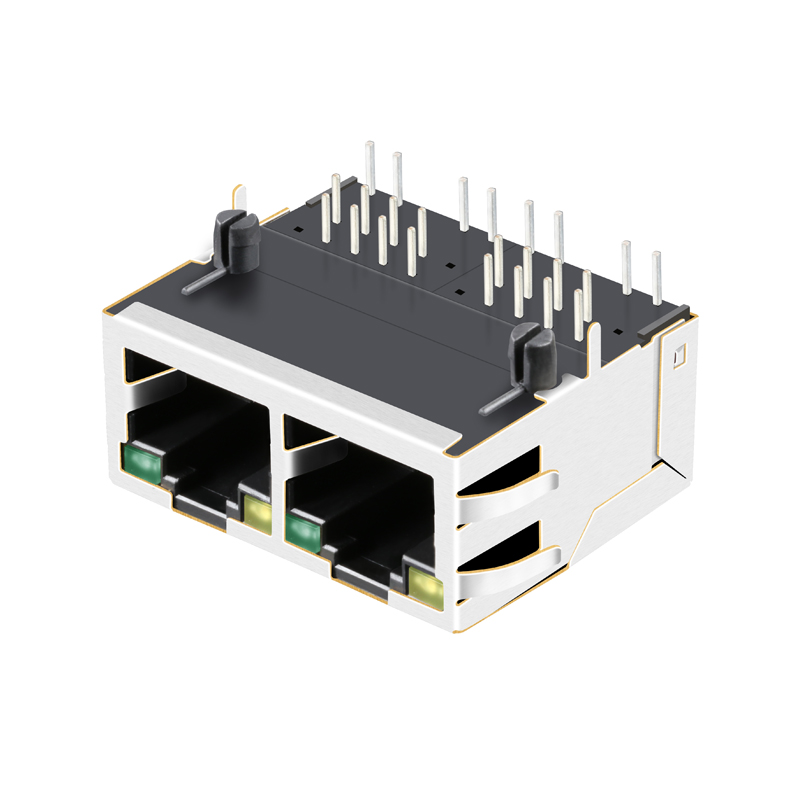

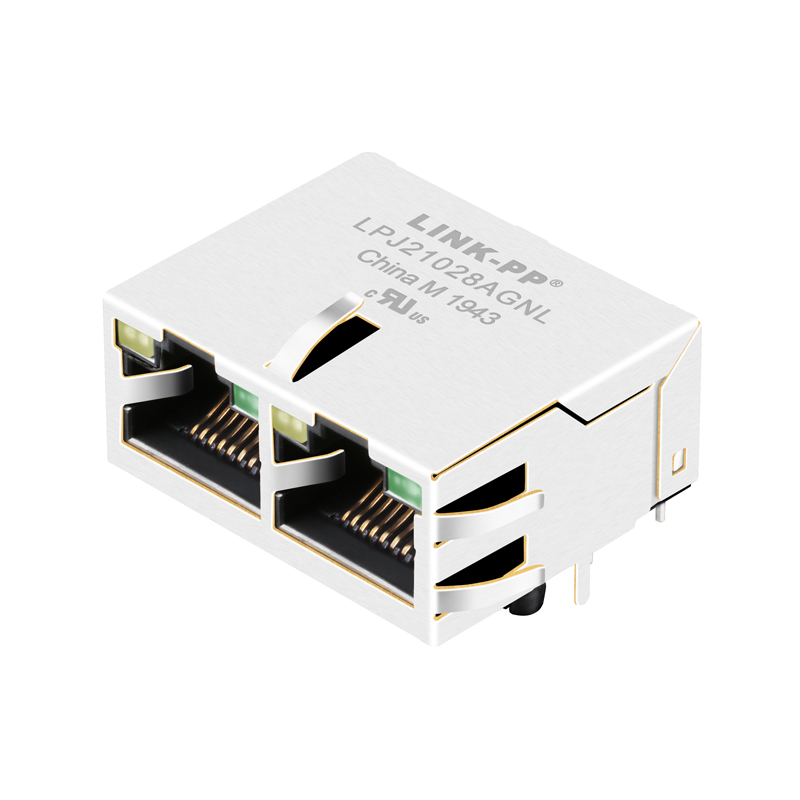

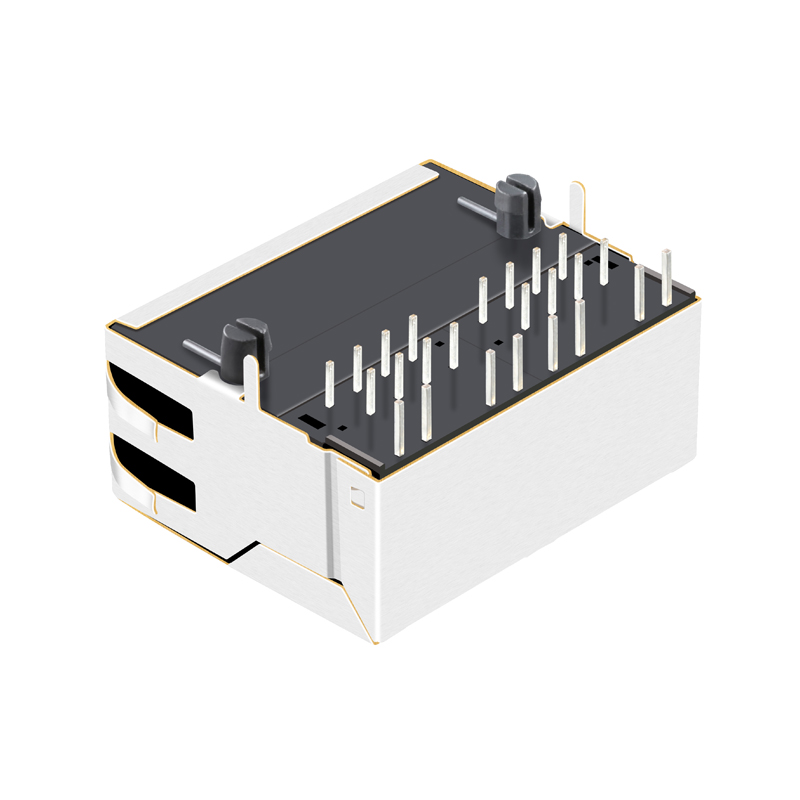

Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
1 / 5
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics

Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics

Send Inquiry

Product Description

Ethernet Components
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
Products Description
Item RJ45 Female Connector
Part Number LPJ21028AGNL
Compatible With RT2-14FB4K1A
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x2 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Specification Drawing
Click Below Products to Get More
Product Categorization Grid
Quality & Specifications
Certification
Testing Process
Manufacturing Detail
Internal Structure
Product Testing
Product Performance
Product Integrity
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components of OEMs, contract manufacturers and CEMs, supplying more than 10000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Factory Workshop
Warehouse Systems
Assembly Line
FAQ
Q1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
Q3. What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
Q4. What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
Q5. Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
Q6. What is your advantage?
19 years of production experience and we are partners with Intel and Jabil for many years.
