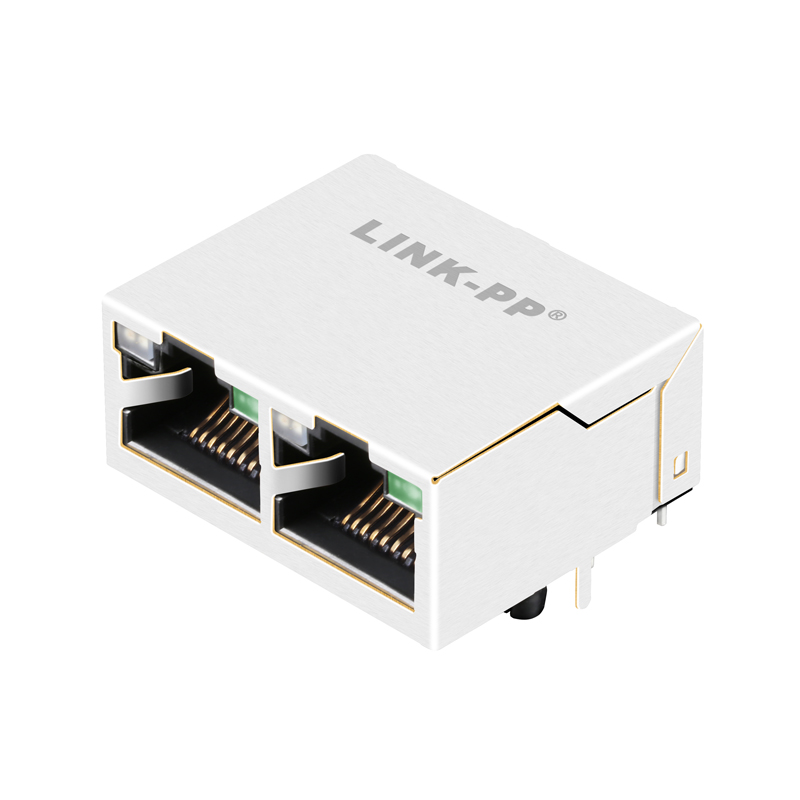

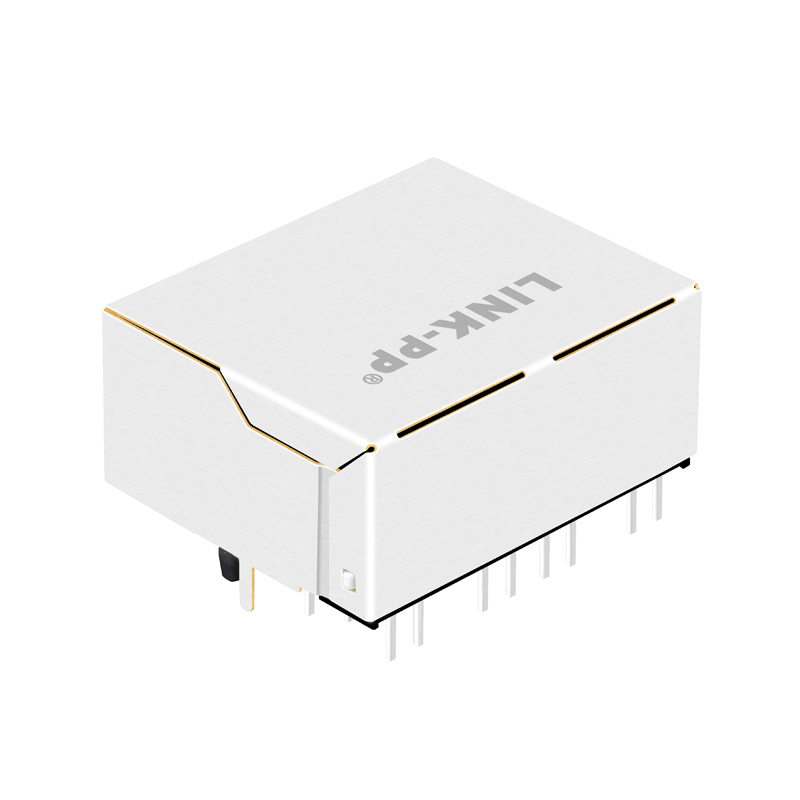

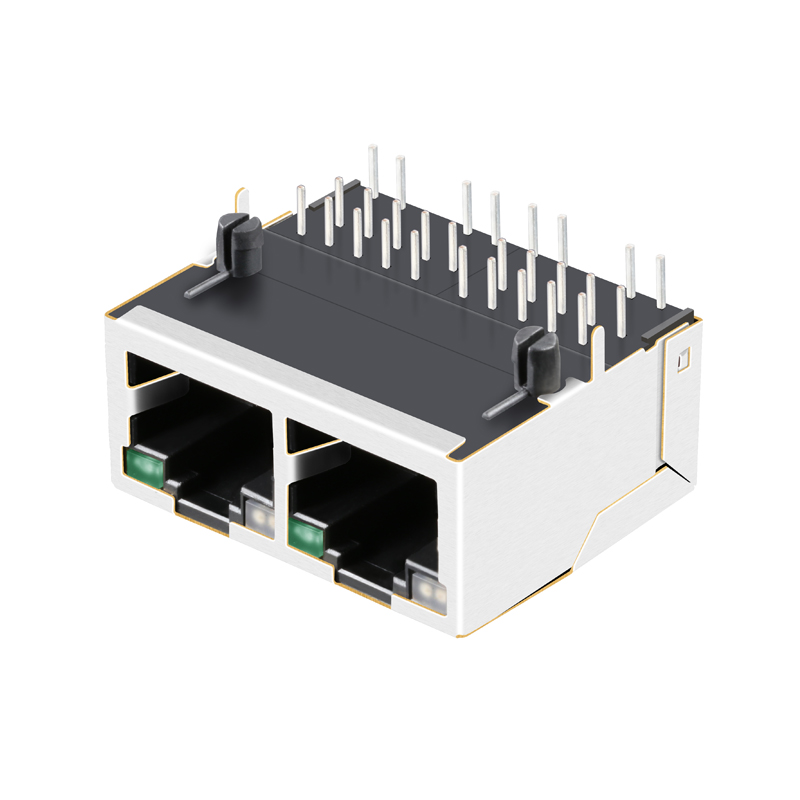

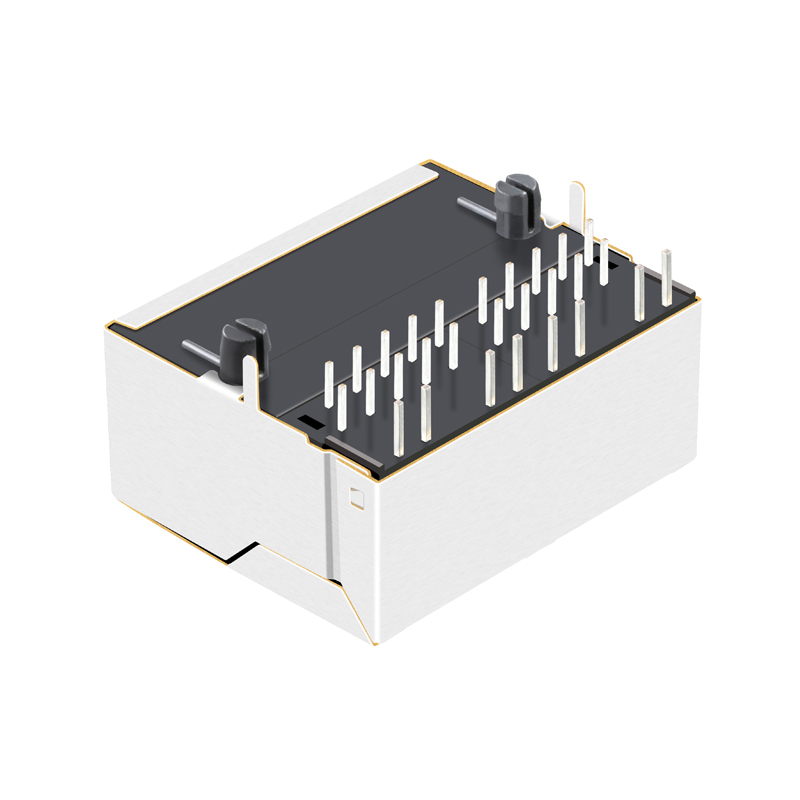

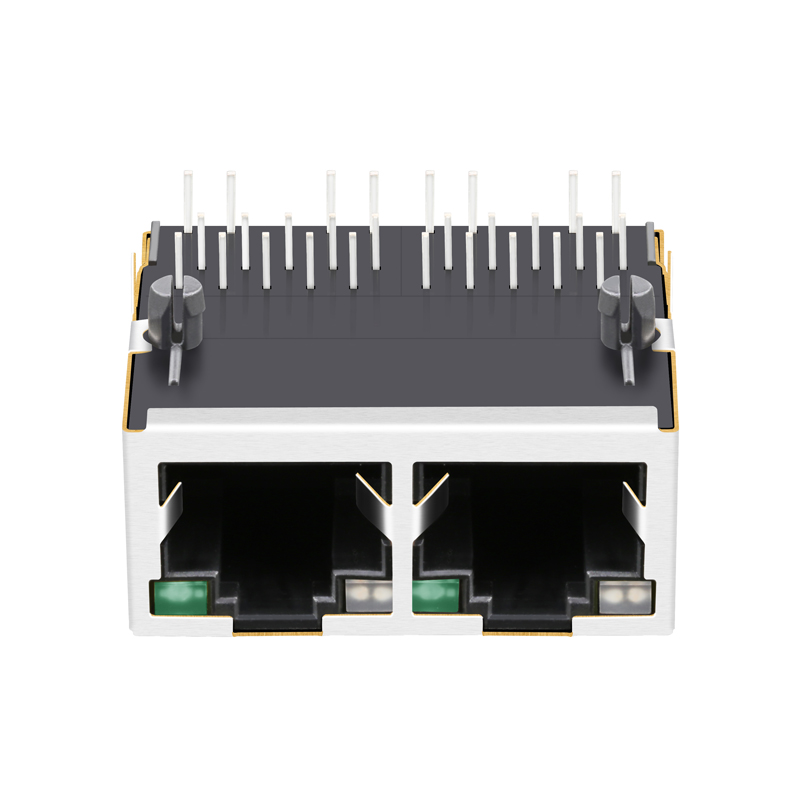

10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
| Part Number | 5-6610197-1 |
| AutoMDIX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port | 4 |
| Diodes | NO DIDES41 |
| LED Option | GREEN/YELLOW |
| Latch | UP |
| Number of Ports | 1X2 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH OR WITHOUT |
| Speed | 10/100 BASE-T |
| Temperature | 0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX | 1CT:1 |
| Turns Ratio TX | 1CT:1 |
