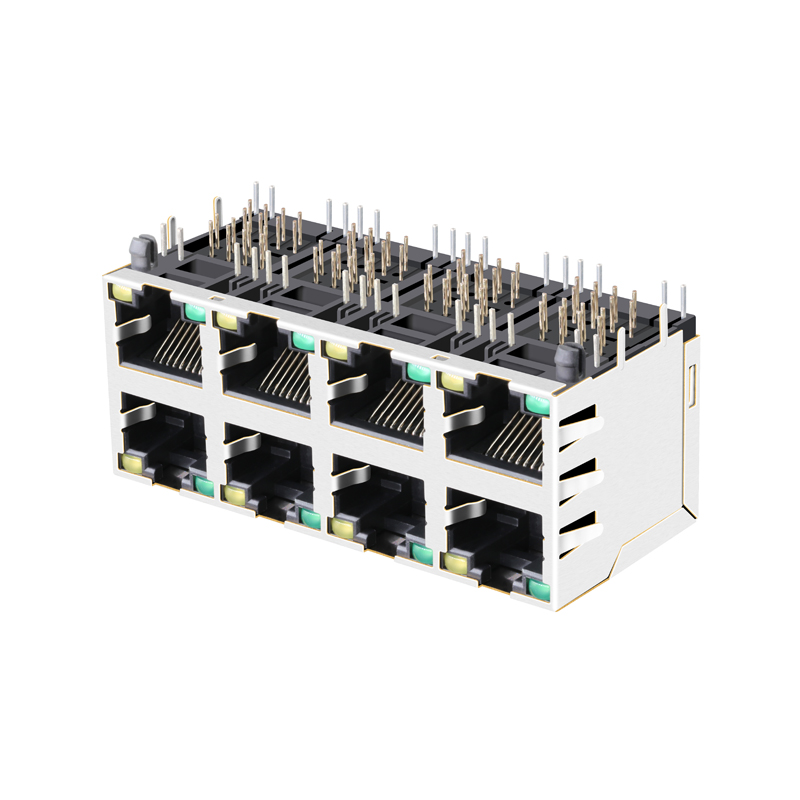

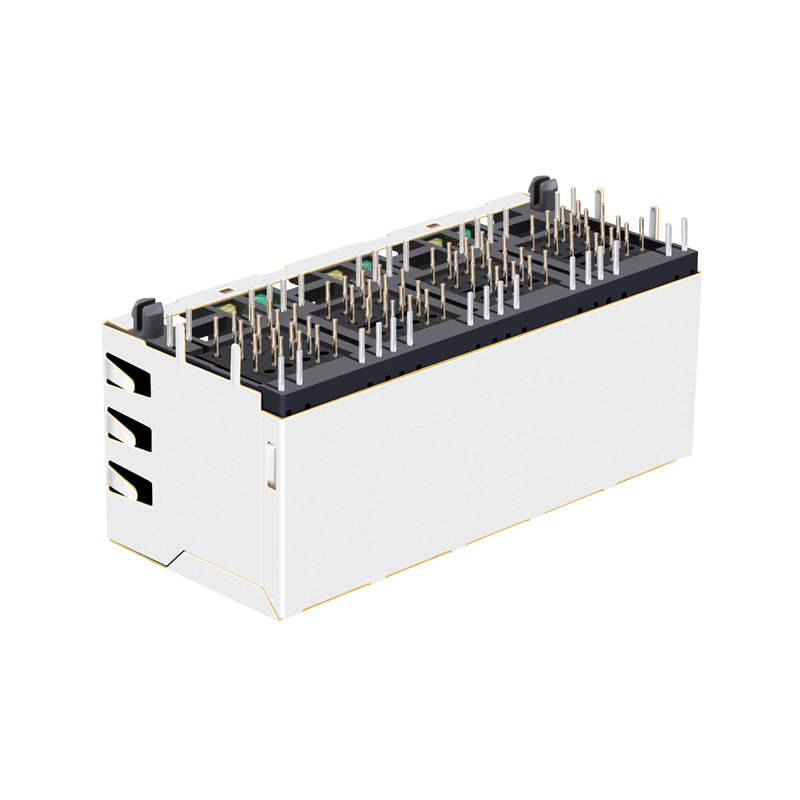

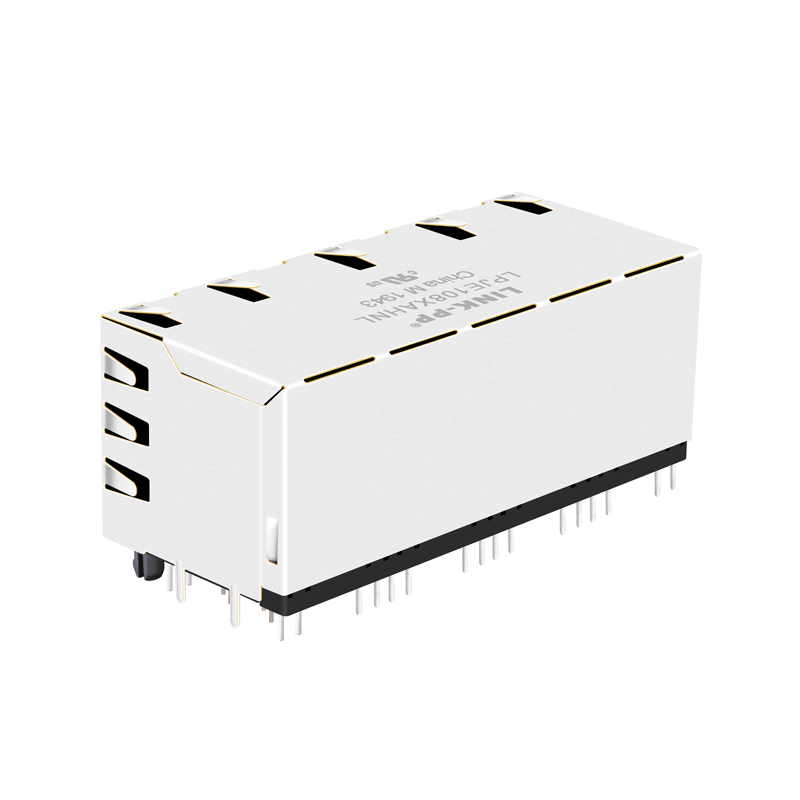

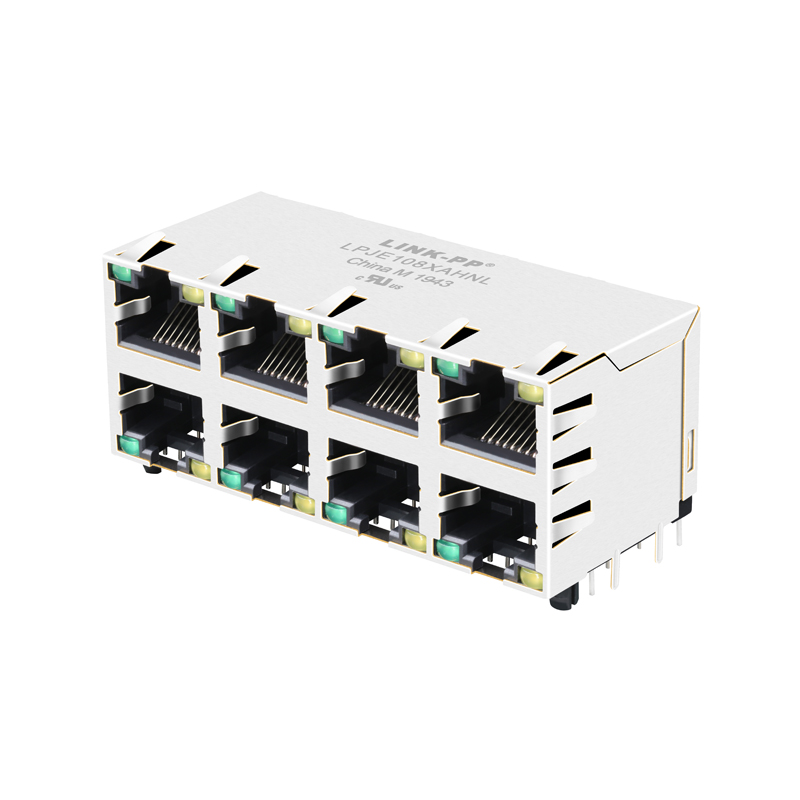

XRJD-S-24-8-8-4 Stacked 2x4 Ports Shielded Female Ethernet RJ45 Jack Without Magnetics

Product Description

Ethernet RJ45 Jack Product Range
XRJD-S-24-8-8-4 Stacked 2x4 Ports Shielded Female Ethernet RJ45 Jack Without Magnetics
Products Description
Item RJ45 Female Connector
Part Number LPJE108XAHNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(Non PoE)
Number of Ports 2x4 Port
Speed Without Magnetics
Latch Both (Up & Down)
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option With
PCB FR4
PCB Retaining Post T POST
Temperature -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Section Divider
Product Options Catalog
Technical Drawing Specifications
Product Dimensional Diagram

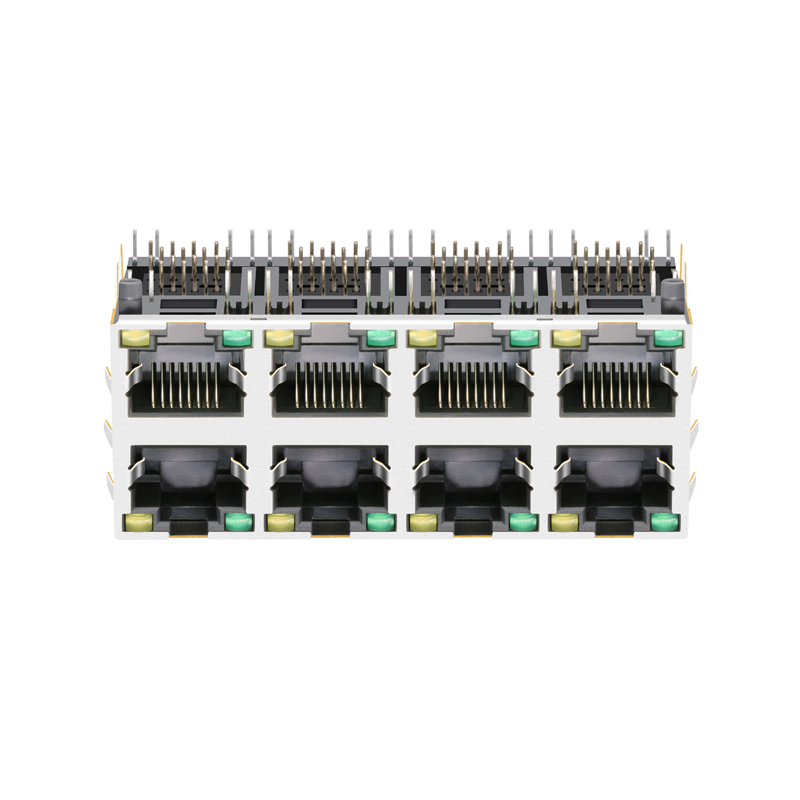

RJ45 Front View Design
RJ45 Side Entry Design
Production Line Facility
Quality Inspection Department
Company Profile
Established in 1997, the company is a professional designer and manufacturer in magnetic telecom and networking components, offering an extensive line of state-of-the-art catalog products as well as custom capabilities. As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, the manufacturer supplies more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, the organization is committed to being a leading Ethernet RJ45 connector and LAN transformer supplier worldwide.
Quality Management Systems
Automation Assembly Workshops
Testing and Storage Center
FAQ
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, with the shipping fee covered by the buyer.
3. What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production.
4. What after-sales service do you offer?
We provide a one-year warranty period and 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send your requirements to us so we can discuss the details.
6. What is your advantage?
We bring 19 years of manufacturing experience and have been a trusted partner for global leading technology enterprises for many years.
