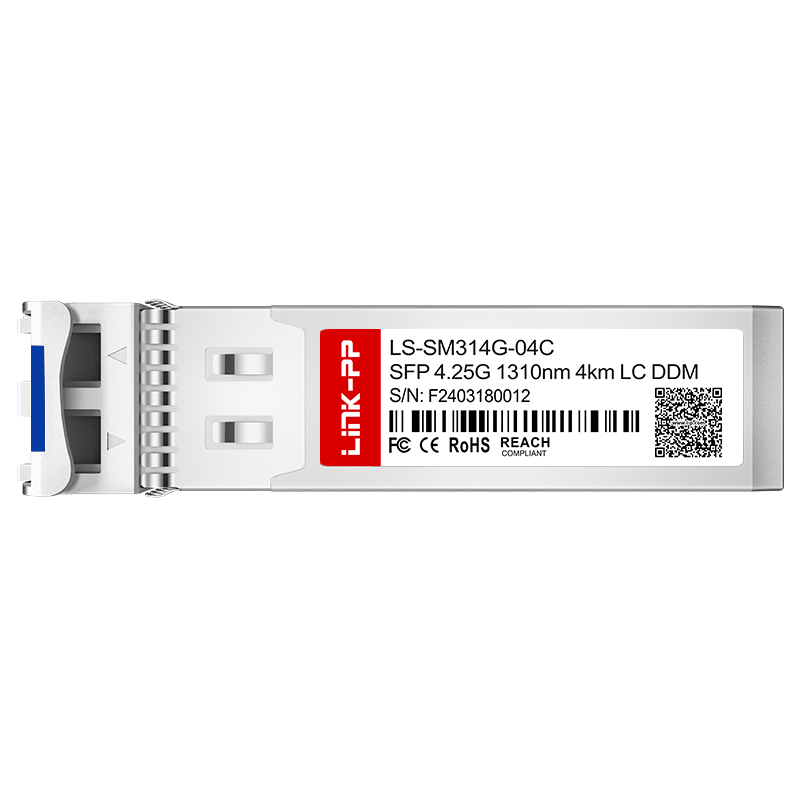

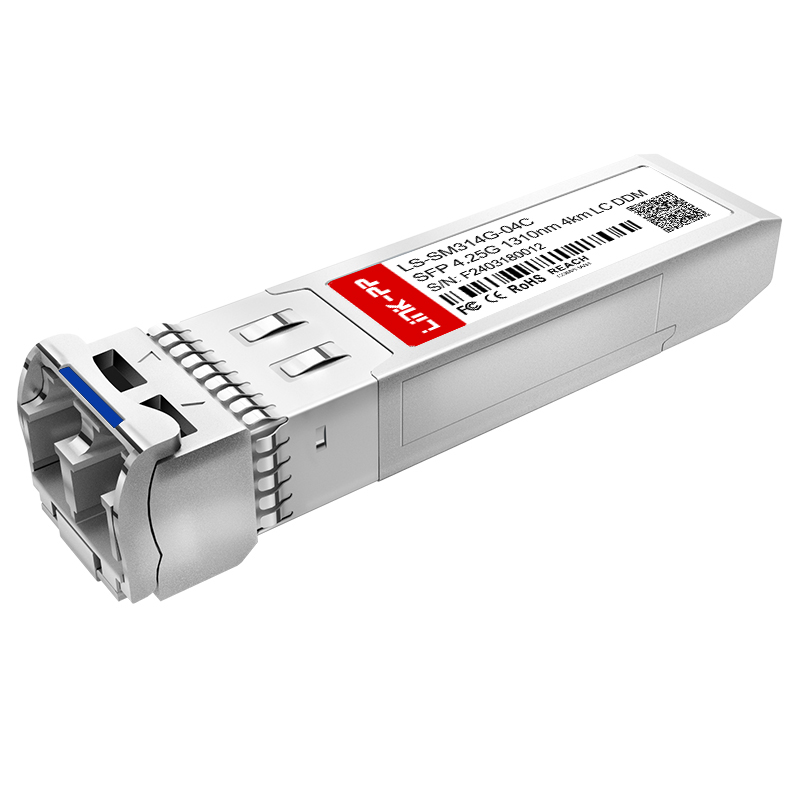

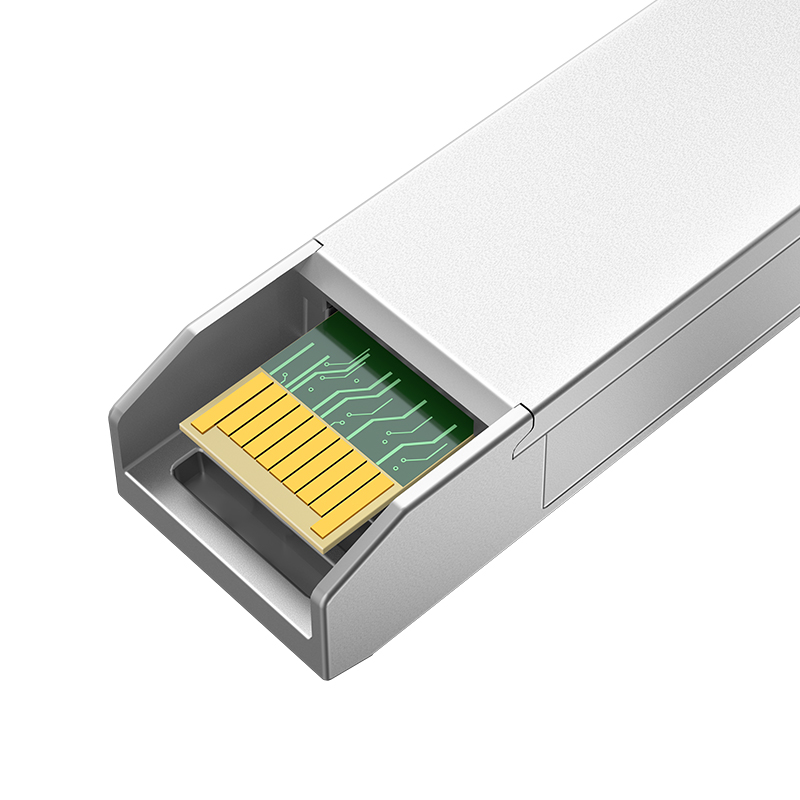

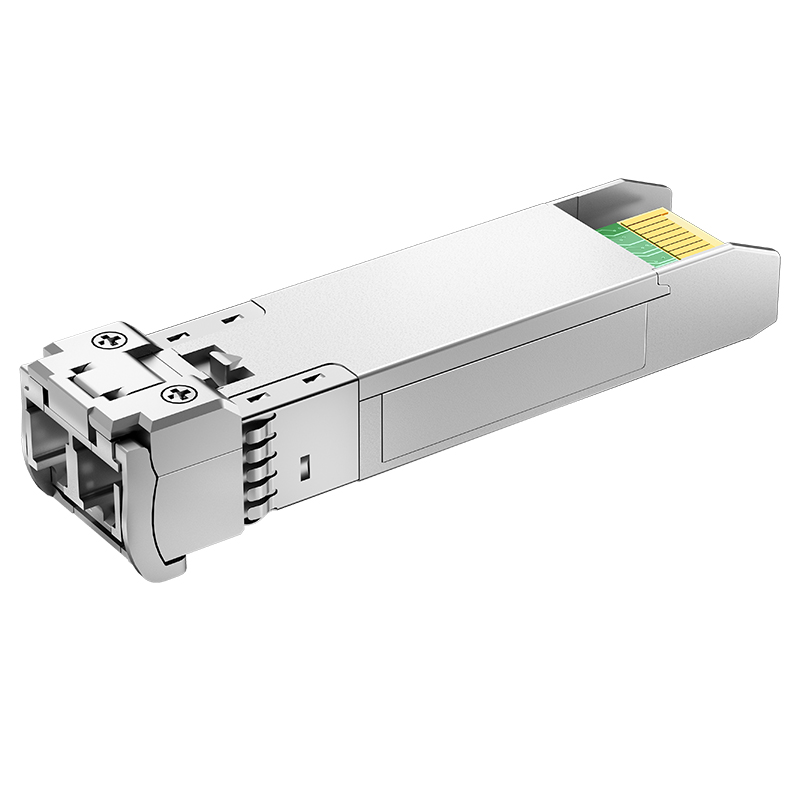

Single Mode SFP 4G 4km 1310nm SMF DDM Duplex LC Optical Transceiver Module
| Part No. |
LS-SM314G-04C |
| Form Factor |
SFP |
| Max Data Rate |
4.25Gbps |
| Wavelength |
1310nm |
| Max Cable Distance |
4km |
| Connector |
Duplex LC |
| Media |
SMF |
| Transmitter Type |
FP |
| Receiver Type |
PIN |
| EMC (Electro Magnetic Compatibility) |
Supported |
| DDM/DOM |
Supported |
| Protocols |
MSA Compliant |
| Temperature Range |
0 to 70°C / -40 to 85°C |
| Warranty |
5 Years |
| Sample |
Available |
View Our Solutions
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Support Full Range Of 4.25G SFP
| Part Number |
Data Rate |
Wavelength |
Distance |
Media |
DDM |
| LS-MM854G-S1C |
4.25Gbps |
850nm |
150m |
Multi-mode |
Yes |
| LS-MM852G-S3C |
4.25Gbps |
850nm |
300m |
Multi-mode |
Yes |
| LS-MM854G-S5C |
4.25Gbps |
850nm |
500m |
Multi-mode |
Yes |
| LS-SM314G-02C |
4.25Gbps |
1310nm |
2km |
Single Mode |
Yes |
| LS-SM314G-04C |
4.25Gbps |
1310nm |
4km |
Single Mode |
Yes |
| LS-SM314G-10C |
4.25Gbps |
1310nm |
10km |
Single Mode |
Yes |
| LS-SM314G-40C |
4.25Gbps |
1310nm |
40km |
Single Mode |
Yes |
| LS-SM554G-40C |
4.25Gbps |
1550nm |
40km |
Single Mode |
Yes |
Application Scenarios
Optical Transport Networks
We can provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR, etc.
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
We provide highly reliable and high-performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul, meeting the requirements of various scenarios in 4G/5G systems.
FTTx
Aiming at global communication network constructors, we provide total FTTx optical fiber access solutions covering all-optical or combined optical-copper access solutions and products.
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution, which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Related Products SFP Cage
Why Choose Us
Company Profile
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, RoHS, REACH, CE, and UL, with advanced manufacturing equipment and testing equipment imported from abroad. Established in 1997, we currently have about 2,000 employees. With an abundant production capacity of 3,000K per month, we can deliver products within a short time.
In addition, we provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, we design, manufacture, and sell products worldwide.
FAQ
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping fees are responsibility of the buyer.
What is your delivery time?
Items currently in stock are ready to ship. For mass production orders, the delivery time is generally between 15 to 30 days.
What after-service can you offer?
We provide a one-year warranty period and offer online technical support 24 hours a day.
Can you accept OEM/ODM orders?
Yes, please send your specific inquiries to us so we can discuss the customization details.
What is your advantage?
We boast over 19 years of manufacturing expertise and have maintained stable partnerships with top global electronics enterprise systems for many years.
