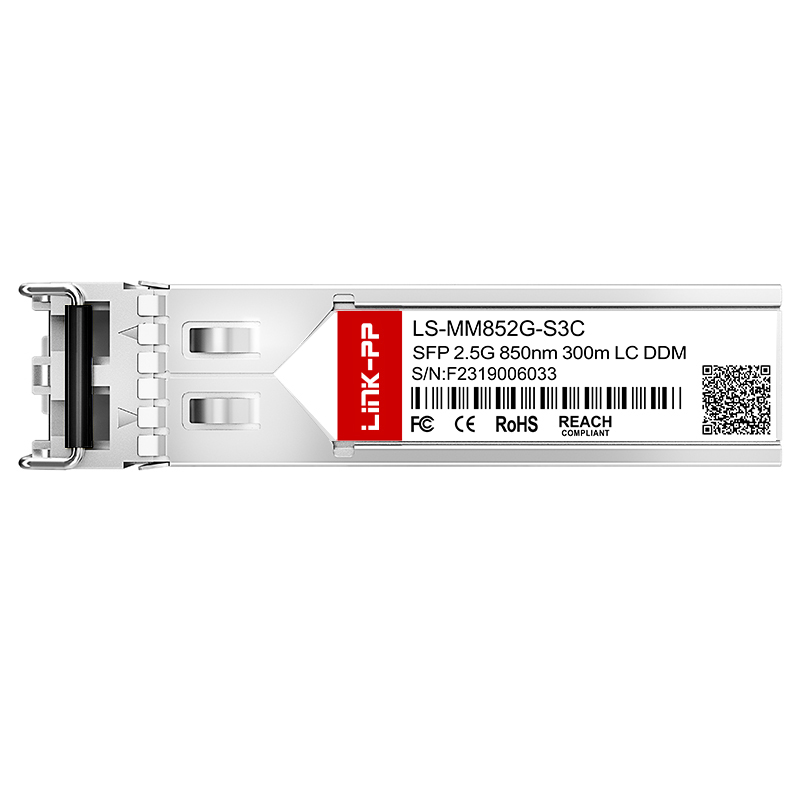

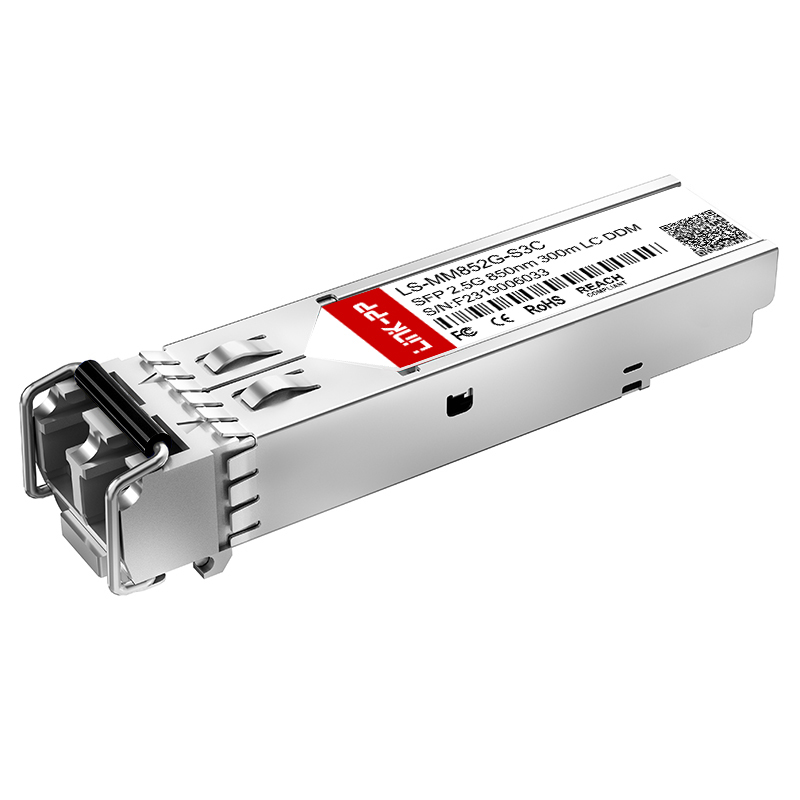

| Item | 2.5G SFP |
| Part Status | Active |
| Form Factor | SFP |
| Max Data Rate | 2.5Gbps |
| Wavelength | 850nm |
| Max Cable Distance | 300m |
| Media | MMF |

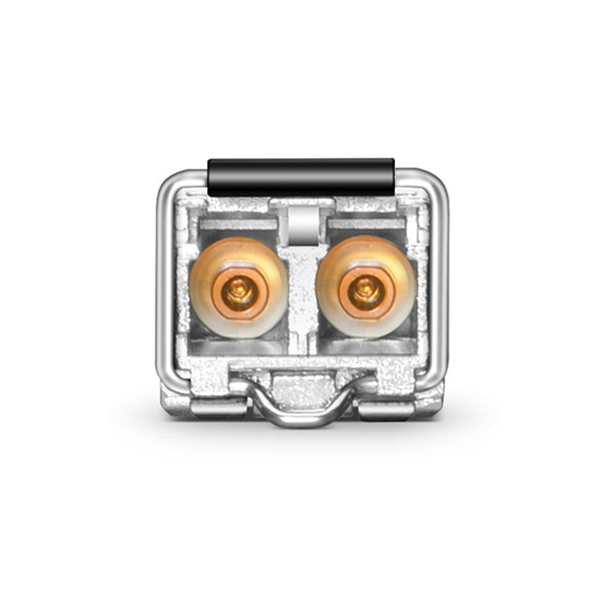

| Connector | Duplex LC |
| Optical Component | VCSEL/PIN |
| TX Power | -10~-3dBm |
| Receiver Sensitivity | <-18dBm |
| Receiver Overload | -3dBm |
| Power Consumption | 1W |
| Extinction Ratio | >8.2dB |
| DDM/DOM | Supported |
| Commercial Temperature Range | -10 to 70°C (-37 to 158°F) |
| Protocols | SFP MSA(INF-8074i), GR-253-CORE, ITU-T G.957, FC-PI v2.0, SFF-8472 v9.5 |
| Warranty | 5 Years |
| Sample | Available |
A specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owns advanced manufacturing facilities and test equipments imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to delivery the goods within the short time. Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well.
Main Products include 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem.
