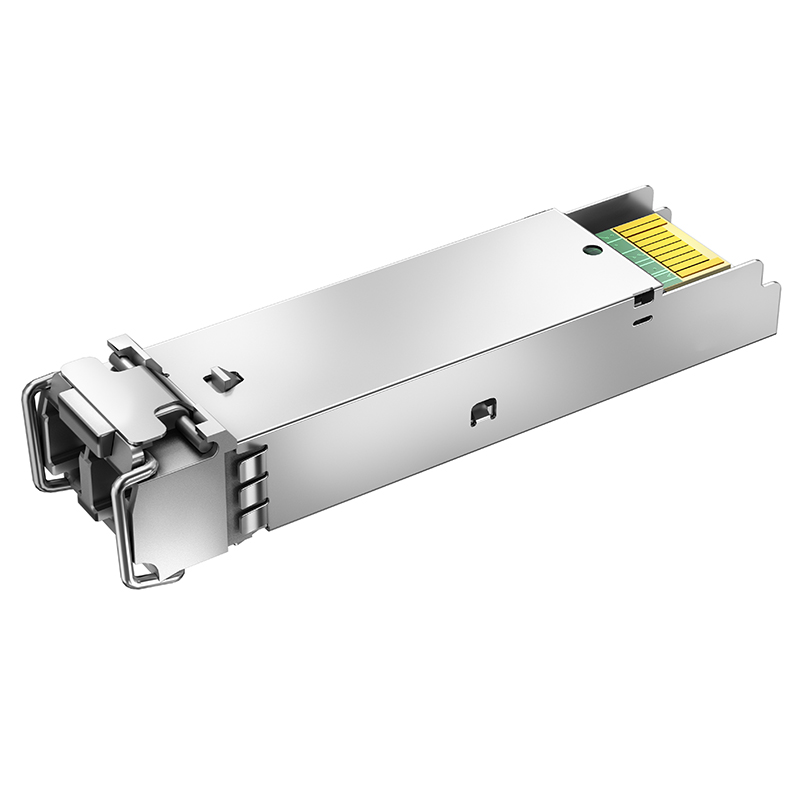

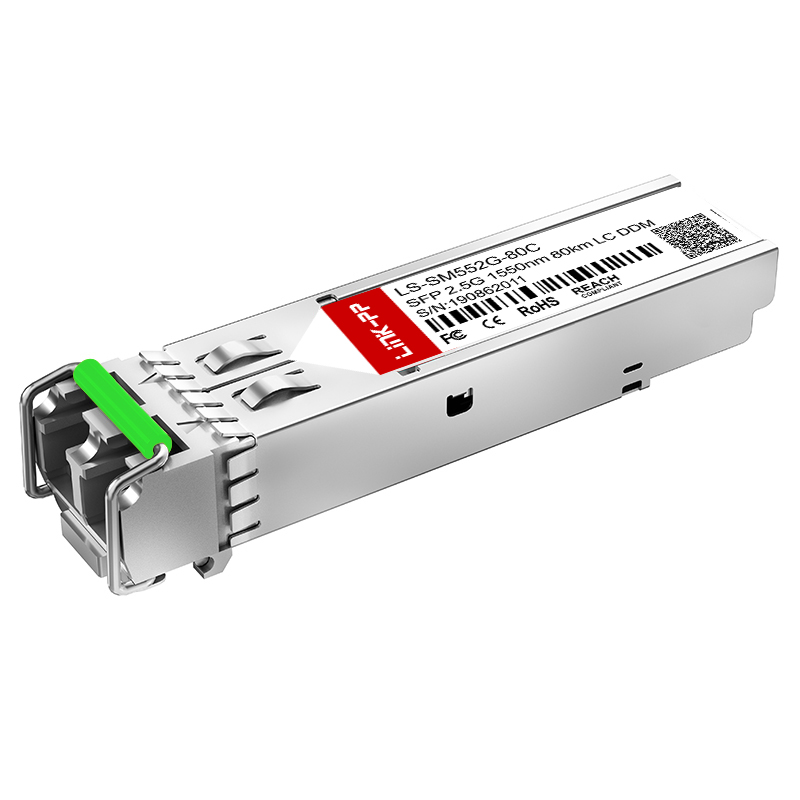

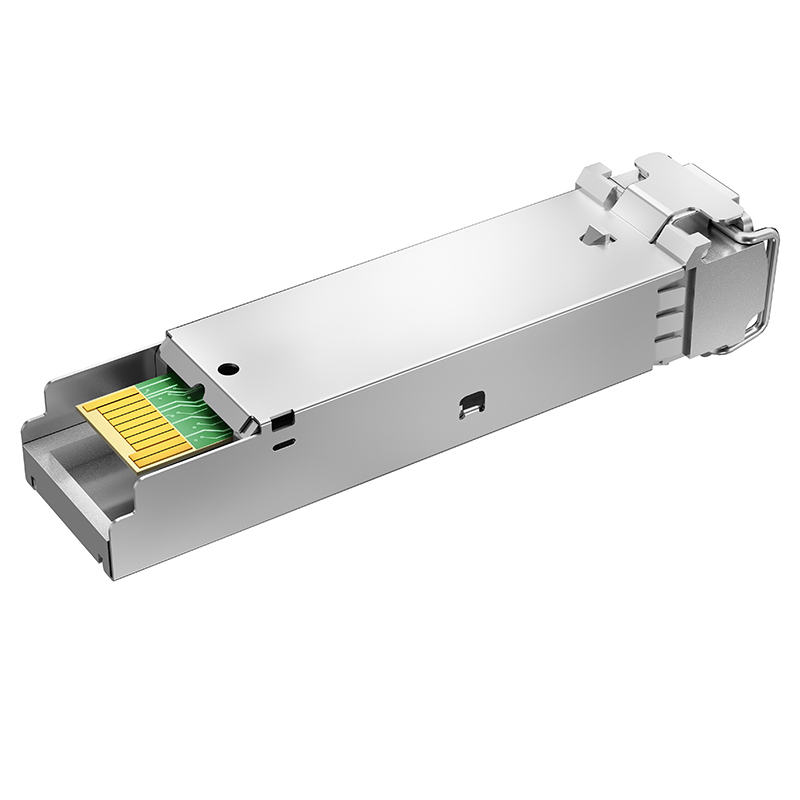

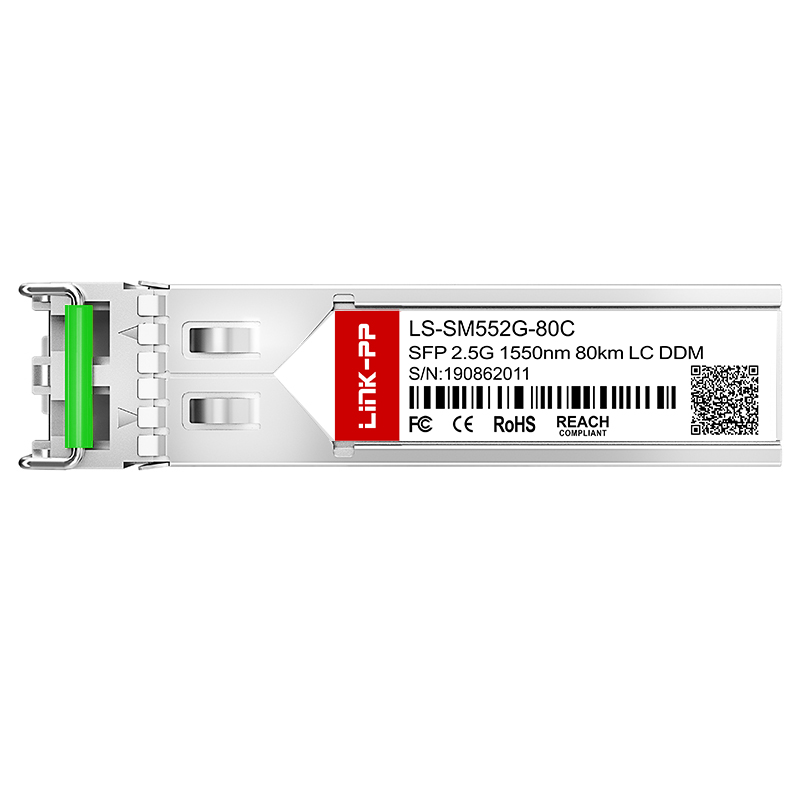

| Part No. | LS-SM552G-80C |
| Form Factor | SFP |
| Max Data Rate | 2.5Gbps |
| Wavelength | 1550nm |
| Max Cable Distance | 80km |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | DFB |
| Receiver Type | PIN |
| TX Power | -2 ~ 3dBm |
| Receiver Sensitivity | < -28dBm |
| EMC Supported | Yes |
| DDM/DOM | Supported |
| Protocols | MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
| Part Number | Data Rate | Wavelength | Distance | Media | DDM |
|---|---|---|---|---|---|
| LS-MM852G-S3C | 2.5Gbps | 850nm | 300m | Multi-mode | Yes |
| LS-MM852G-S5C | 2.5Gbps | 850nm | 550m | Multi-mode | Yes |
| LS-SM312G-02C | 2.5Gbps | 1310nm | 2km | Single Mode | Yes |
| LS-SM312G-10C | 2.5Gbps | 1310nm | 10km | Single Mode | Yes |
| LS-SM312G-20C | 2.5Gbps | 1310nm | 20km | Single Mode | Yes |
| LS-SM552G-20C | 2.5Gbps | 1550nm | 20km | Single Mode | Yes |
| LS-SM312G-40C | 2.5Gbps | 1310nm | 40km | Single Mode | Yes |
| LS-SM552G-40C | 2.5Gbps | 1550nm | 40km | Single Mode | Yes |
| LS-SM552G-80C | 2.5Gbps | 1550nm | 80km | Single Mode | Yes |
Optical Transport Networks
We provide end-to-end DWDM devices including active modules and optical passive devices, such as optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR.
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed high-speed optical modules ranging from 10G to 800G, providing high-quality interconnection solutions.
Wireless Solutions
High reliability products with mature lasers and chip solutions. Covers Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul for 4G/5G systems.
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE and UL. Equipped with advanced manufacturing and testing equipment, we maintain an abundant production capacity of 3000K per month to ensure short delivery times.
Our expertise includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks using the latest optoelectronic technologies.
