Home > 1.25G SFP Module > SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km

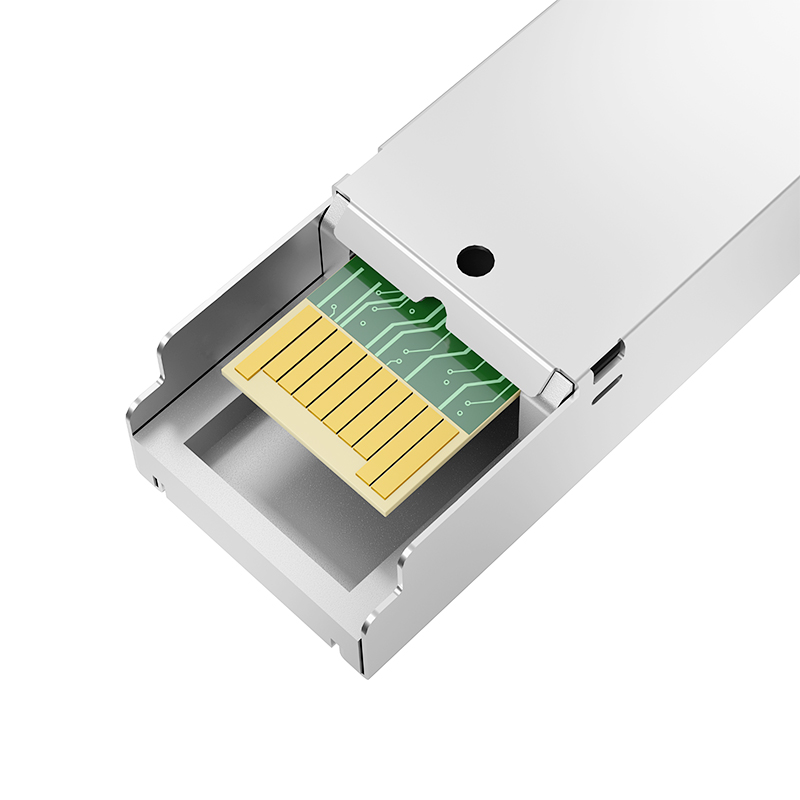

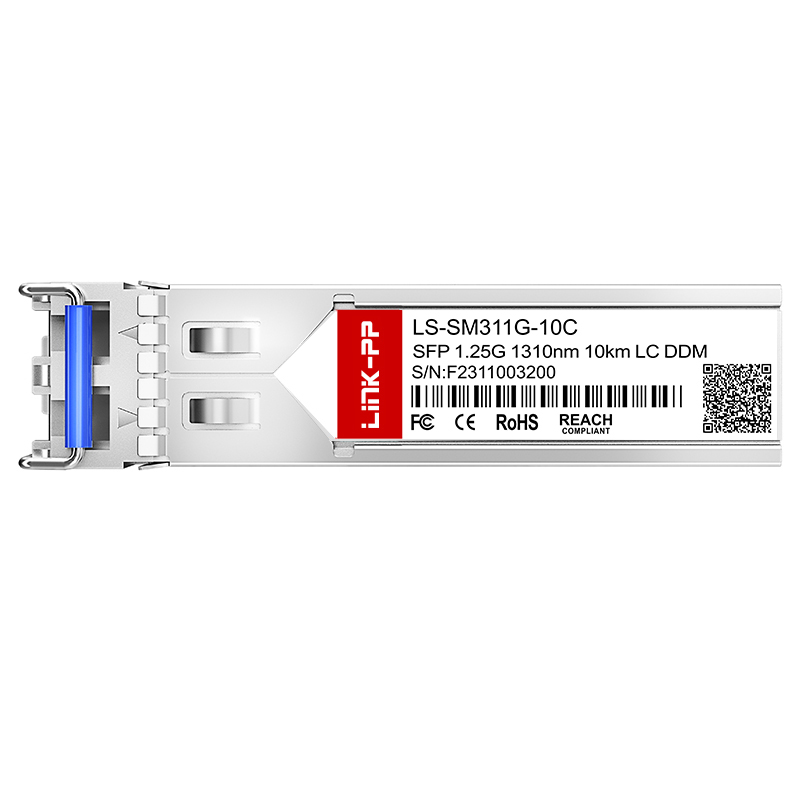

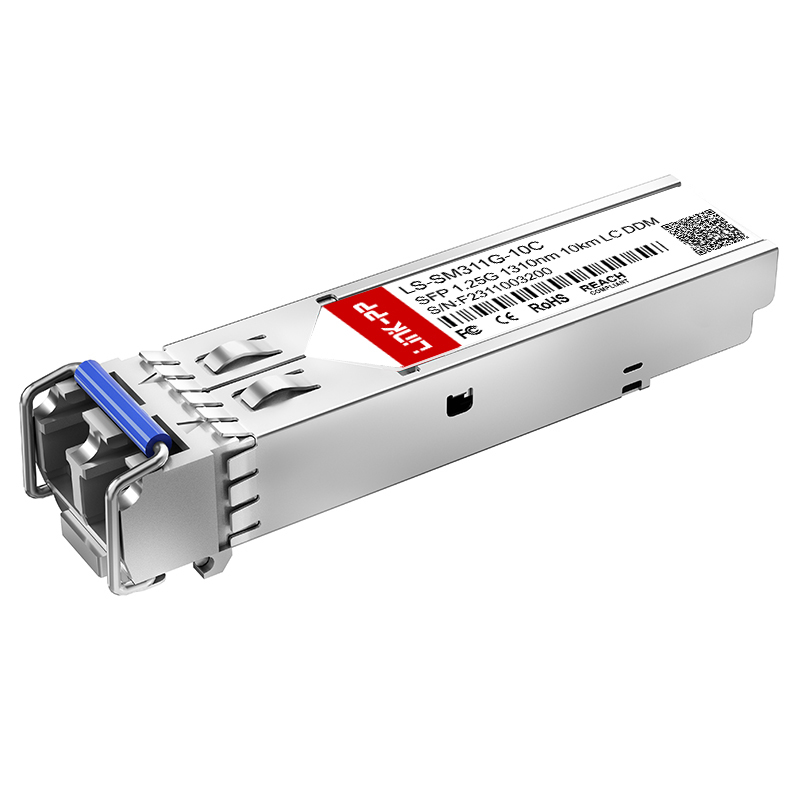

SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
1 / 5
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km

SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km

Send Inquiry

Product Description

SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
Products Description
Item 1000BASE SFP
Compatible H3C SFP-GE-LX-SM1310
Part Status Active
Form Factor SFP
Max Data Rate 1.25Gbps
Wavelength 1310nm
Max Cable Distance 10Km
Media SMF
Connector Duplex LC
Optical Component FP/PIN
TX Power -9.5~-3dBm
Receiver Sensitivity <-20dBm
Receiver Overload -3dBm
Power Consumption ≤1W
Extinction Ratio >9dB
DDM/DOM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols IEEE 802.3ah-2004, IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant
Warranty 5 Years
Sample Available
Product Options
VIEW OUR SOLUTION
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Solution Diagram
Optical Transport Networks
Optical Transport Networks
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
FTTx
Aim to global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
Subsystems
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Subsystem Overview
Product Details 1 Product Details 2
Related Products SFP Cage
SFP Cage Option 1 SFP Cage Option 2
Why Choose Us
Advantage 1 Advantage 2 Advantage 3 Advantage 4
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, and you would only need to pay the shipping fee.
What is your delivery time?
Items currently in stock are ready to ship immediately, while mass production typically takes 15-30 days.
What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so we can proceed with a detailed discussion.
What is your advantage?
We bring over 19 years of manufacturing and production experience, and have established long-term partnerships with leading global technology corporations.
