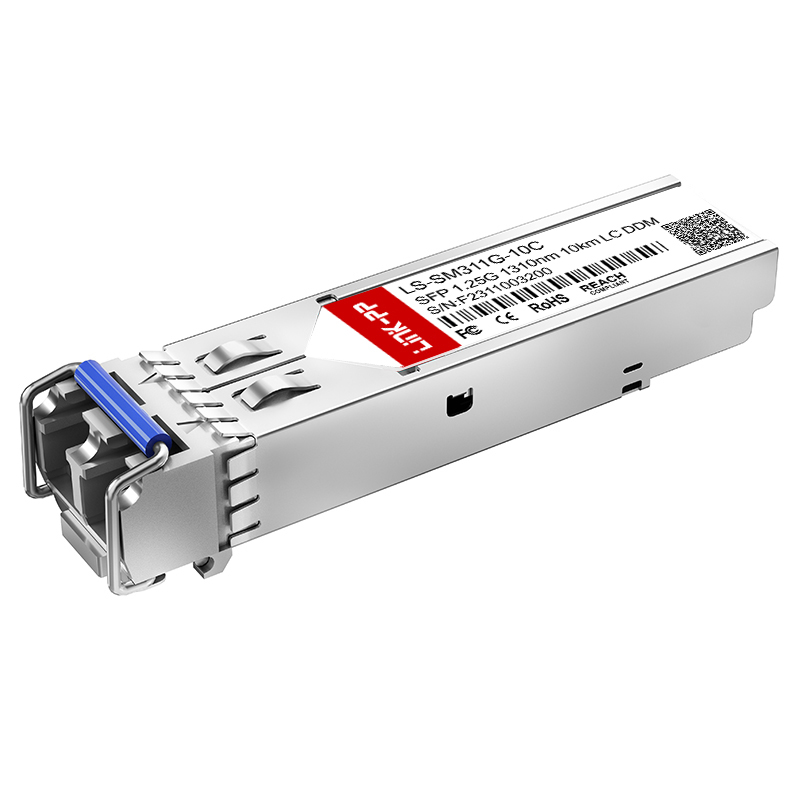

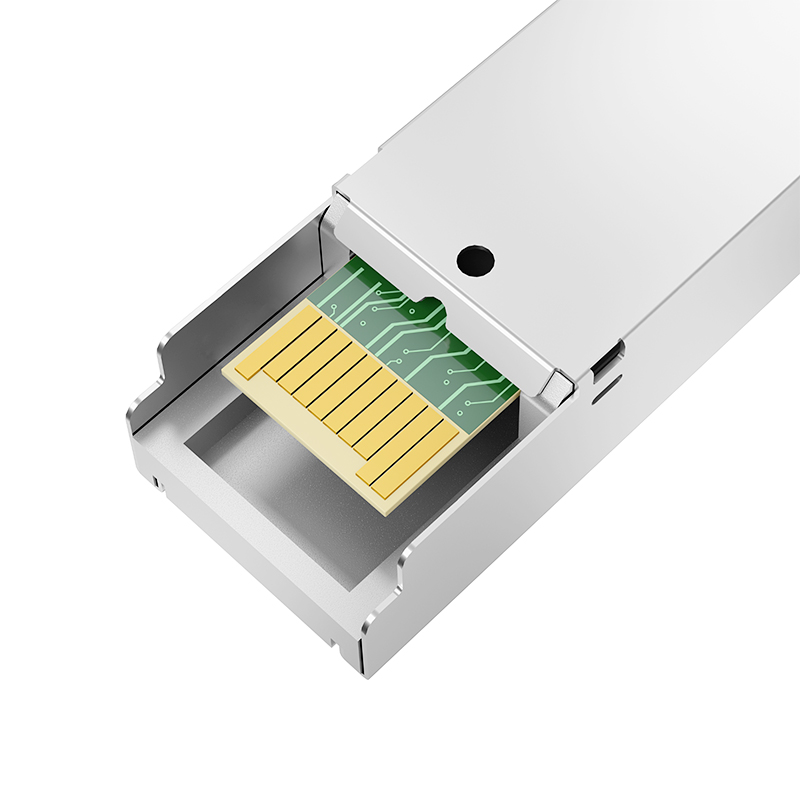

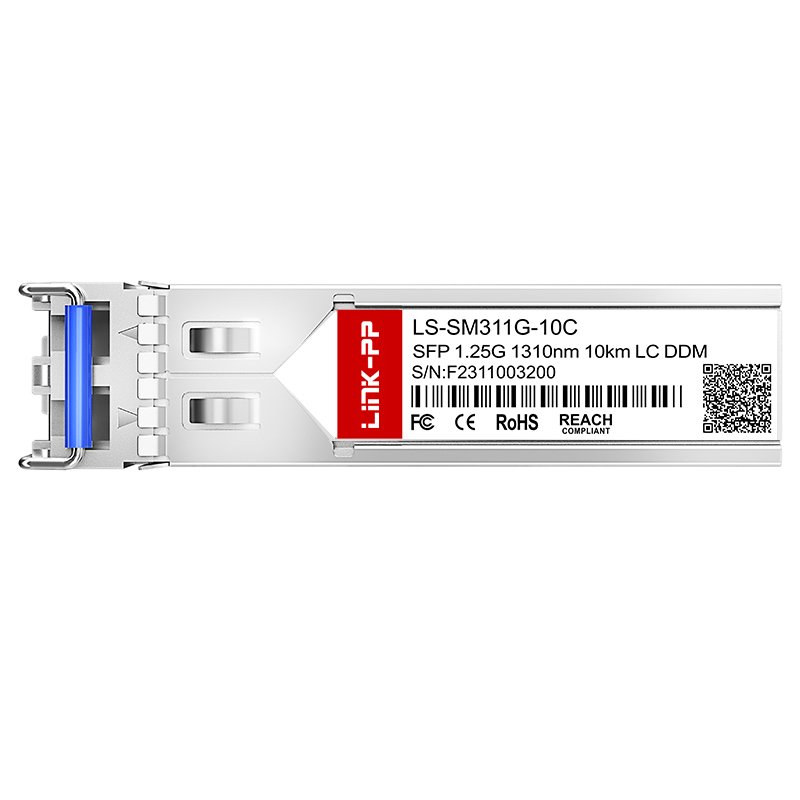

1000BASE-LX/LH SFP Module 1310nm 10km DOM Duplex LC SMF Optical Transceiver
| Item |
Fiber Optical Modules |
| Part Status |
Active |
| Form Factor |
SFP |
| Max Data Rate |
1000Mbps |
| Wavelength |
1310nm |
| Max Cable Distance |
10km |
| Fiber Type |
SMF |
| Media |
1x1 Port |
| Connector |
LC |
| Power Consumption |
<1W |
| DDM/DOM |
Supported |
| Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
| EMC (Electro Magnetic Compatibility) |
Supported |
| MTBF |
1,000,000 Hours |
| Protocols |
IEEE Std 802.3 and 802.3ab, SFP MSA Compliant |
| Warranty |
5 Years |
| Sample |
Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transport Networks
End-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, a series of high-speed optical module which the product rate ranging from 10G to 800G has been developed, providing high-quality optical interconnection solutions for data centers.
Wireless
High reliability and performance products are provided with mature and efficient lasers and mainstream chip solutions to customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
Aimed at global communication network constructors, FTTx optical fiber access total solutions are provided, covering all-optical or optical copper combined access solutions and products.
Subsystems
To ensure the normal operation of the communication line, an optical cable O&M solution is provided, which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
✦ Related Products SFP Cage ✦
A specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad.
Established in 1997, with around 2000 staff at present. With an abundant productive capacity of 3000K per month, products can be delivered within a short time.
Moreover, a full series of optical modules can be provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, products are developed, manufactured, and sold around the world.
1
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, lan transformers, RJ11 connectors, and SFP modules, etc.
2
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should cover the shipping fee.
3
What is your delivery time?
Ready to ship for stock items and 15-30 days for mass production.
4
What after-service can you offer?
A one-year guarantee period is provided, along with online technical support 24 hours a day.
5
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
6
What is your advantage?
19 years of production experience and partnership with global leading enterprises for many years.
