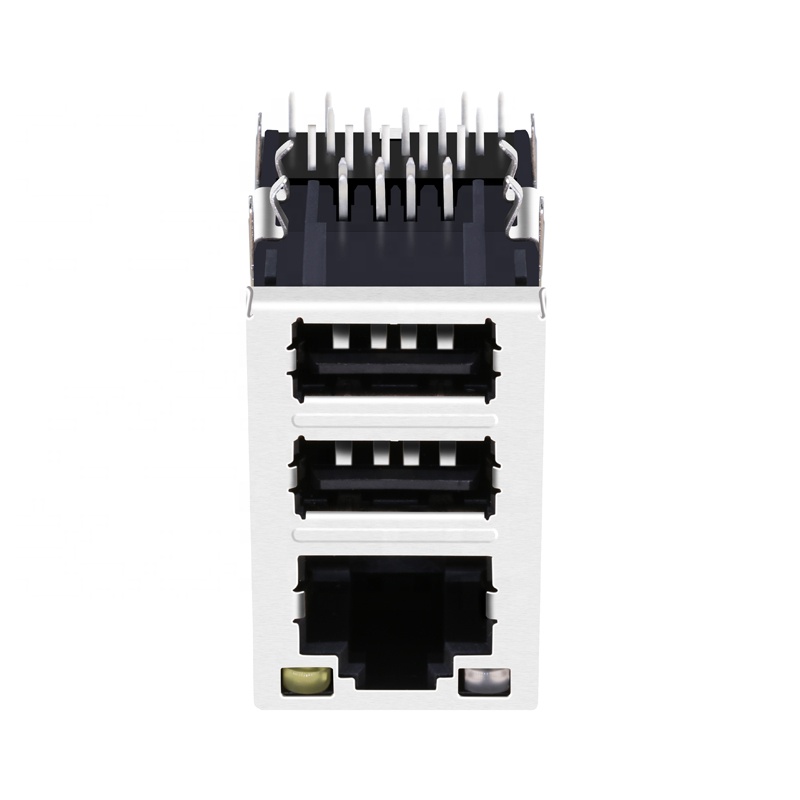

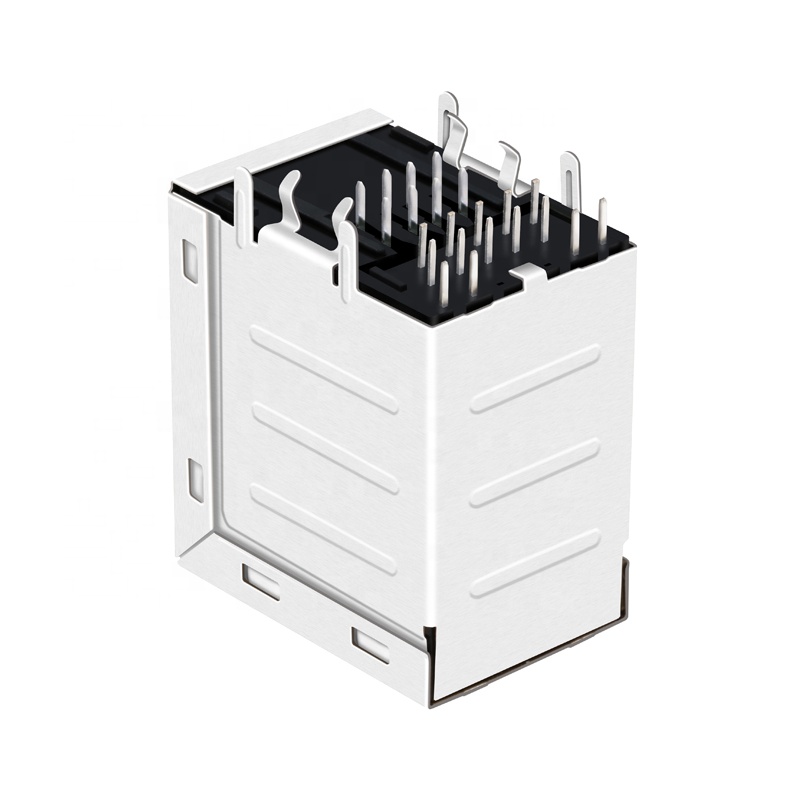

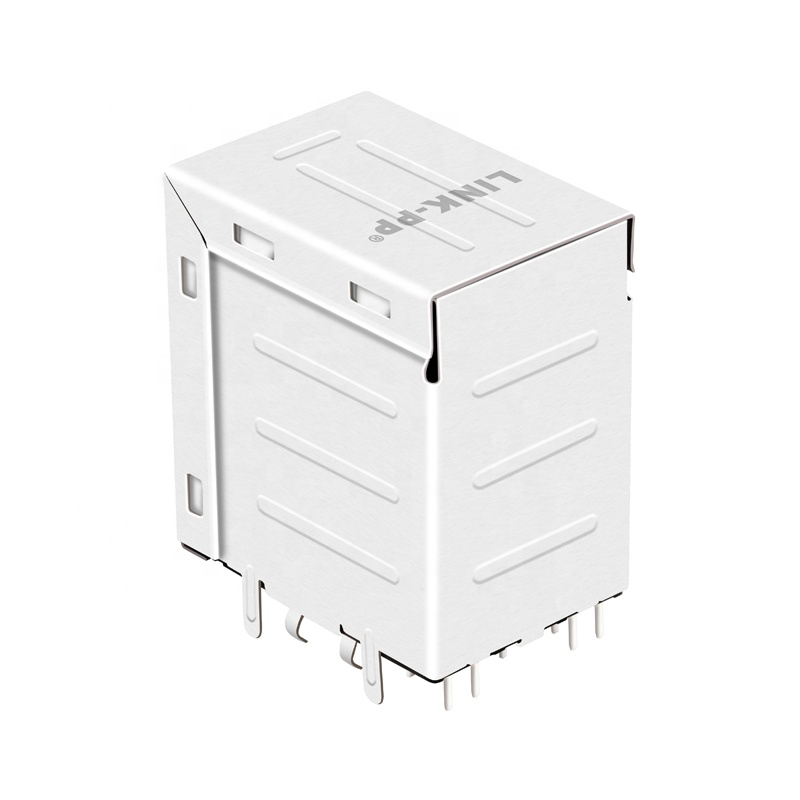

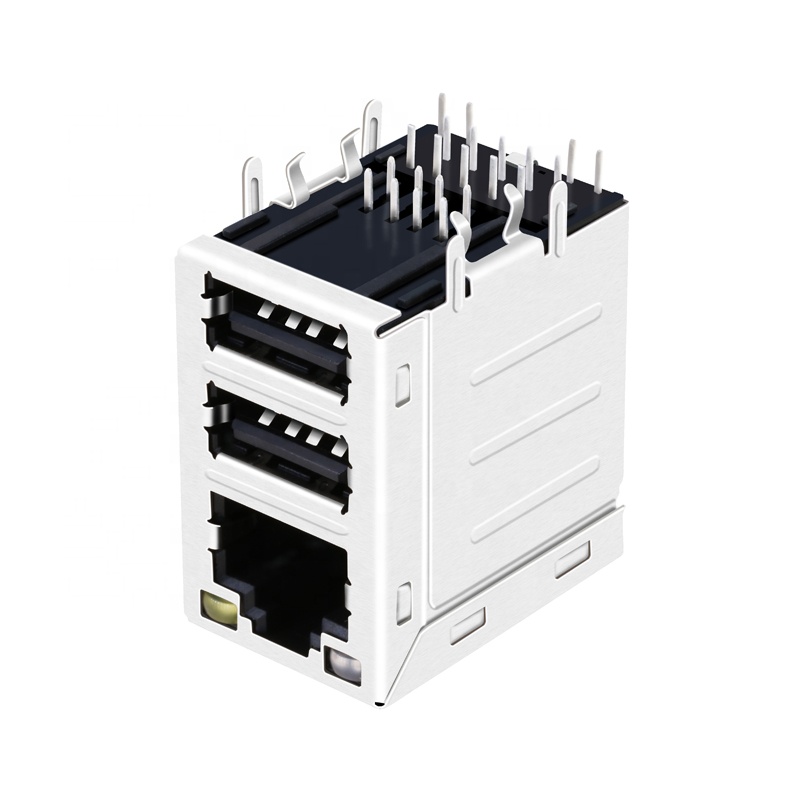

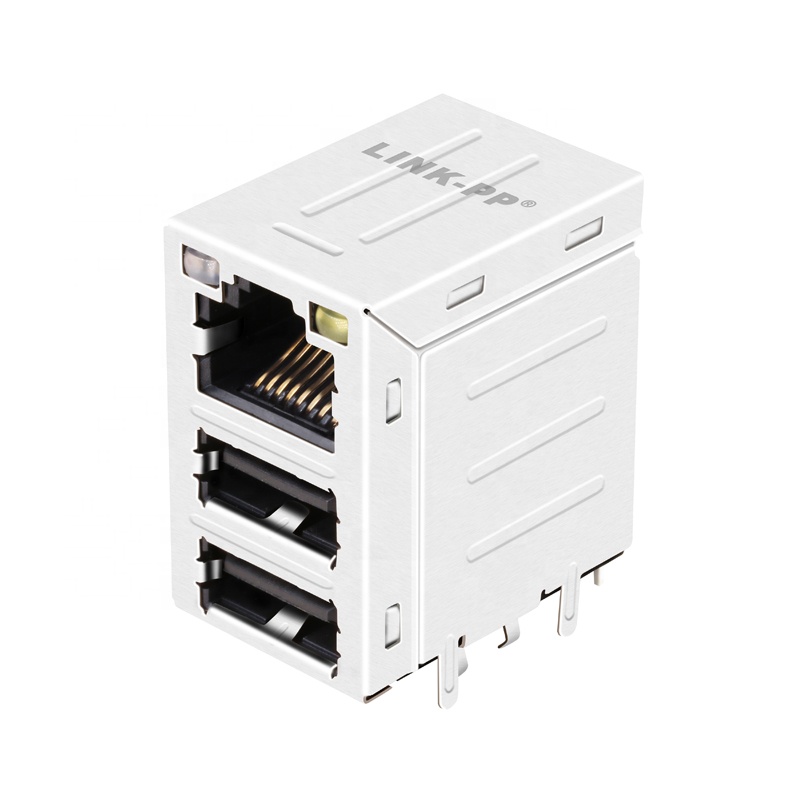

RU1-161A9WGA 1000 Base-T With Dual USB RJ45 Connector Modular Jack

Product Description

RJ45 Connector Product Map
Lan Transformer Product Map
Send Inquiry To Get Latest Price List
RJ45 Connector Product Detail Front RJ45 Connector Product Detail Back
RU1-161A9WGA 1000 Base-T With Dual USB RJ45 Connector Modular Jack
Products Description
Item RJ45 Female Connector
Part Number RU1-161A9WGA
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 12
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Connector Drawing Dimension Connector Side View Drawing Connector Bottom View Layout Connector Package Diagram Connector Testing Waveform Connector Electrical Parameters Connector Environmental Testing
Quality Certificate Banner
Why Choose Us
Advanced Equipment Quality Inspection Safe Packaging Fast Logistic Delivery
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROSH, REACH, CE, and UL. We own advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well.

Main Products:
• 10/100/1000M LAN pulse transformer and filter
• RJ45 connector with 10/100/1000M magnetic
• T1/E1, T3/DS3/E3/STS-1 interface line transformer
• ISDN, HDSL, ADSL and VDSL interface line transformer and splitter

Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem. We have exported our products to more than 30 countries and regions in the world. Our customers cover most of the countries in the world, including Germany, France, England, USA, Singapore, Korea, Canada and Japan.

Our engineering staff is dedicated to identifying, developing and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith of pursuing higher will convince you to be our long-term partner.
Manufacturing Workshop 1 Manufacturing Workshop 2 Quality Analysis Laboratory Exhibition Showroom
FAQ
Q Are you factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connector, lan transformer, RJ11 connector and SFP modules, etc.
Q Can I get a sample before mass production?
Yes, we can offer you free sample to test quality, but you should pay the shipping fee.
Q What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
Q What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
Q Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
Q What is your advantage?
19 years of production experience and we are a partner of global leading companies for many years.
