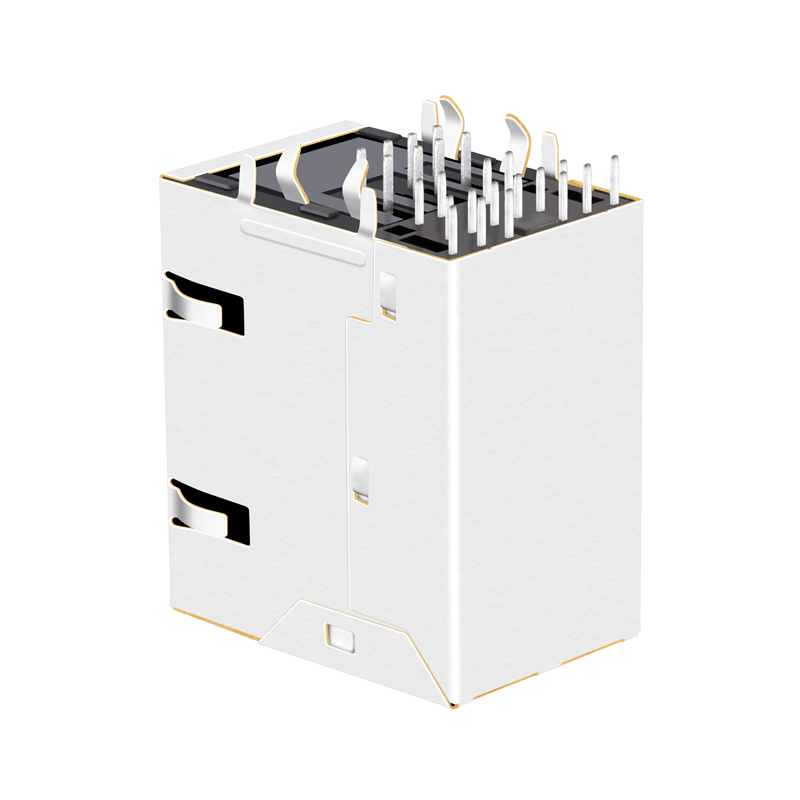

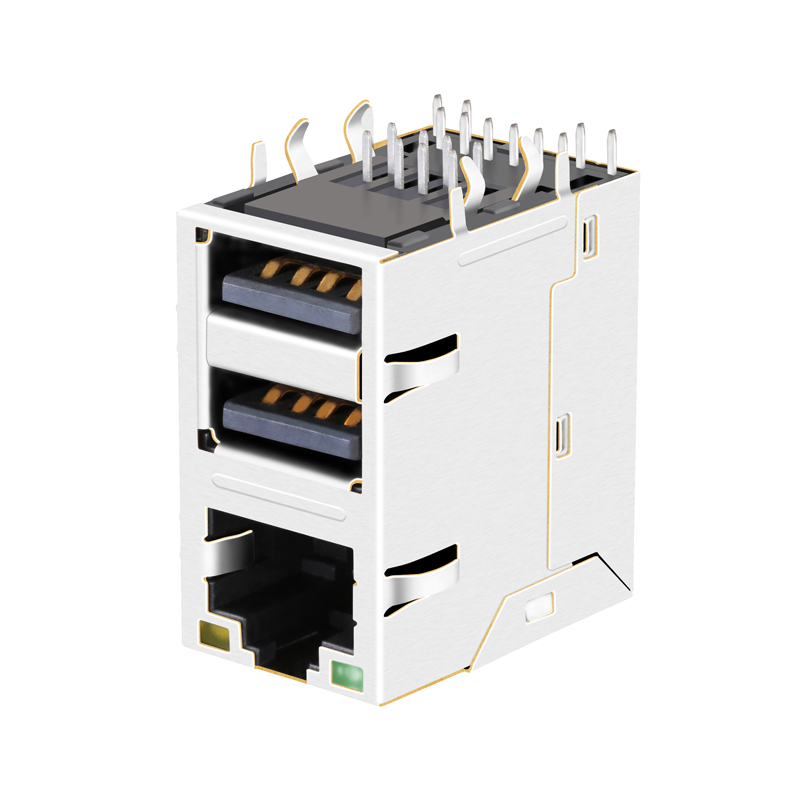

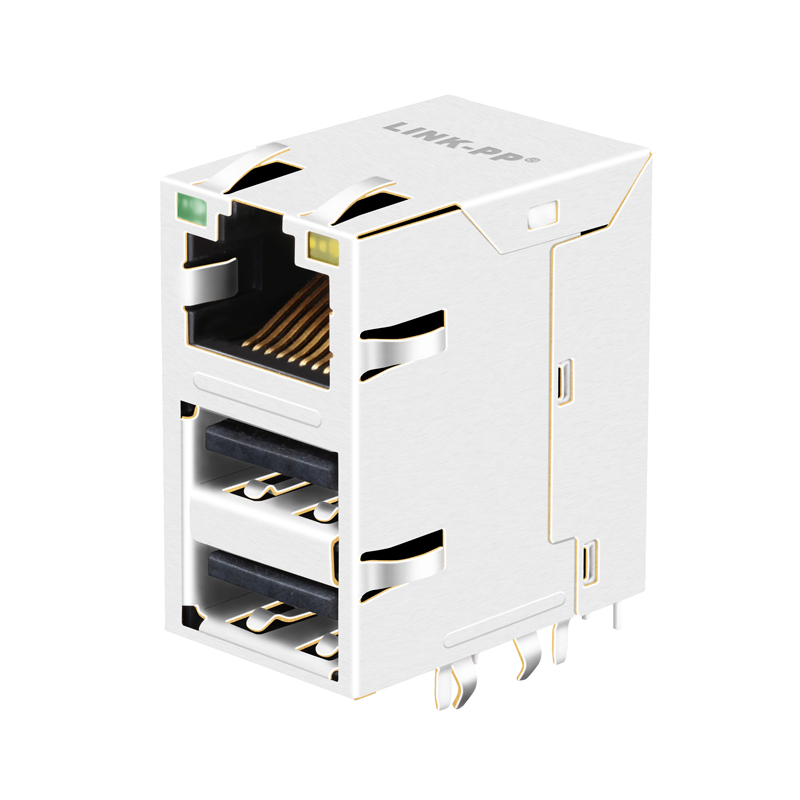

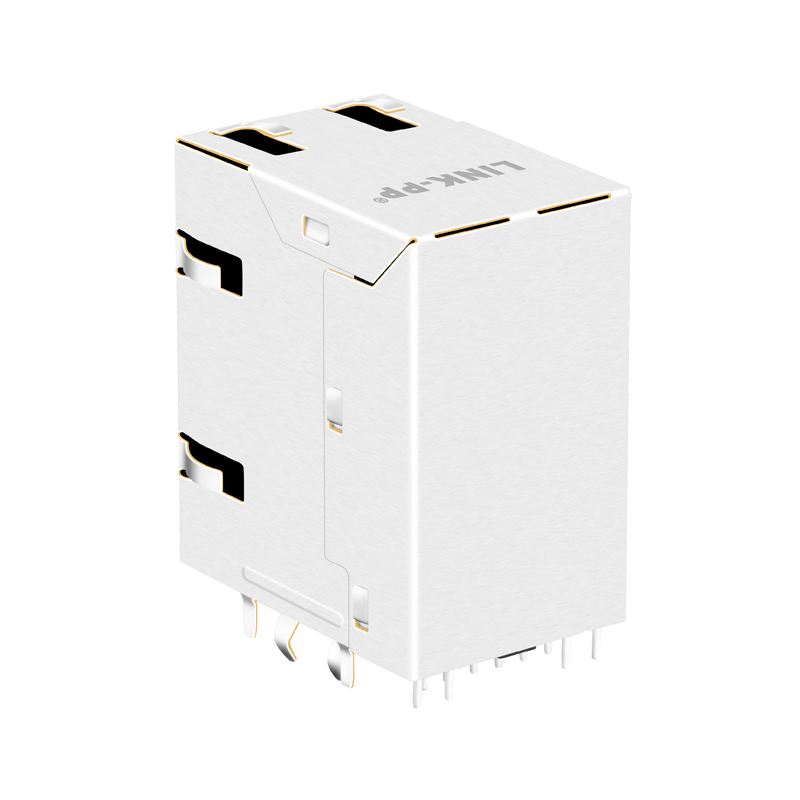

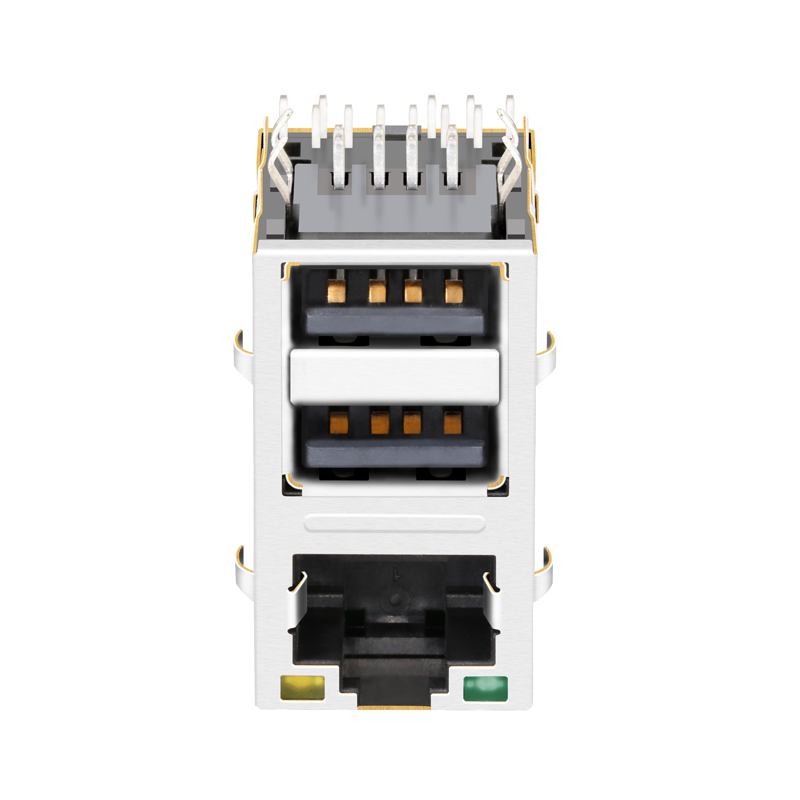

10/100/1000 Base-t Modular Jack RJ45 + USB Stacked Transformers 1x3 RJ45 Connector RUC-161A9RJF
Products Description
Item RJ45 Female Connector
Compatible With RUC-161A9RJF
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports Single Port With USB
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Technical Specifications
Discover Our Product Range
Product Categorization Overview
Features Details 1 Features Details 2 Features Details 3 Features Details 4
Quality Standard 1 Quality Standard 2
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer manufacturer.
Facilities Showcase 1 Facilities Showcase 2 Facilities Showcase 3
Frequently Asked Questions
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should cover the shipping fee.
3. What is your delivery time?
We are ready to ship immediately for stock items, and delivery takes 15-30 days for mass production.
4. What after-service can you offer?
We offer a one-year guarantee period and provide technical support online 24 hours a day.
5. Can you accept OEM/ODM orders?
Yes, please send your inquiries to us so that we can have a detailed discussion regarding custom specs.
6. What is your advantage?
We possess 19 years of dedicated production experience and have been a trusted partner for major global industry leaders for many years.
