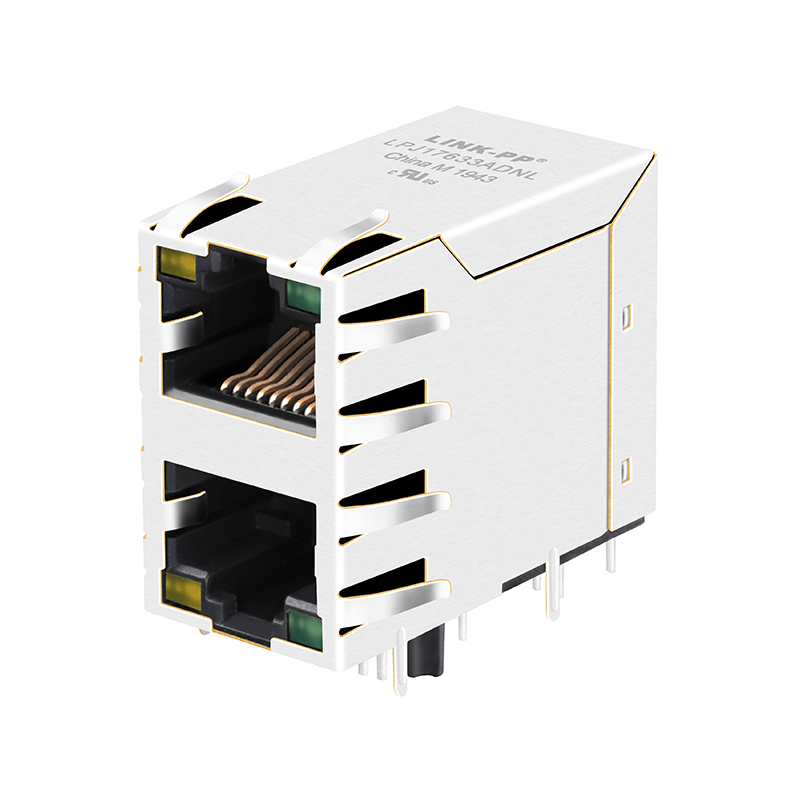

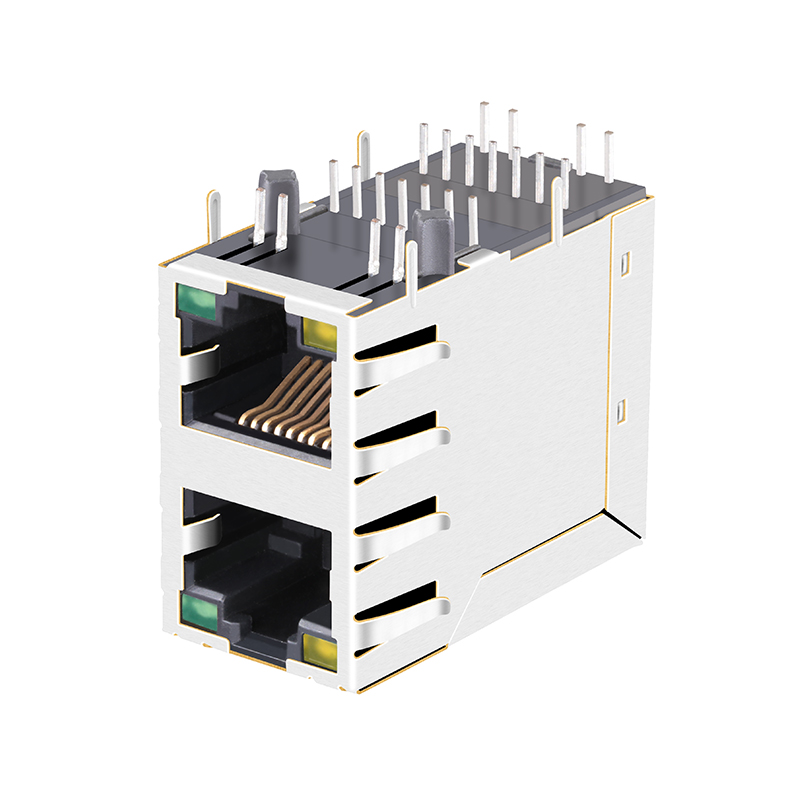

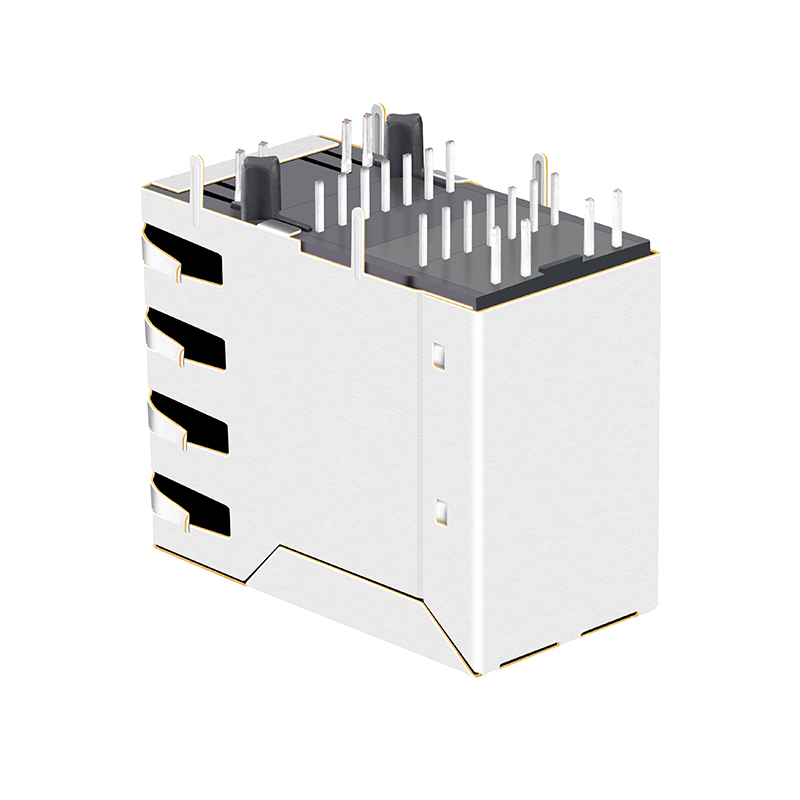

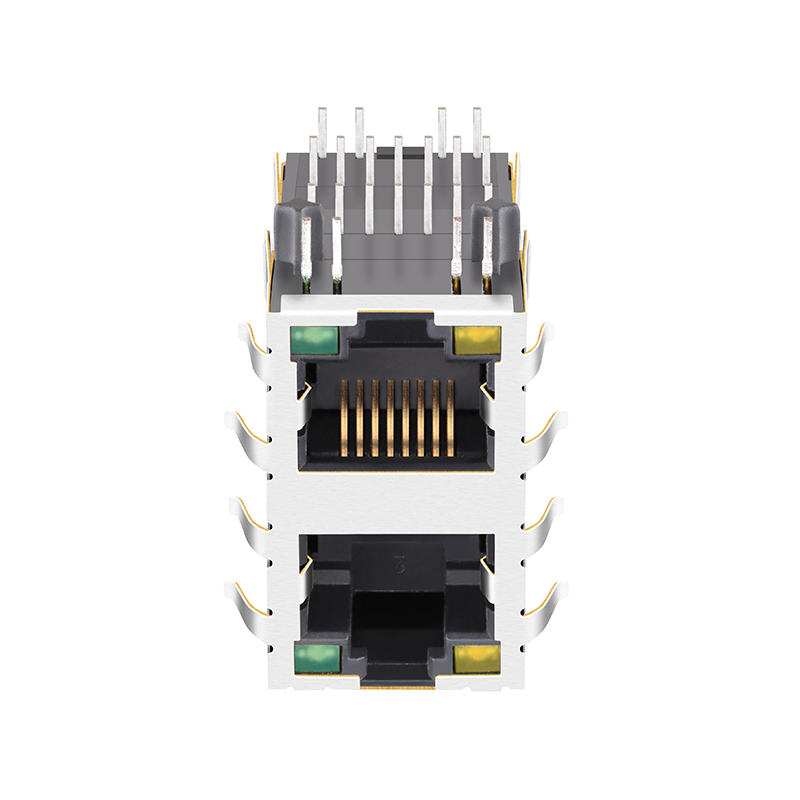

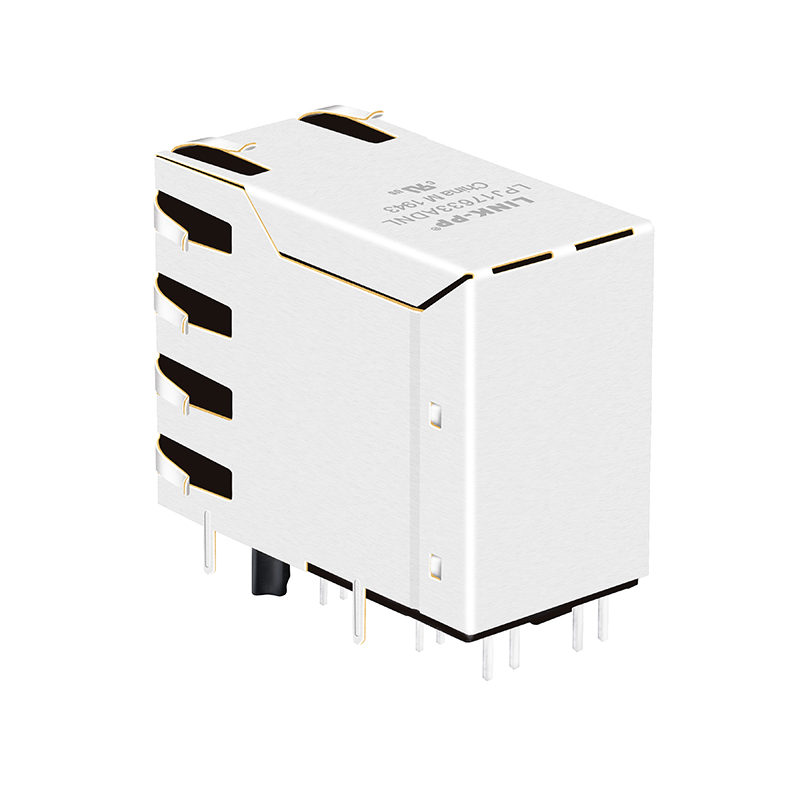

0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack
Part Number
0845-2D1T-H5 / 0845-2D1T-S4 / RM3-ZZ-0020
Application-LAN
ETHERNET(NON PoE)
AutomDX
YES
Bst Circuit
YES
Configuration RX
T,C
Configuration TX
T,C
Contact Mating Area Plating
GOLD 6u"/15u"/30u"
Cores Per Port
4
Diodes
NO DIODES
LED Option
Yellow/Green LEDS
Latch
UP/Down
Number of Ports
2x1 Port
PCB
FR4
PCB Mount Angle
SIDE ENTRY
PCB Retaining Post
T POST
Pin Type
THT SOLDER
RoHS Compliant
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search
YES
Shield EMI Tabs
With
Speed
10/100 Base-T Magnetics
Temperature
-40 TO 85°C / 0 TO 70°C
Turns Ratio RX
1CT:1
Turns Ratio TX
1CT:1
