Product Description

Product Description

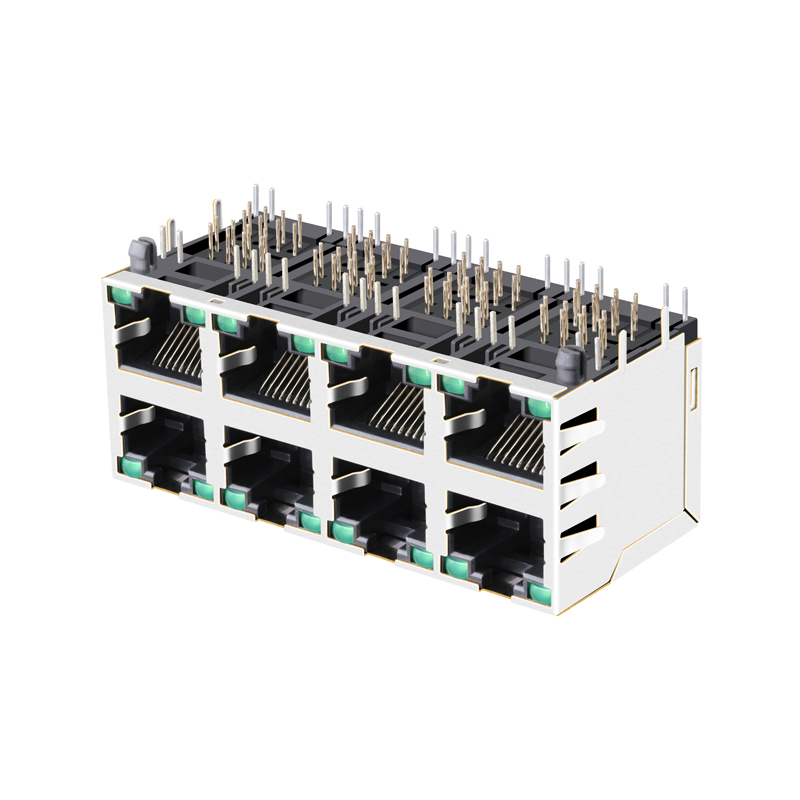

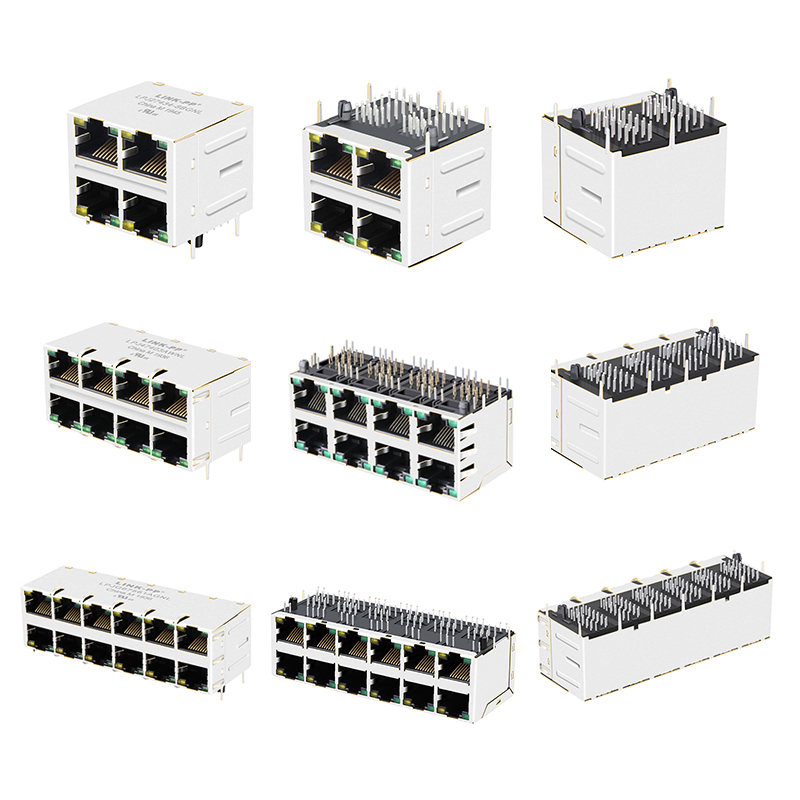

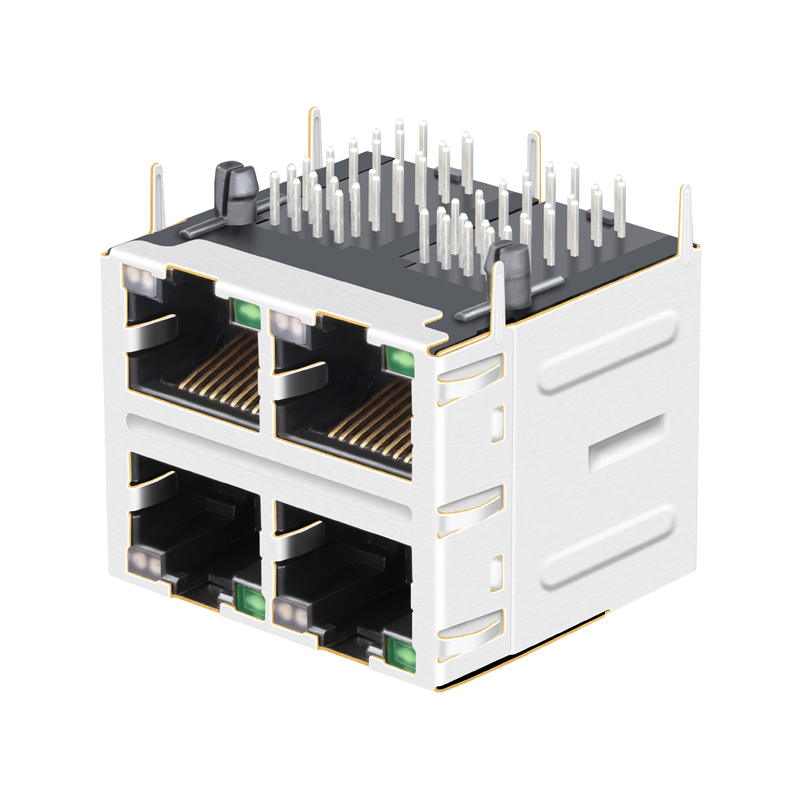

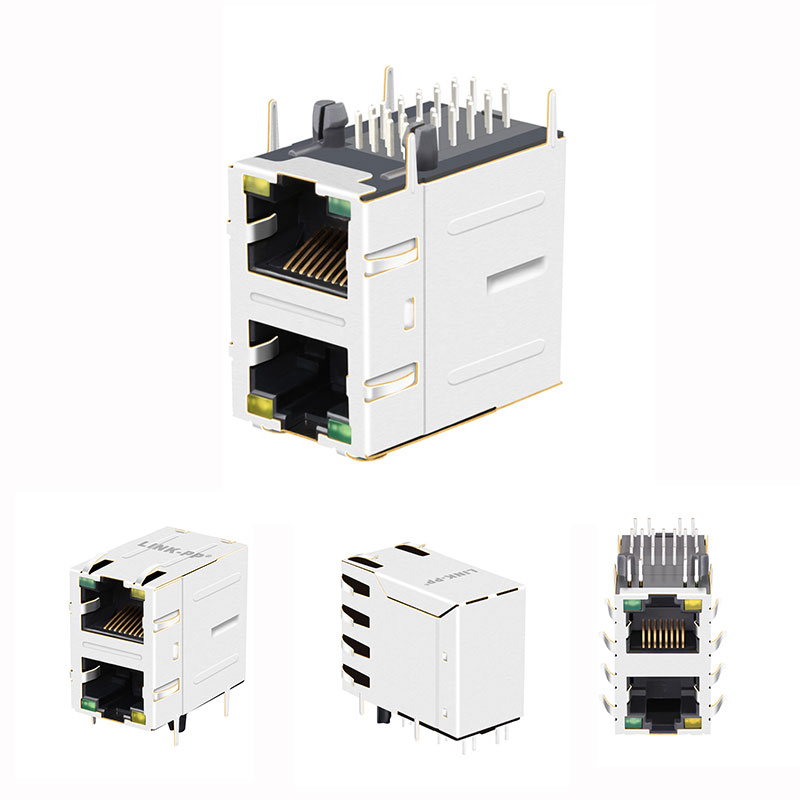

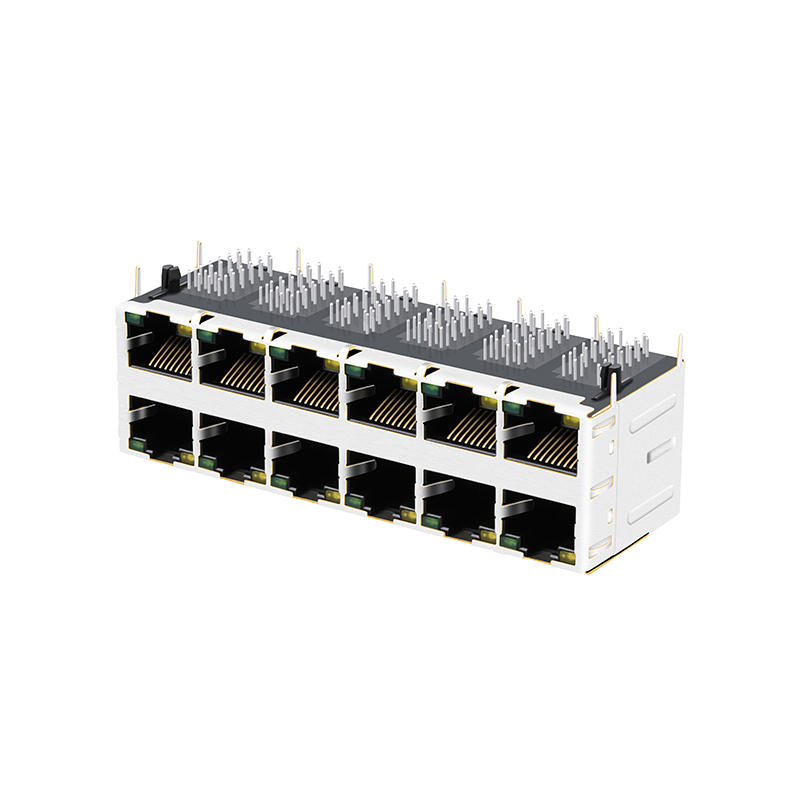

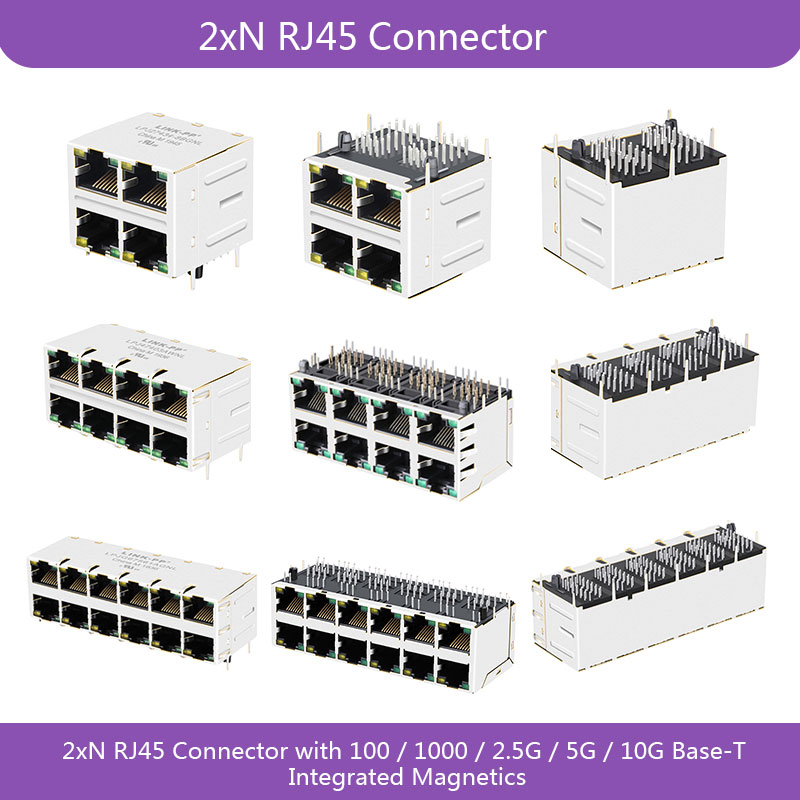

RJ45 Connector Display
✔
RJ45 Connector with integrated transformer / common mode choke.
✔
Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s.
✔
Available in SMT, THT and THT with USB.
✔
Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt.
✔
HPLE products: Improved Common Mode Rejection due to additional NiZn cores.
Specifications
Model NumberRJ45 Filtered Connectors
Part StatusActive
Connector TypeRJ45
Applications-LanEthernet (PoE / Non-PoE)
Speed10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorYellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack4 / 6 / 8 / 12
ShieldingShielded, Emi Finger
Number of Ports2x1, 2x2, 2x4, 2x6, 2x8 Port
FeaturesBoard Guide
Tab DirectionDown / Up
Contact FinishGold
Configuration RX/TXT, C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C / -40°C ~ +85°C
Packing & Delivery
The Package Details:
• Packaging Method: Tray
• Carton Size: 32 x 30 x 31 cm
• G.W./Carton: 8.5 kg
• Qty/Carton: 1200 pcs
• SPQ: 50 pcs
• N.W/pcs: 0.007 kg
Packaging View
Product Showcase
Product 1
Product 2
Product 3
Product 4
Product 5
Product 6
Product 7
Frequently Asked Questions
How is the product quality guaranteed?
We ensure quality through a strict process including a pre-production sample before mass production and a final inspection of all goods before shipment.
What specific products can I purchase here?
We offer a wide range of components including RJ45 Magnetic connectors, LAN transformers, RJ11 Connectors, standard RJ45 Connectors, and SFP modules.
What are the accepted delivery terms for orders?
We support various delivery terms such as FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, and Express Delivery.
Which payment methods and currencies are supported?
We accept multiple currencies including USD, EUR, JPY, CNY, and others. Payment can be made via T/T, L/C, Credit Card, PayPal, and Western Union.
Does the RJ45 connector support Power over Ethernet (PoE)?
Yes, our connectors support Power over Ethernet (PoE) up to 50 Watts and are compatible with IEEE 802.3af/at standards.
What speeds do these filtered connectors support?
The connectors are designed for high-speed networking, supporting 10/100/1000 Base-T all the way up to 10G speeds.
