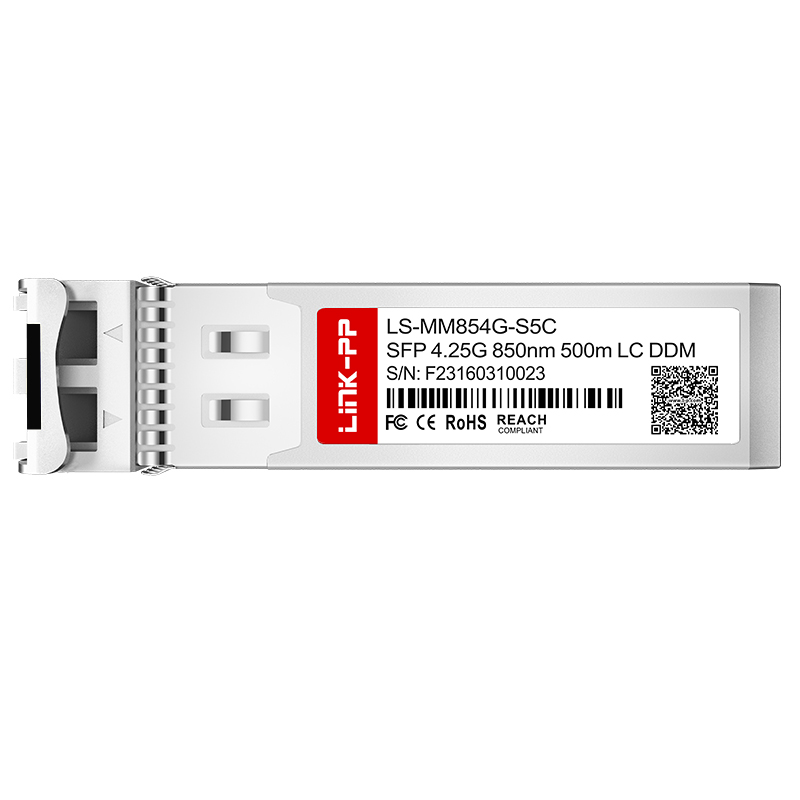

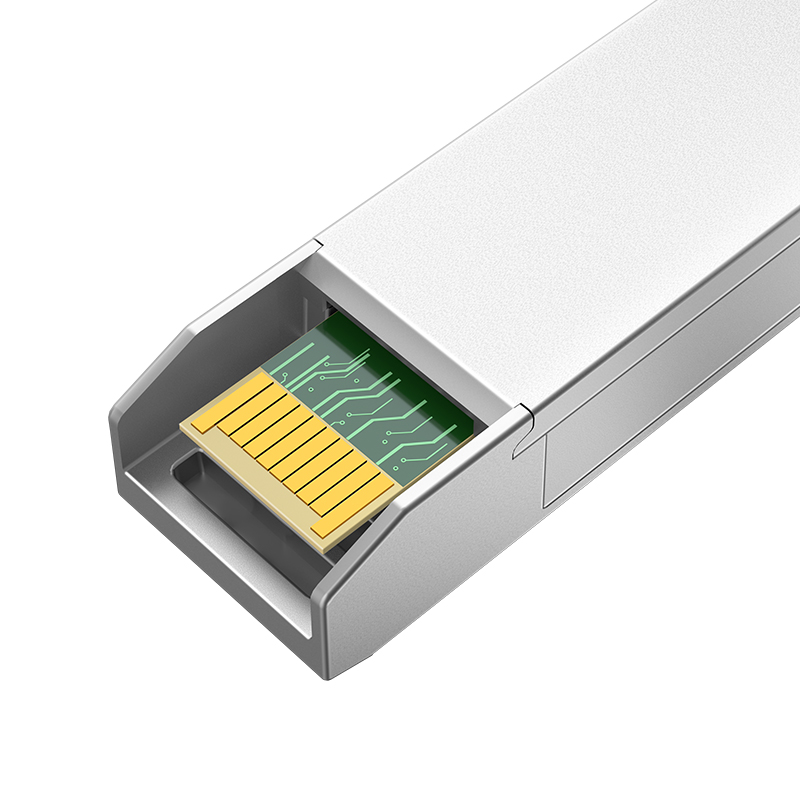

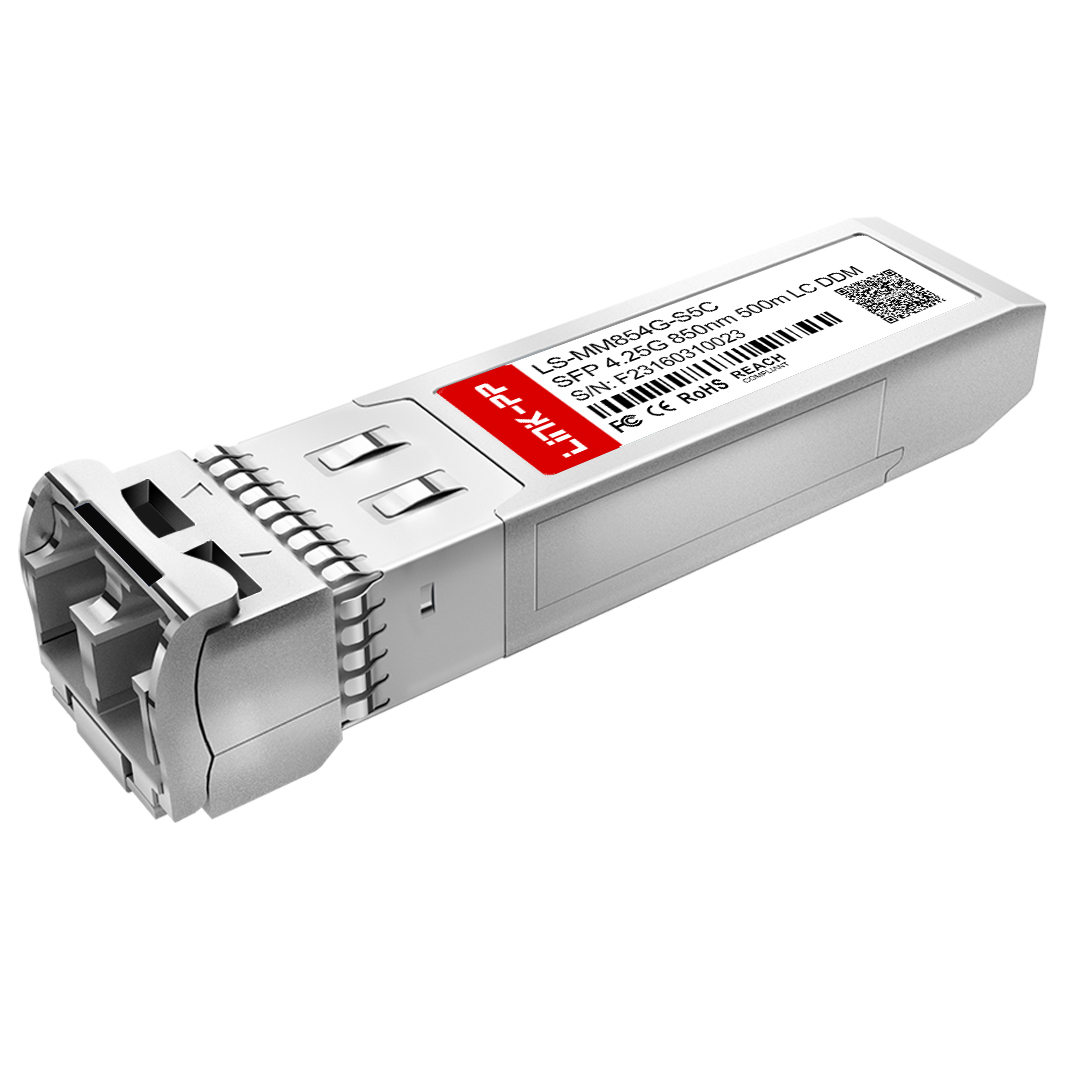

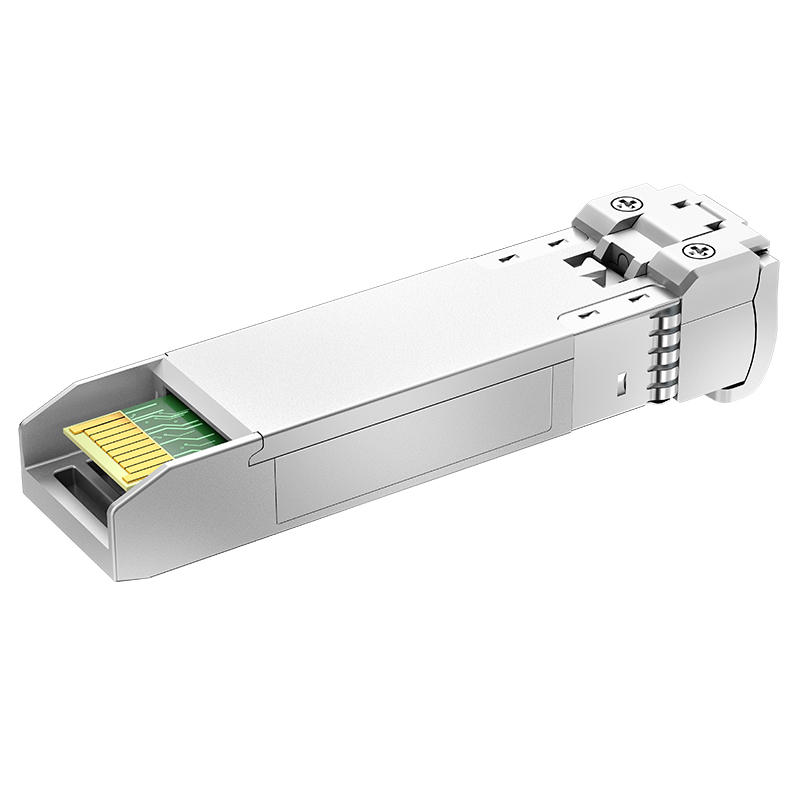

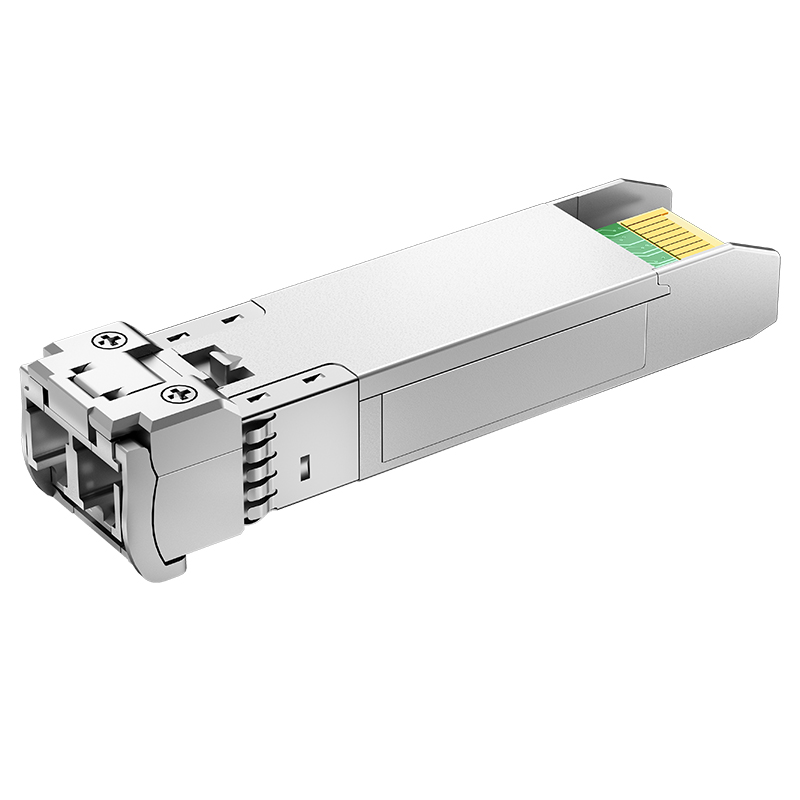

| Technical Specifications | |
|---|---|
| Part Number | LS-MM854G-S5C |
| Form Factor | SFP |
| Max Data Rate | 4.25Gbps |
| Wavelength | 850nm |
| Max Cable Distance | 500m |
| Connector | Duplex LC |
| Media | MMF |
| Transmitter Type | VCSEL |
| Receiver Type | PIN |
| TX Power | -6 ~ 0dBm |
| Receiver Sensitivity | < -13dBm |
| EMC (Electro Magnetic Compatibility) | Supported |
| DDM/DOM | Supported |
| Protocols | MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
| Part Number | Data Rate | Wavelength | Distance | Media | DDM |
|---|---|---|---|---|---|
| LS-MM854G-S1C | 4.25Gbps | 850nm | 150m | Multi-mode | Yes |
| LS-MM852G-S3C | 4.25Gbps | 850nm | 300m | Multi-mode | Yes |
| LS-MM854G-S5C | 4.25Gbps | 850nm | 500m | Multi-mode | Yes |
| LS-SM314G-02C | 4.25Gbps | 1310nm | 2km | Single Mode | Yes |
| LS-SM314G-04C | 4.25Gbps | 1310nm | 4km | Single Mode | Yes |
| LS-SM314G-10C | 4.25Gbps | 1310nm | 10km | Single Mode | Yes |
| LS-SM314G-40C | 4.25Gbps | 1310nm | 40km | Single Mode | Yes |
| LS-SM554G-40C | 4.25Gbps | 1550nm | 40km | Single Mode | Yes |
We provide end-to-end DWDM solutions with a comprehensive range of optical devices - from active modules to passive components, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR, among others.
To support high-capacity data transmission in modern data centers, we have developed a broad portfolio of high-speed optical modules with data rates spanning from 10G to 800G, delivering reliable interconnection solutions.
We provide highly reliable, high-performance products utilizing mature laser technology and mainstream chip designs. Our offerings support Dark Fiber, WDM, Radio over Fiber, High-Speed, Mid-haul, and Back-haul links to cover 4G/5G deployment scenarios.
Designed for global network infrastructures, we offer complete FTTx optical fiber access solutions, spanning all-optical platforms and hybrid optical-copper access architectures.
To ensure continuous line performance and ease of operation, we supply complete optical cable O&M solutions incorporating both Optical Line Protection (OLP) and Optical Line Monitoring (OLM) systems.
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROHS, REACH, CE, and UL. Our state-of-the-art production and testing systems are sourced internationally to maintain strict quality standards. Established in 1997, our facility employs around 2,000 personnel. With a high production capacity of 3,000K units monthly, we are equipped to support demands with rapid lead times.
We also provide a full series of optical modules suited for fixed access, wireless networks, carrier Ethernet, wavelength division multiplexing (WDM), and data communication. This includes high-speed interconnect infrastructure developed for cloud computing environments and ultra-broadband networks.
