45F-10101DYD2NL JW0-0009NL C893-1AX1-E1 Magnetic RJ45 Connector Jack With Dual USB

Product Description

Product Presentation Product Diagram

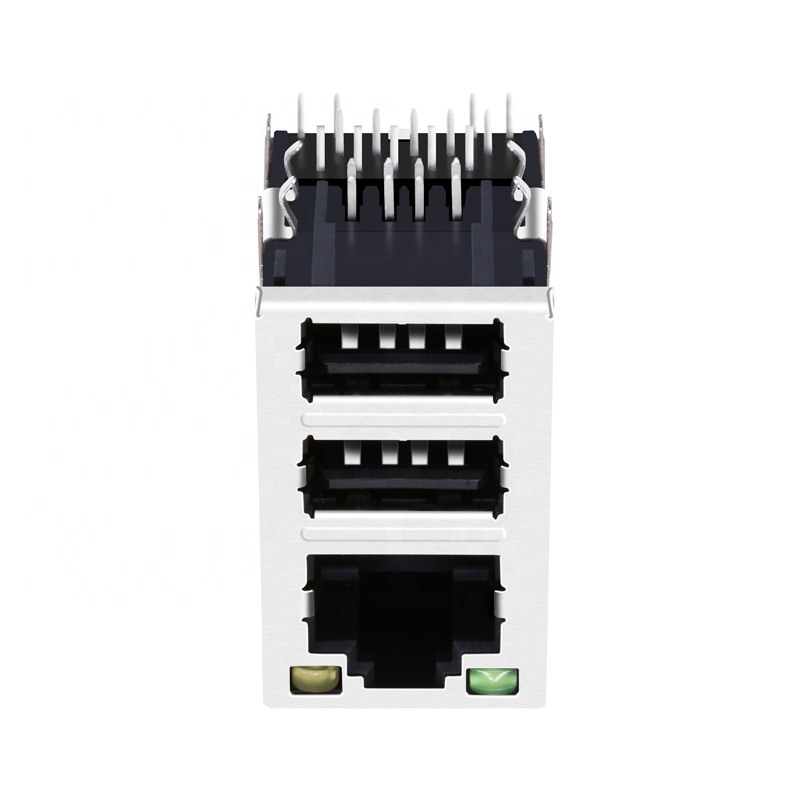

45F-10101DYD2NL JW0-0009NL C893-1AX1-E1 Magnetic RJ45 Connector Jack with Dual USB

Products Description

Item RJ45 Female Connector
Manufacturer Part Number LPJU5009B28NL
Alternative Part Number C893-1AX1-E1
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports Single Port With Dual USB
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Connector Models Lan Transformer Range
Send Inquiry To Get Latest Price List

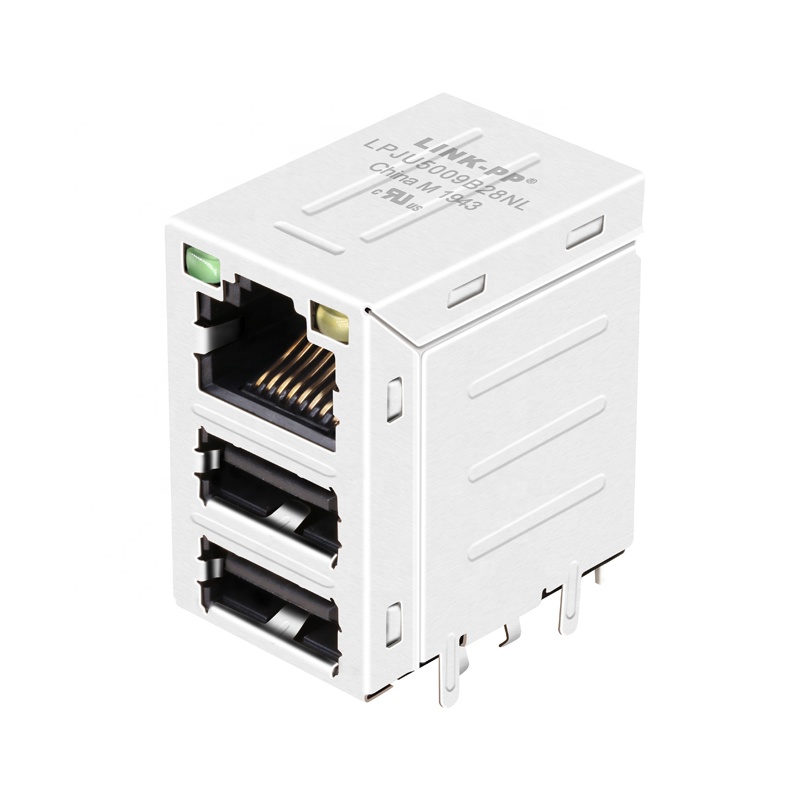

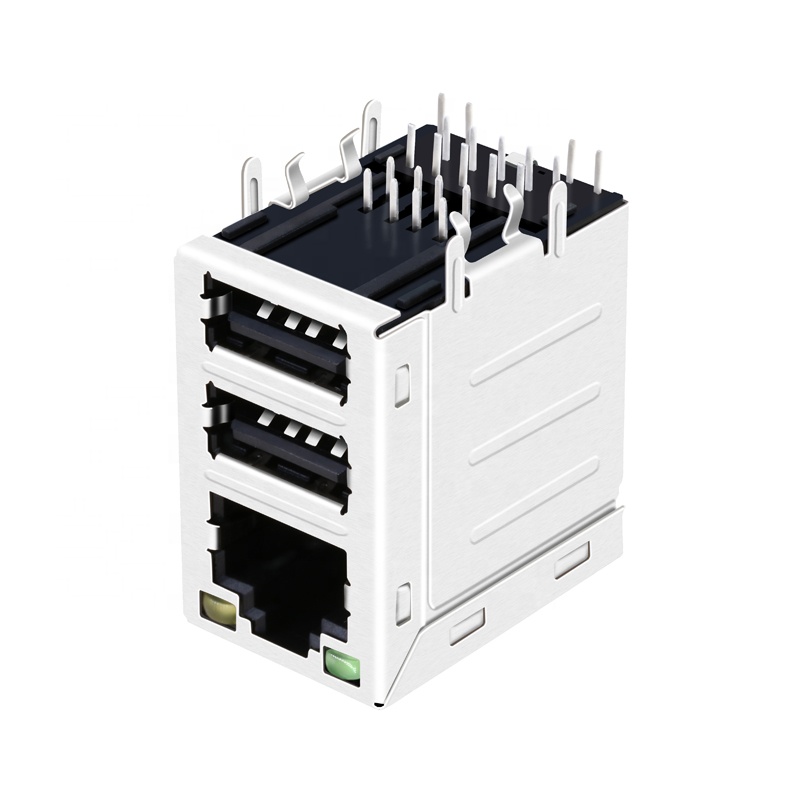

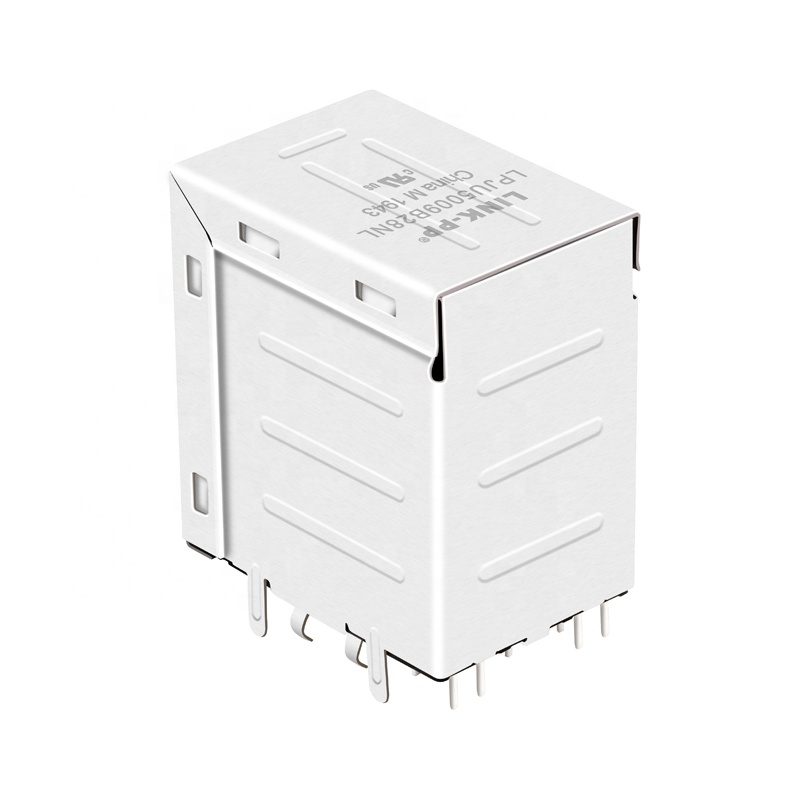

Product Details View 1 Product Details View 2 Product Details View 3 Product Details View 4 Product Details View 5 Product Details View 6
Product Details View 7
Product Specifications Drawing

Why Choose Us

Manufacturing Capability Quality Control Process Advanced Machinery Global Supply Chain

Company Profile

A specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owns advanced manufacturing facilities and test equipments imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to delivery the goods within the short time. Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well.

Main Products:
10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem.

We have exported our products to more than 30 countries and regions in the world. Our customers cover most of the countries in the world, including Germany, France, England, USA, Singapore, Korea, Canada and Japan.

Main Customers: ZNE, JABIL, FOXCONN, H3C, FLEXTRONICS, IBM, TEXAS INSTRUMENTS TELECOMMUNICATION TECHNOLOGIES LLC.

Our engineering staff is dedicated to identifying, developing and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith of pursuing higher will convince you to be our longterm friend.
Factory Overview 1 Factory Overview 2 Manufacturing Line Testing Lab

FAQ

Q1 Are you factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors and SFP modules, etc.
Q2 Can I get a sample before mass production?
Yes, we can offer you free sample to test quality, but you should pay the shipping fee.
Q3 What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
Q4 What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
Q5 Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
Q6 What is your advantage?
19 years of production experience and we are Intel's and Jabil's partner for many years.
