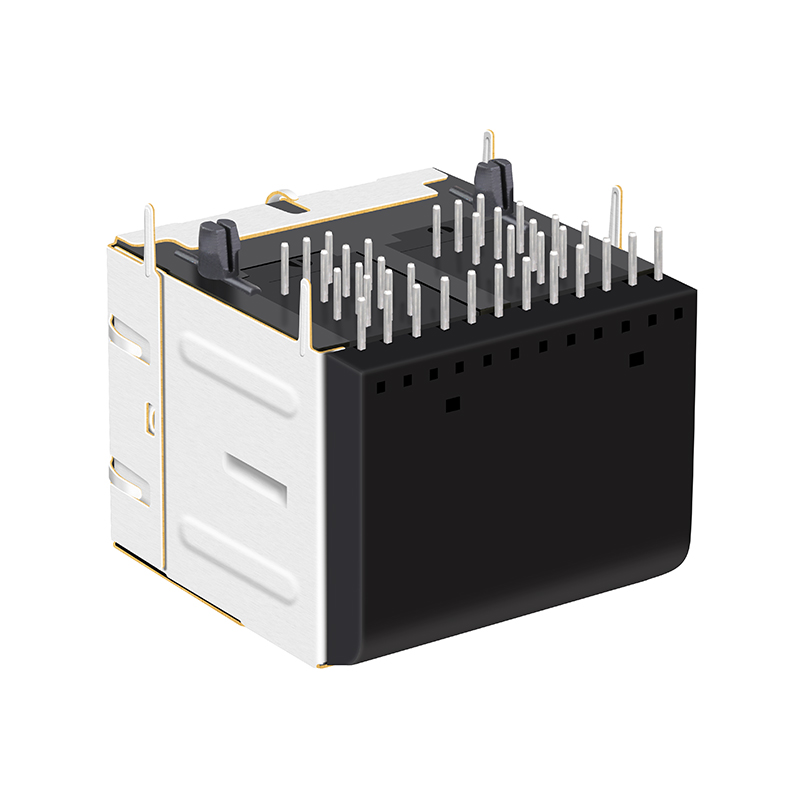

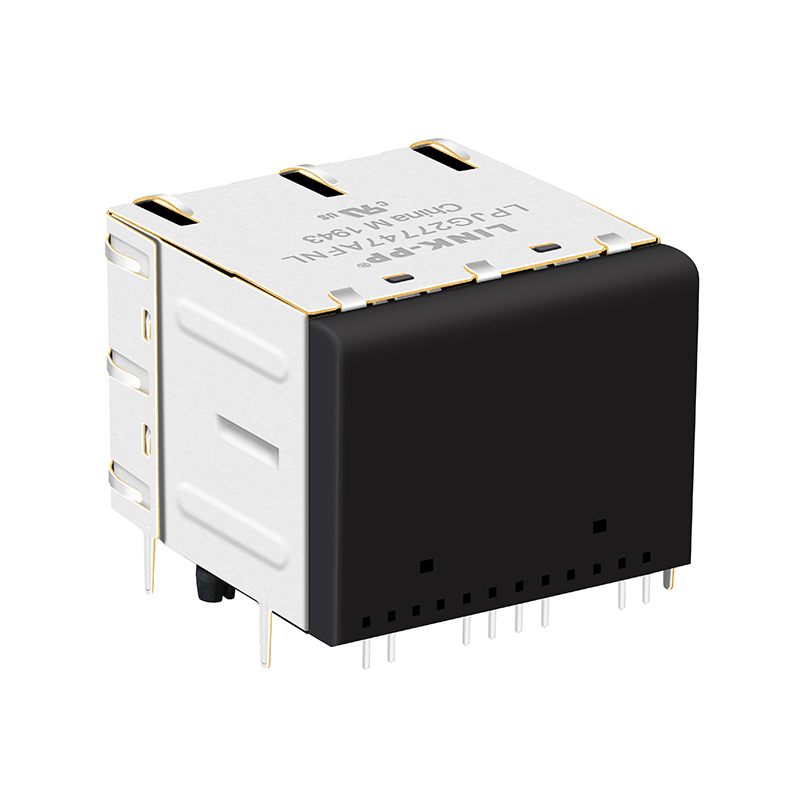

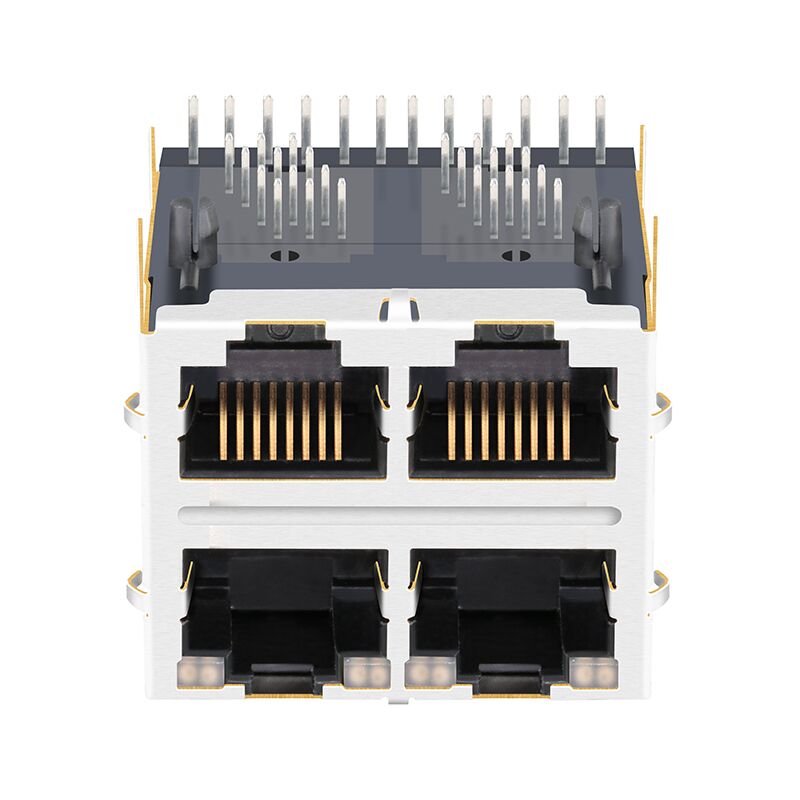

JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
1 / 5
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks

JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks

Send Inquiry

Product Description

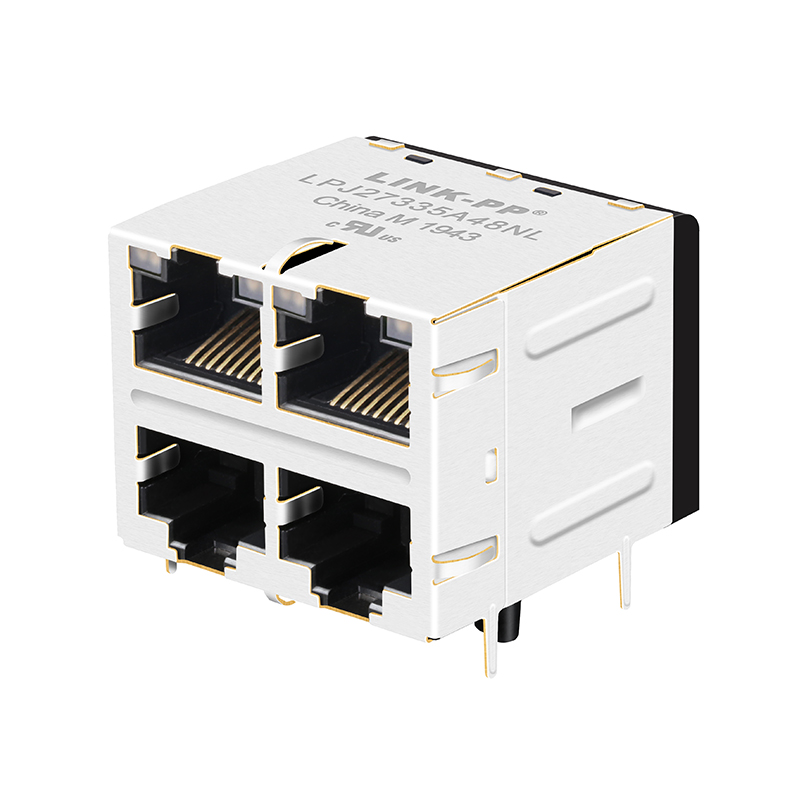

Product Image 1

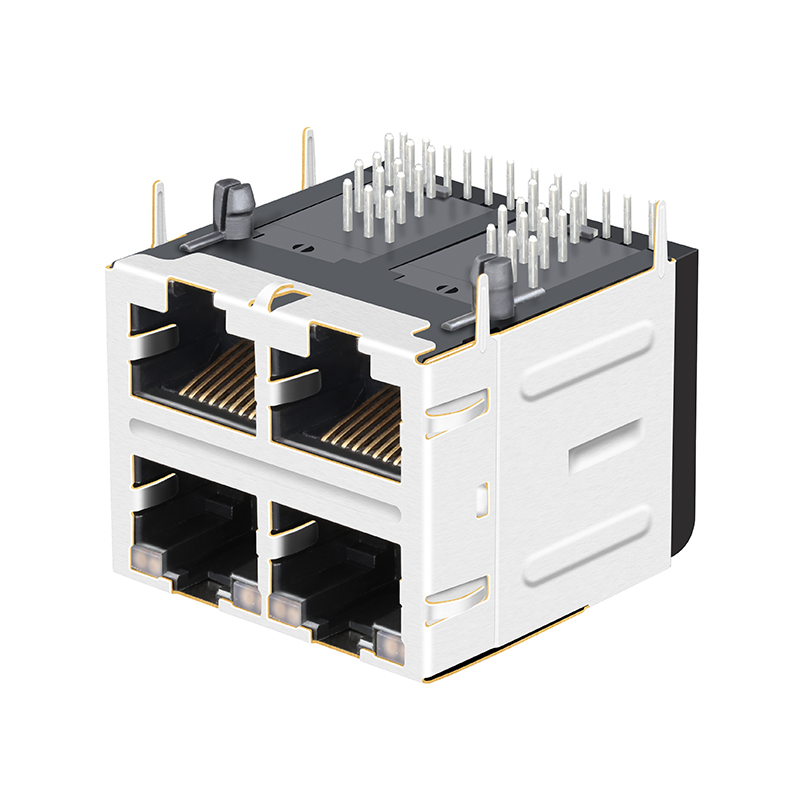

Product Image 2

Specifications

Item Value
Part Number LPJ27335A48NL
Cross Reference Part Number JX20-0252NL
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(Non_PoE)
Speed 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green&Orange/Green&Orange Led
Number of Cores per Jack 4
Shielding Shielded, Emi Finger
Number of Ports 2x2 Port
Features Board Guide
Tab Direction Both
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C
Product Layout Diagram
Product Dimensional Drawing
Product Circuit Schematic 1
Product Circuit Schematic 2
Product Package Size
Product Testing Reference

Product Overview

A specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE, and UL. Equipped with advanced manufacturing and testing instruments, we provide professional complete solutions for magnetic components alongside strong technical support. Our products are widely used in networking and communication equipment.

Main Products:

  • 10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Production Process 1
Production Process 2
Production Process 3

Frequently Asked Questions

Q1: Are you a manufacturer or trade company?
We are a manufacturer specialized in RJ45 connectors and LAN Transformers for more than 23 years.
Q2: Can I get some samples?
Yes, 3-5 pcs free samples are available for your test. Small batches are also acceptable.
Q3: Is OEM service available?
Yes. We have rich experience and capability to put your design and idea into real products, including customized laser-printed marking.
Q4: How about the lead time?
We have a professional and efficient production team, and usually, we can ship within 30 days. For specific order details, please contact us.
Q5: What is the operating temperature range for this connector?
The operating temperature range is -40°C to 85°C, designed to withstand demanding industrial network environments.
Q6: What network speeds and applications are supported?
This component supports 10/100 Base-T speeds with AutoMDIX and is designed specifically for Non-PoE Ethernet applications.
