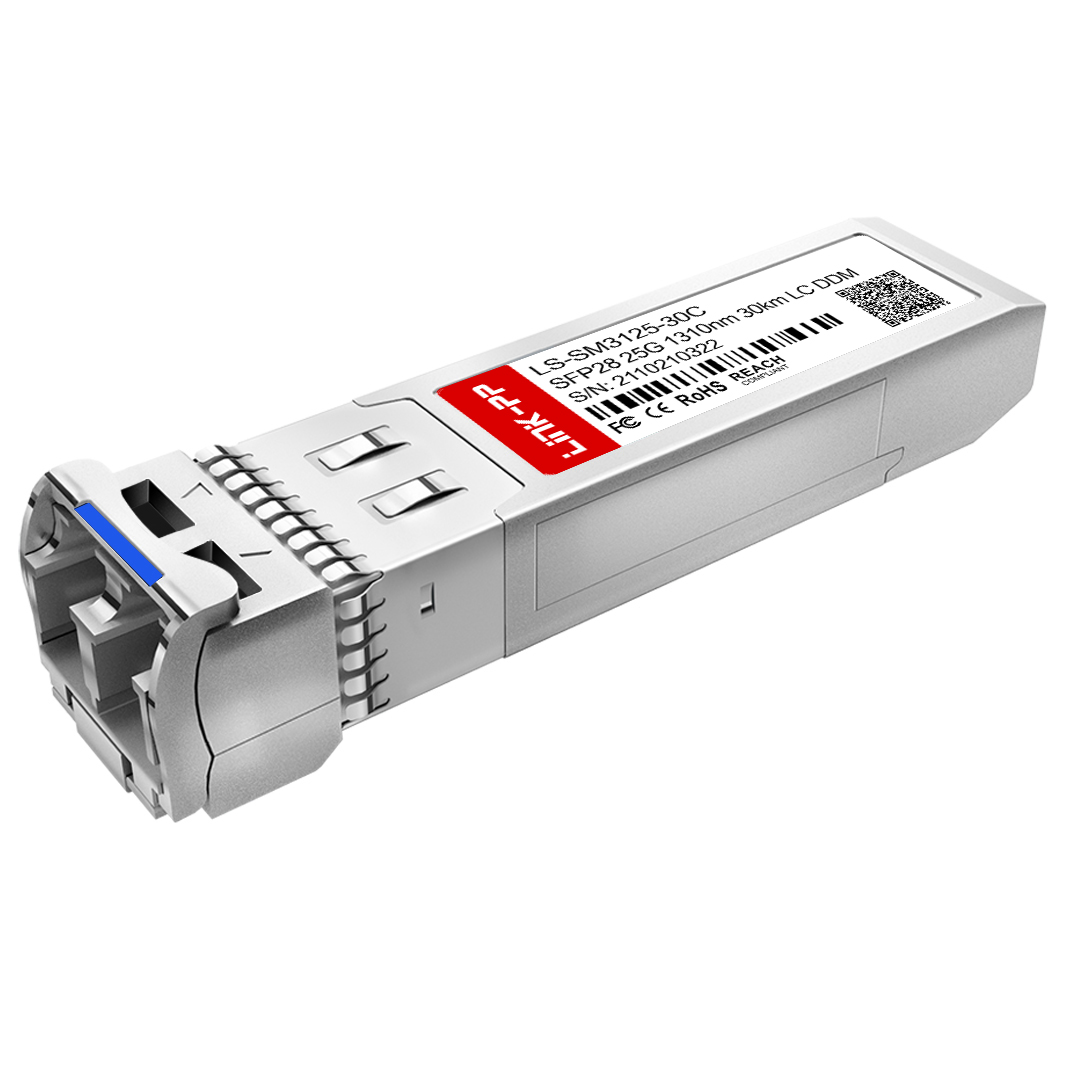

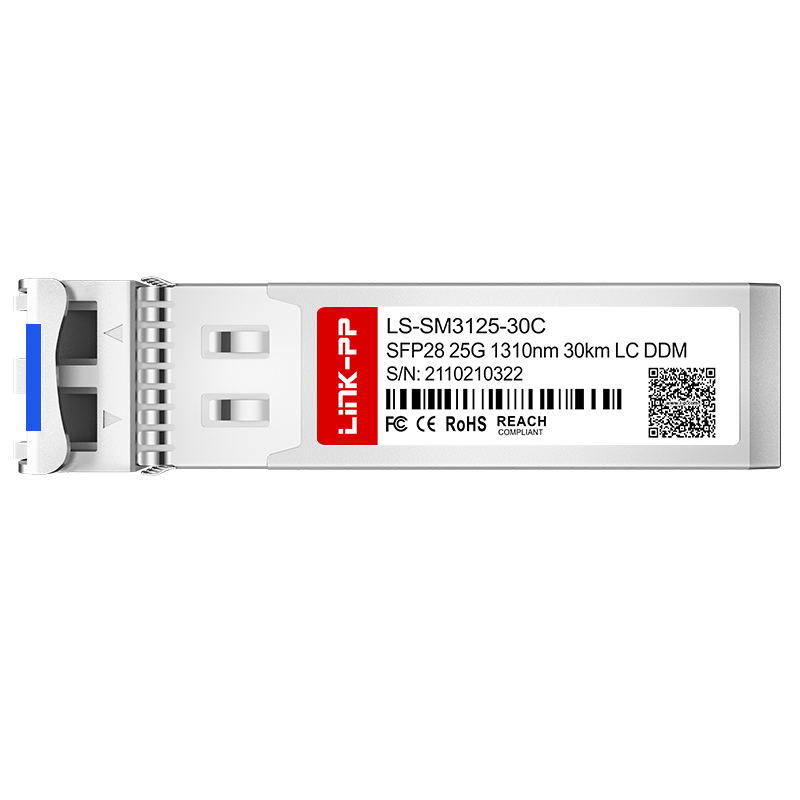

SMF 1310nm Single Mode 25G SFP28 30km DDM Dual LC Fiber Optical Transceiver Module

1 / 5

SMF 1310nm Single Mode 25G SFP28 30km DDM Dual LC Fiber Optical Transceiver Module

Send Inquiry

Product Description

Products Description

Item	25G SFP28 Transceiver
Part No.	LS-SM3125-30C
Part Status	Active
Form Factor	SFP28
Max Data Rate	25Gbps
Wavelength	1310nm
Max Cable Distance	30km
Media	SMF
Connector	Duplex LC
Optical Component	DML/APD
TX Power	0~6dBm
Receiver Sensitivity	<-19dBm
Receiver Overload	-4dBm
Power Consumption	≤2.2W
Extinction Ratio	4dB
DDM/DOM	Supported
Commercial Temperature Range	0°C to 70°C / -40°C to 85°C
Protocols	MSA Compliant, CPRI, eCPRI
Warranty	5 Years
Sample	Available

View Our Solution

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Applications & Scenarios

Optical Transport Networks

We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.

Wireless

We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.

FTTx

Aim to global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.

Subsystems

To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

⚙ Related Products SFP Cage ⚙

Why Choose Us

Frequently Asked Questions

Are you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, with shipping fees covered by the customer.

What is your delivery time?

Ready-to-ship options are available for items in stock, and the delivery timeline for mass production is typically 15-30 days.

What after-sales service do you offer?

We offer a one-year guarantee period along with 24-hour online technical support.

Can you accept OEM/ODM orders?

Yes, we accept custom orders. Please send your inquiries to us so we can discuss the details.

What is your core advantage?

We hold over 19 years of production experience and have been a trusted partner for global industry leaders for many years.
