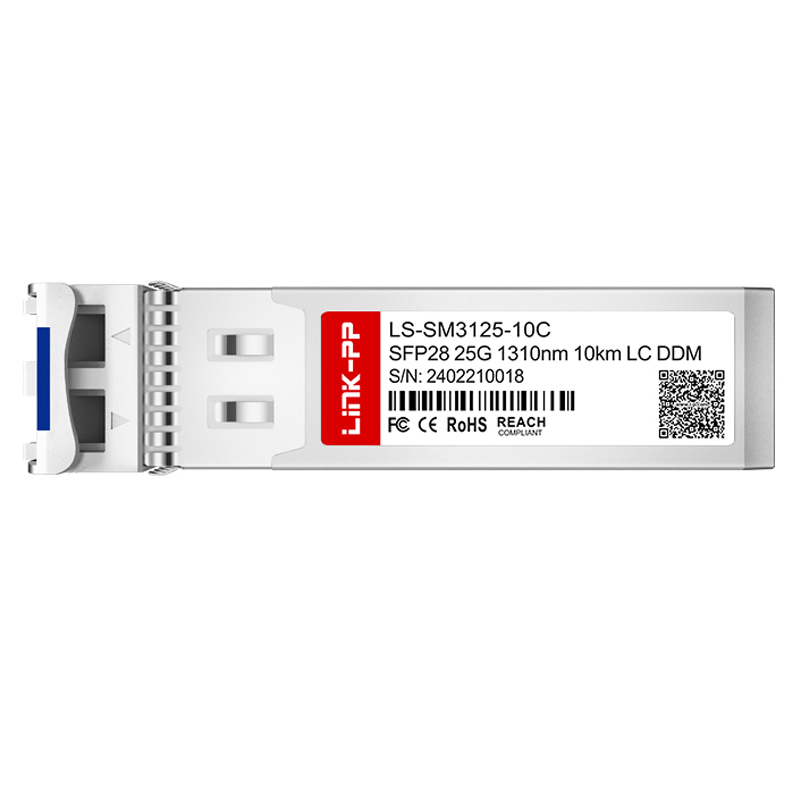

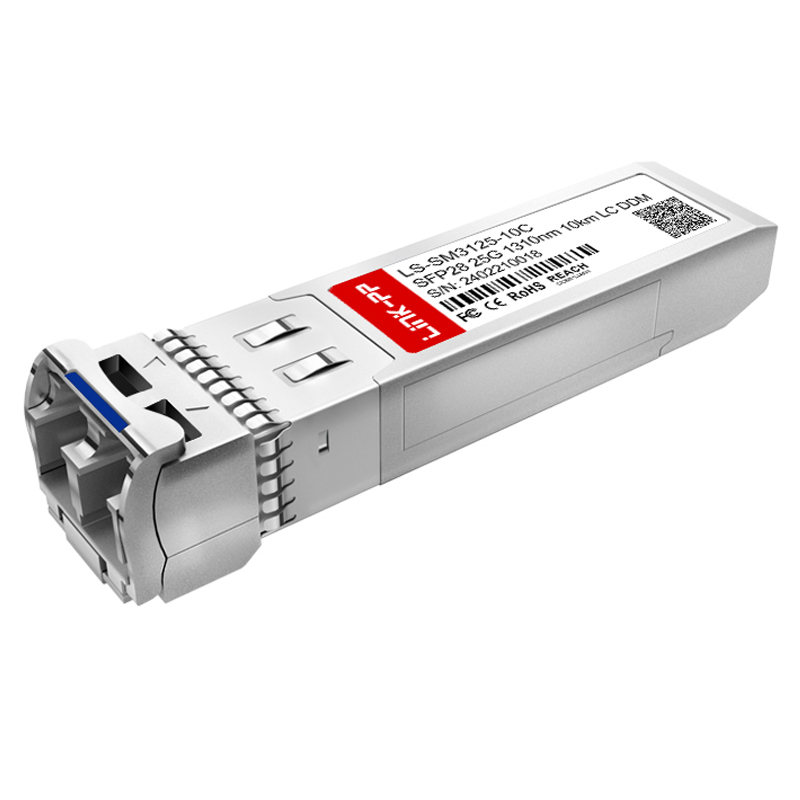

Single Mode 1310nm 25G SFP28 LR 10km Duplex LC SMF Optical Transceiver Module
Single Mode 1310nm 25G SFP28 LR 10km Duplex LC SMF Optical Transceiver Module
Single Mode 1310nm 25G SFP28 LR 10km Duplex LC SMF Optical Transceiver Module
Single Mode 1310nm 25G SFP28 LR 10km Duplex LC SMF Optical Transceiver Module
Single Mode 1310nm 25G SFP28 LR 10km Duplex LC SMF Optical Transceiver Module
1 / 5
Single Mode 1310nm 25G SFP28 LR 10km Duplex LC SMF Optical Transceiver Module
Single Mode 1310nm 25G SFP28 LR 10km Duplex LC SMF Optical Transceiver Module
Single Mode 1310nm 25G SFP28 LR 10km Duplex LC SMF Optical Transceiver Module
Single Mode 1310nm 25G SFP28 LR 10km Duplex LC SMF Optical Transceiver Module
Single Mode 1310nm 25G SFP28 LR 10km Duplex LC SMF Optical Transceiver Module

Single Mode 1310nm 25G SFP28 LR 10km Duplex LC SMF Optical Transceiver Module

Send Inquiry

Product Description

Product Specifications
Item 25G SFP28
Compatible Cisco, Juniper, Arista, Brocade, Dell, etc.
Part Status Active
Form Factor SFP28
Max Data Rate 25.78Gbps
Wavelength 1310nm
Max Cable Distance 10km
Media SMF
Connector Duplex LC
Optical Component DFB/PIN
TX Power -4.5~2dBm
Receiver Sensitivity <-12dBm
Receiver Overload 2dBm
Power Consumption <1.2W
Extinction Ratio 3.5dB
DDM/DOM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols MSA Compliant, CPRI, eCPRI
Warranty 5 Years
Sample Available
View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transceiver Module
Optical Transceiver Process
Transceiver Application
Optical Module Details
Product Options Matrix
Performance Test Diagram
Specifications Diagram 1
Specifications Diagram 2
Related Products SFP Cage
Related SFP Cage
Why Choose Us
Quality Standard
Testing Facility
Product Compliance
Fast Shipping
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE, and UL. We own advanced manufacturing facilities and test equipment imported from abroad.
Our enterprise was established in 1997, and we currently have around 2,000 staff members. With an abundant production capacity of 3,000K units per month, we are able to deliver products within a short timeframe.
Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and sell products around the world.
Company Office
Manufacturing Line
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping fees apply.
What is your delivery time?
Items currently in stock are ready to ship. For mass production orders, the delivery timeframe is 15-30 days.
What after-sales service do you offer?
We provide a one-year warranty period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send your specifications to us so that we can have a detailed discussion.
What is your advantage?
We bring 19 years of production experience and established, long-standing partnerships with global industry-leading enterprises.
