We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. Our series of optical modules are designed for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

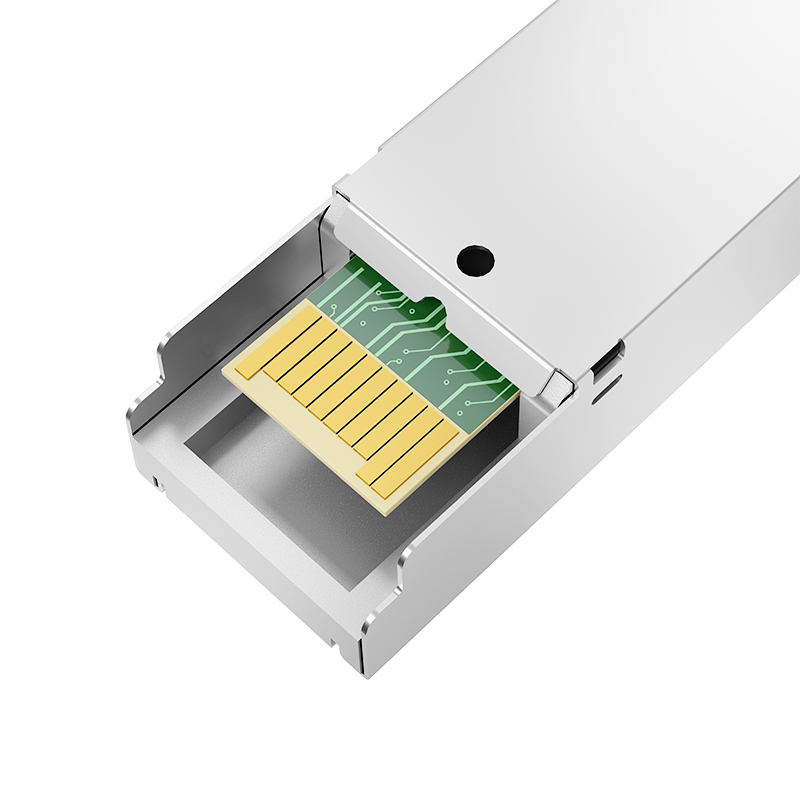

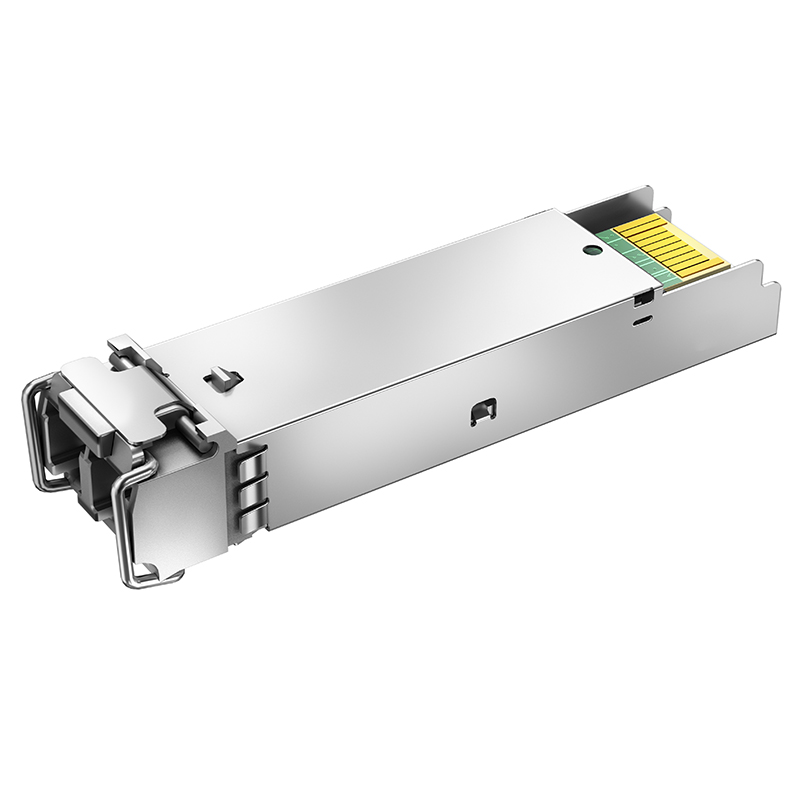

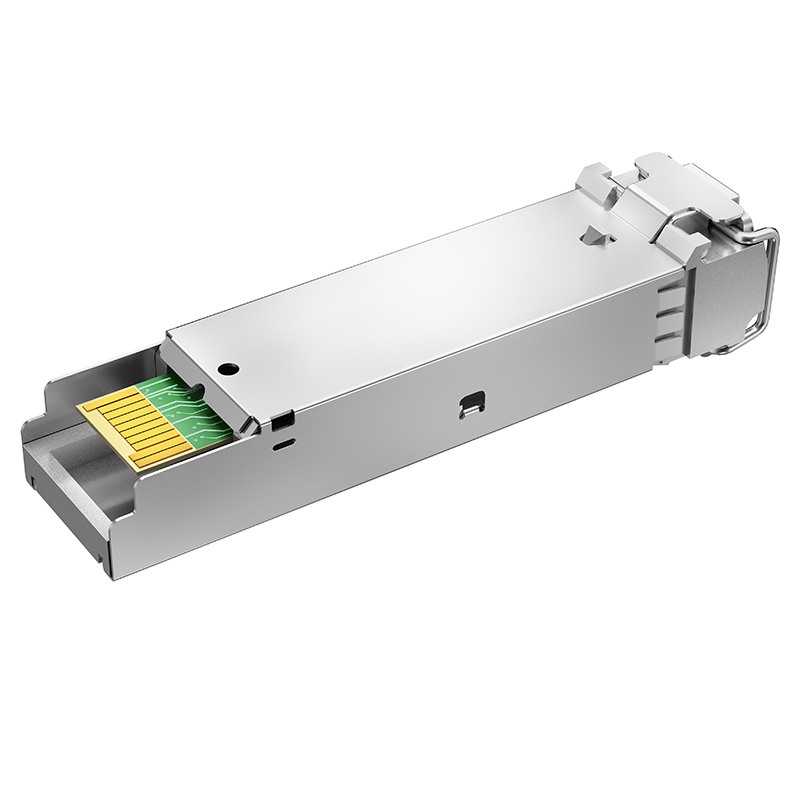

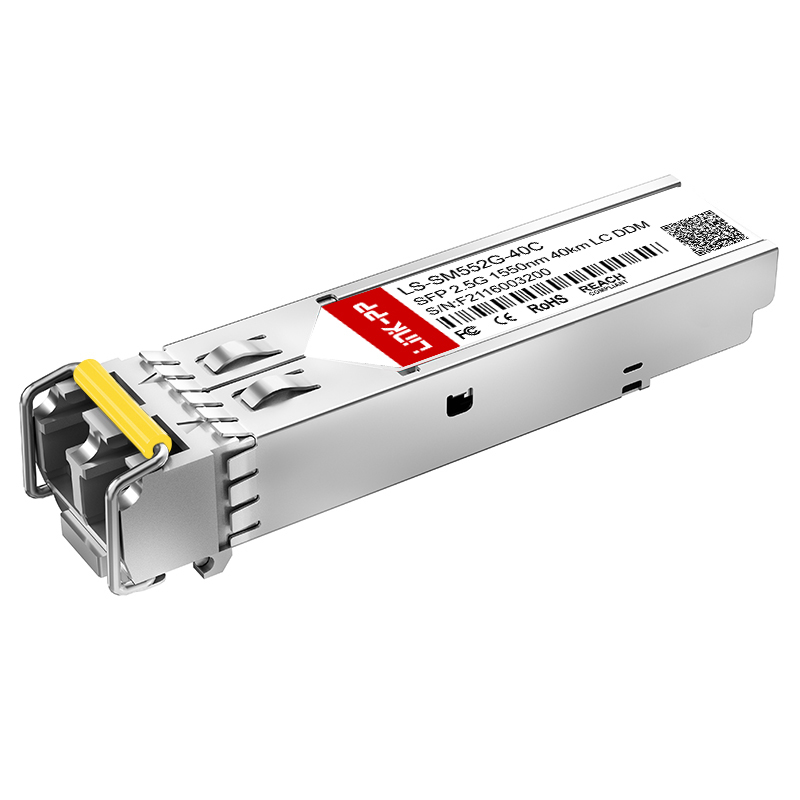

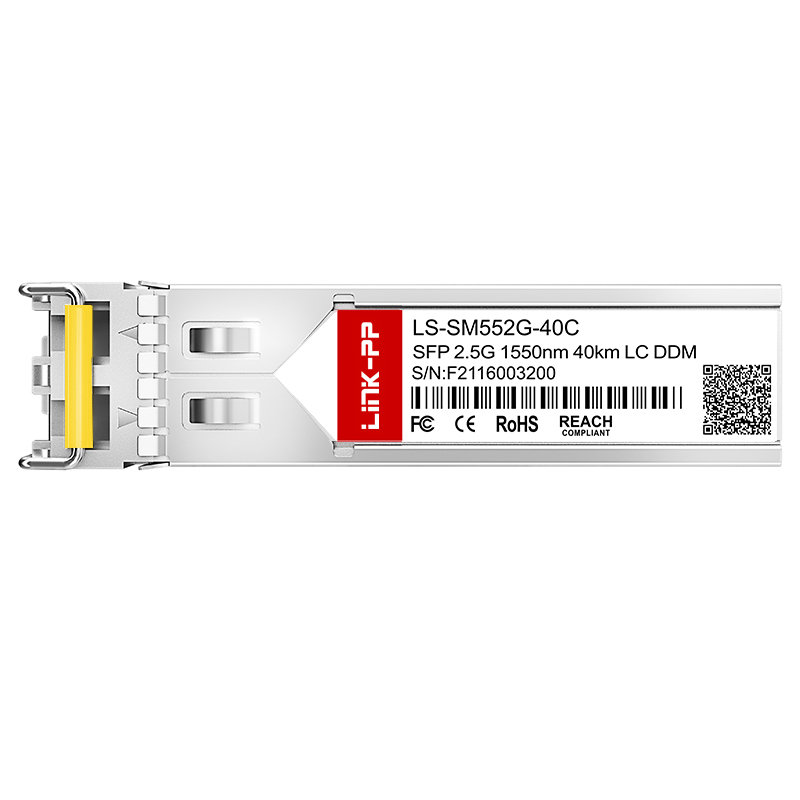

| Part No. | LS-SM552G-40C |
| Form Factor | SFP |
| Max Data Rate | 2.5Gbps |
| Wavelength | 1550nm |
| Max Cable Distance | 40km |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | DFB |
| Receiver Type | PIN |
| TX Power | -2 ~ 3dBm |
| Receiver Sensitivity | < -20dBm |
| Receiver Overload | -3dBm |
| EMC Supported | Yes |
| DDM/DOM | Supported |
| Protocols | MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Part Number | Data Rate | Wavelength | Distance | Media | DDM |
|---|---|---|---|---|---|
| LS-MM852G-S3C | 2.5Gbps | 850nm | 300m | Multi-mode | Yes |
| LS-MM852G-S5C | 2.5Gbps | 850nm | 550m | Multi-mode | Yes |
| LS-SM312G-02C | 2.5Gbps | 1310nm | 2km | Single Mode | Yes |
| LS-SM312G-10C | 2.5Gbps | 1310nm | 10km | Single Mode | Yes |
| LS-SM312G-15C | 2.5Gbps | 1310nm | 15km | Single Mode | Yes |
| LS-SM312G-20C | 2.5Gbps | 1310nm | 20km | Single Mode | Yes |
| LS-SM552G-20C | 2.5Gbps | 1550nm | 20km | Single Mode | Yes |
| LS-SM312G-40C | 2.5Gbps | 1310nm | 40km | Single Mode | Yes |
| LS-SM552G-40C | 2.5Gbps | 1550nm | 40km | Single Mode | Yes |
| LS-SM552G-80C | 2.5Gbps | 1550nm | 80km | Single Mode | Yes |
We provide end-to-end DWDM devices including active modules and optical passive devices, such as optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR.
Meeting mass data transmission needs, we offer high-speed optical modules ranging from 10G to 800G, providing high-quality interconnection for modern data centers.
High reliability products using mature lasers and mainstream chip solutions. Coverage includes Dark Fiber, WDM, Radio over Fiber, and Back-haul for 4G/5G systems.
As a specialized manufacturer of magnetic telecom and network components, we are certified by ISO9001:2000, ROSH, REACH, CE and UL. Our facilities utilize advanced manufacturing and testing equipment. We provide a complete series of optical modules including solutions for fixed access, wireless access, carrier Ethernet, and cloud computing. Using the latest optoelectronic technologies, we design, manufacture, and sell high-performance products worldwide.
