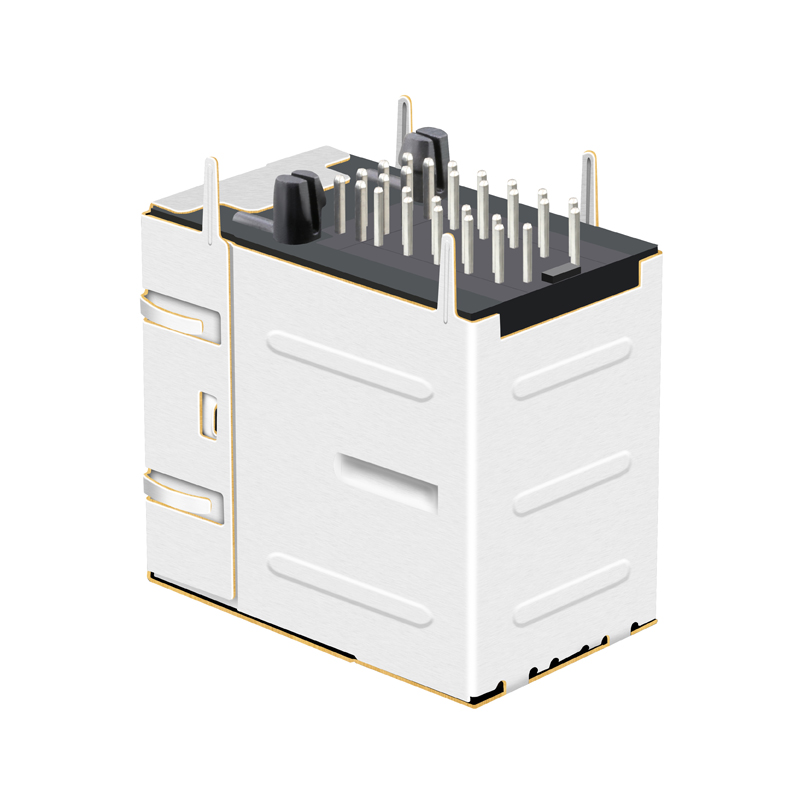

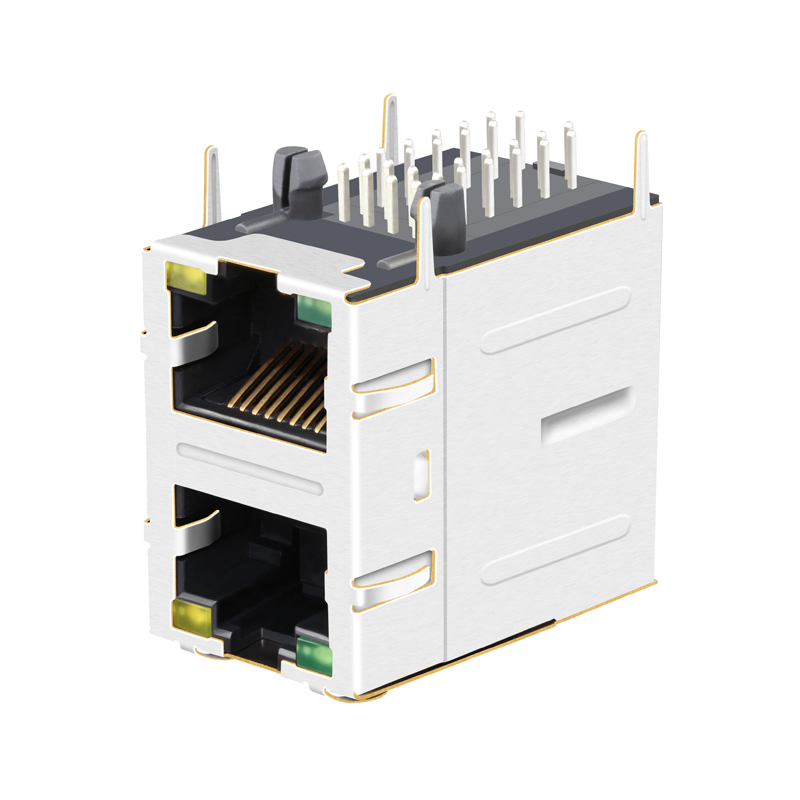

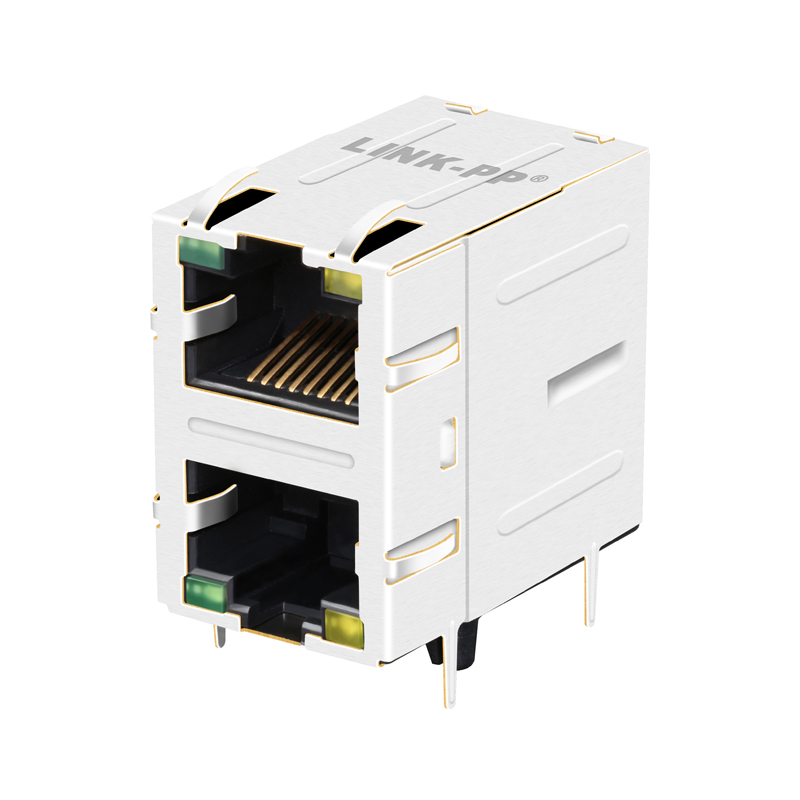

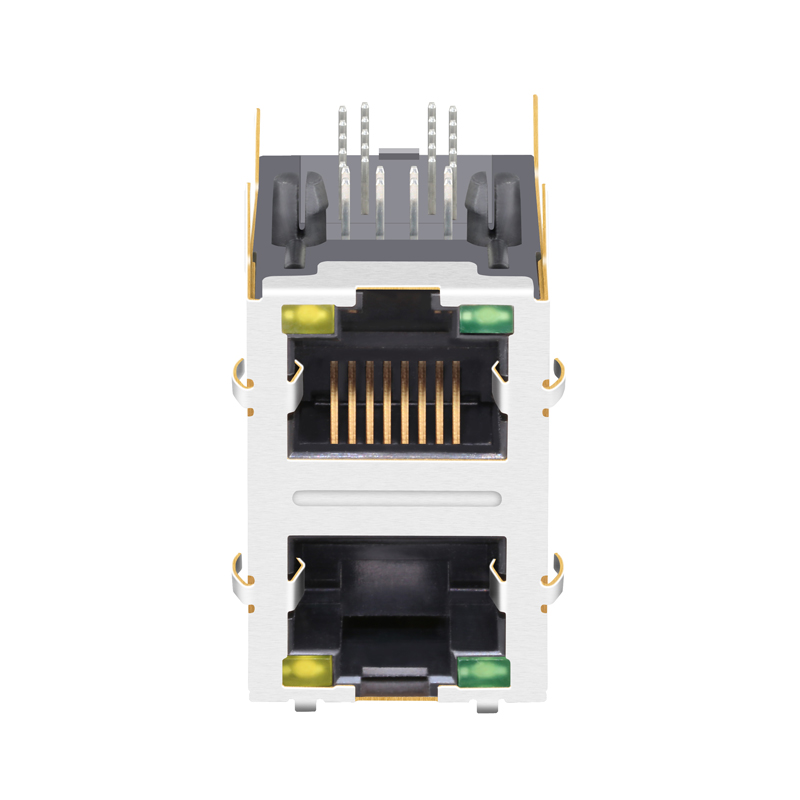

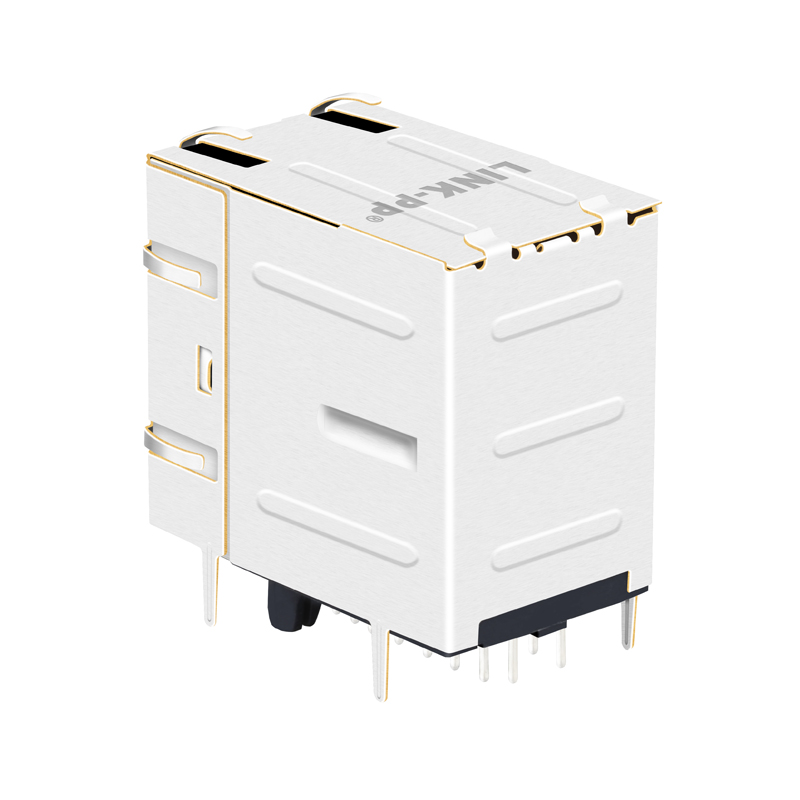

RM3-138A9V1F / RM3-138A9V1Q 1000 Base-T 2X1 Port Ethernet RJ-45 Connector
RM3-138A9V1F / RM3-138A9V1Q 1000 Base-T 2X1 Port Ethernet RJ-45 Connector
RM3-138A9V1F / RM3-138A9V1Q 1000 Base-T 2X1 Port Ethernet RJ-45 Connector
RM3-138A9V1F / RM3-138A9V1Q 1000 Base-T 2X1 Port Ethernet RJ-45 Connector
RM3-138A9V1F / RM3-138A9V1Q 1000 Base-T 2X1 Port Ethernet RJ-45 Connector
1 / 5
RM3-138A9V1F / RM3-138A9V1Q 1000 Base-T 2X1 Port Ethernet RJ-45 Connector
RM3-138A9V1F / RM3-138A9V1Q 1000 Base-T 2X1 Port Ethernet RJ-45 Connector
RM3-138A9V1F / RM3-138A9V1Q 1000 Base-T 2X1 Port Ethernet RJ-45 Connector
RM3-138A9V1F / RM3-138A9V1Q 1000 Base-T 2X1 Port Ethernet RJ-45 Connector
RM3-138A9V1F / RM3-138A9V1Q 1000 Base-T 2X1 Port Ethernet RJ-45 Connector

RM3-138A9V1F / RM3-138A9V1Q 1000 Base-T 2X1 Port Ethernet RJ-45 Connector

Send Inquiry

Product Description

RM3-138A9V1F / RM3-138A9V1Q 1000 Base-T 2X1 Port Ethernet RJ-45 Connector
Ethernet RJ-45 Connector
Products Description
Item RJ45 Female Connector
Part Number LPJG17512A8NL
Compatible With RM3-138A9V1F
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Feature Showcase
Click Below Products Link To Get More
Low Profile RJ45 / SMT RJ45 / Without Magnetics
Connector Dimensions Detail
Technical Layout Specification
Detailed Circuit Diagram
Product Parameter Table Overview
Connector Package Presentation
Application Environments Display
Company Profile
Established in 1997, is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.

A global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading global Ethernet RJ45 connector and LAN transformer provider.
Manufacturing Center View
Advanced Equipment Inspection
Storage and Logistics Warehouse
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping fees are covered by the buyer.
What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production.
What after-service can you offer?
We offer a one-year guarantee period and 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
What is your advantage?
19 years of production experience, and partner for many years with industry-leading firms.
