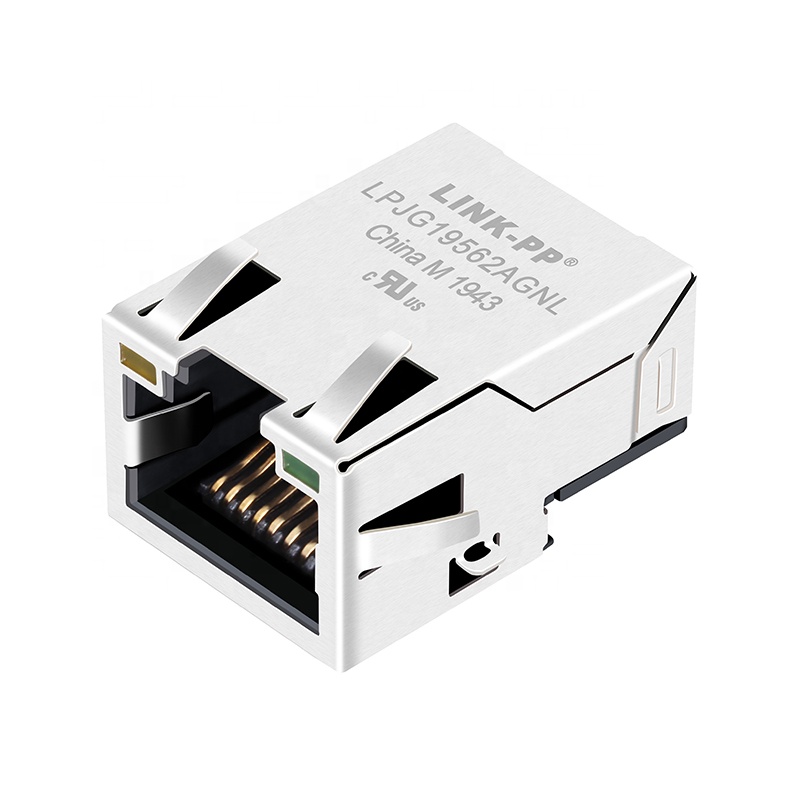

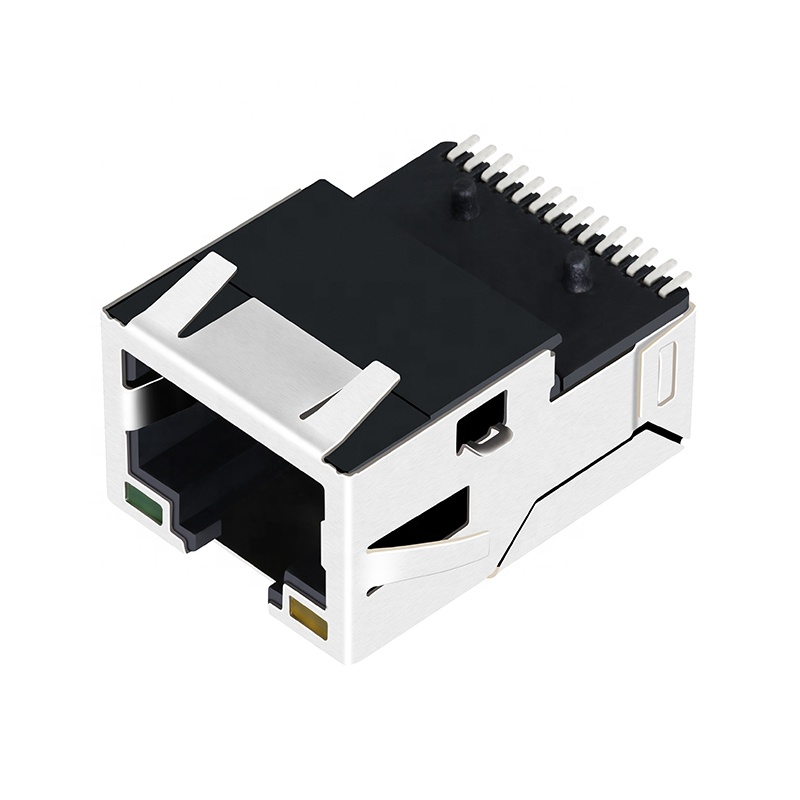

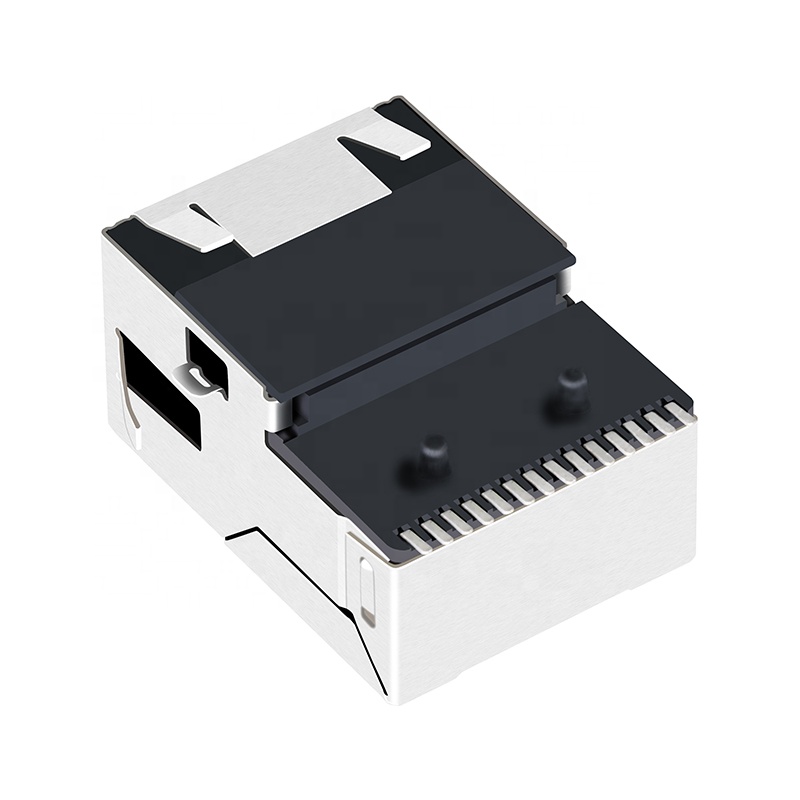

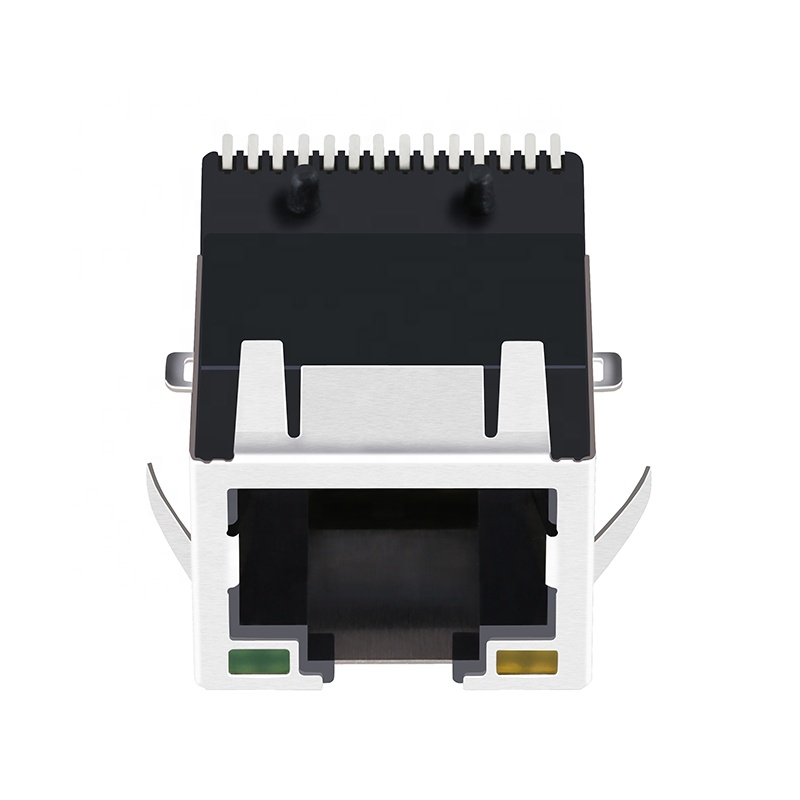

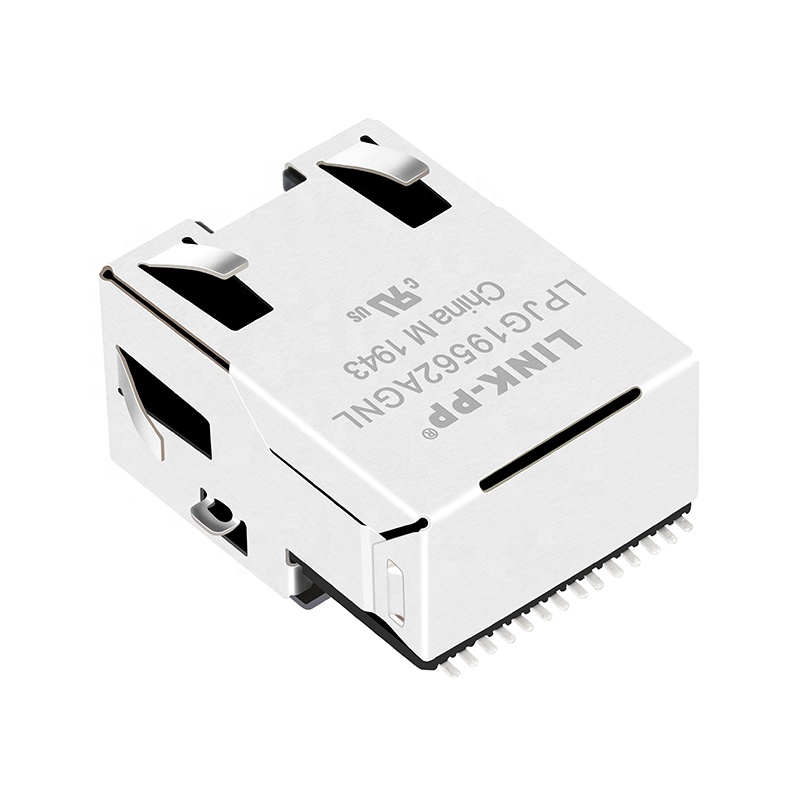

| Item | RJ45 Female Connector |
| Part Number | LPJG19562AGNL |
| Alternative Part Number | 7498111120AR 7498111120R |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100/1000 Base-T |
| Latch | Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Yes, we can offer you free samples to test quality, but shipping fees are the responsibility of the customer.
Ready to ship for stock items and 15-30 days for mass production.
We offer a one-year warranty period and online technical support 24 hours a day.
Yes, please contact us with your specifications so that we can have a detailed discussion.
We have 19 years of professional production experience and have partnered with leading industry enterprises for many years.
