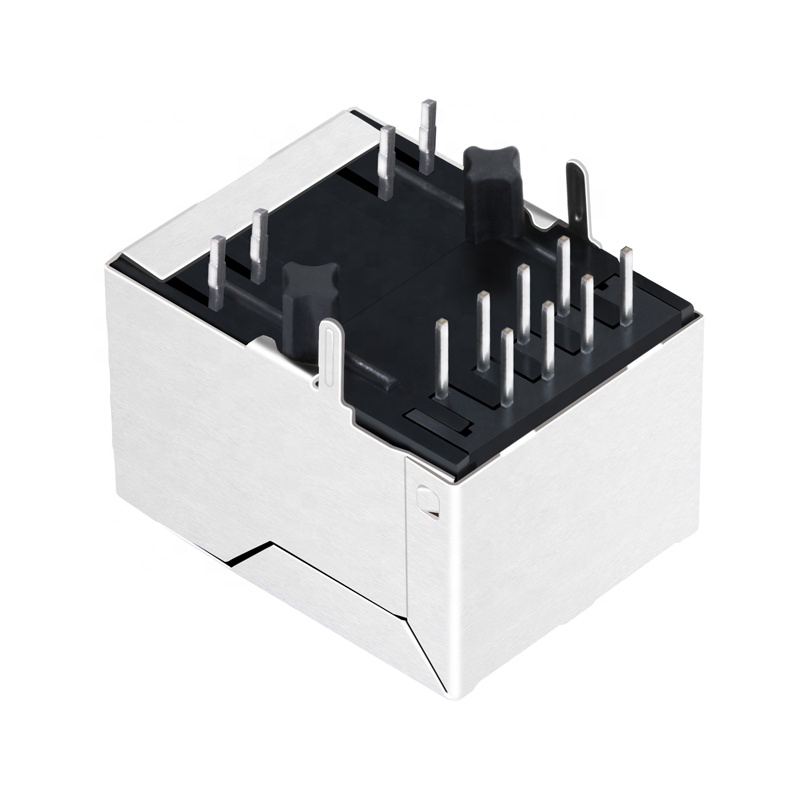

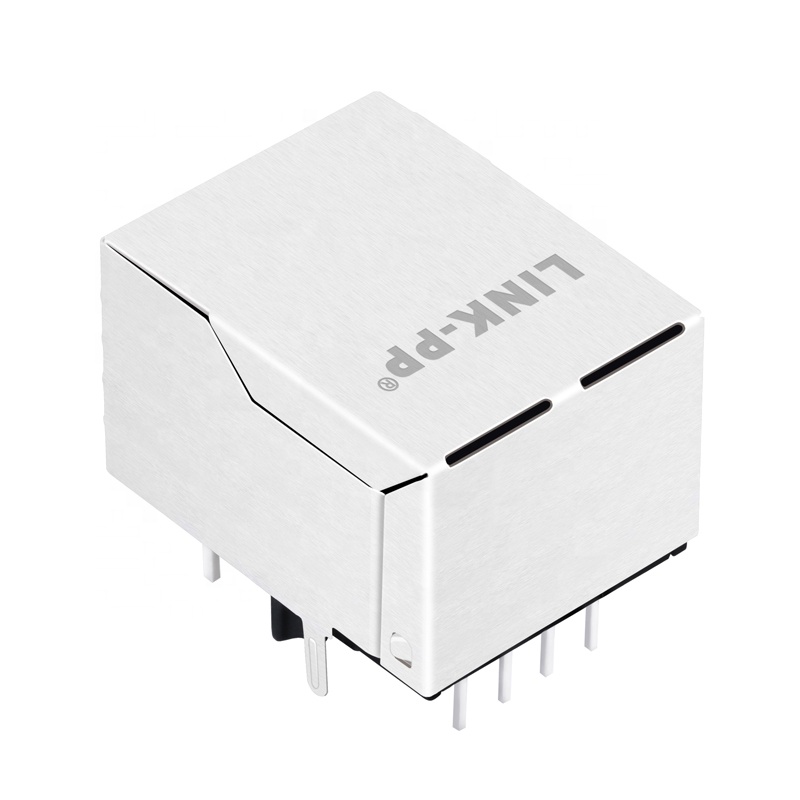

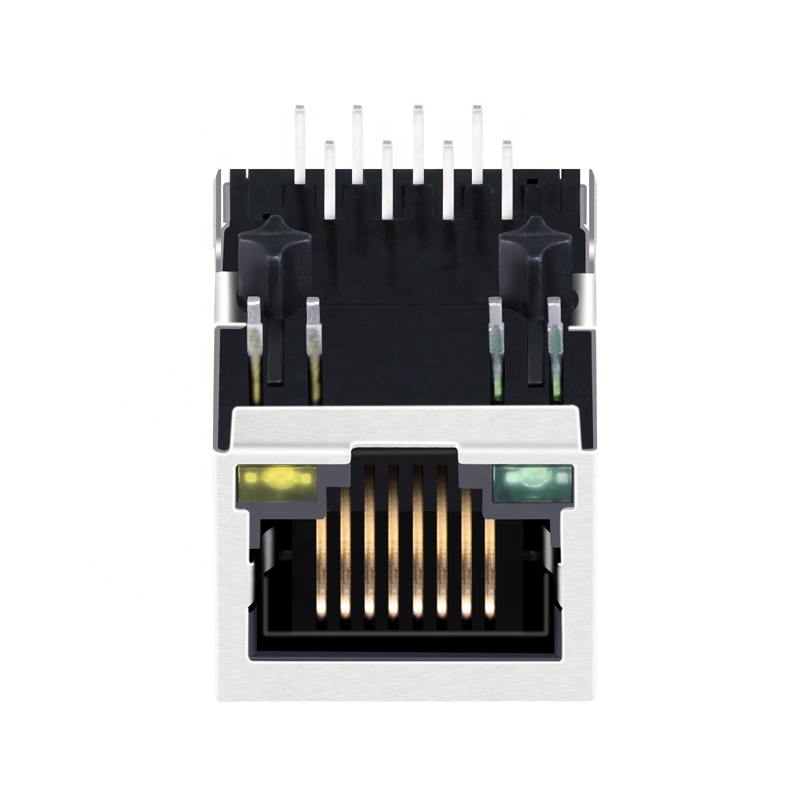

RV1-2012QP1A RJ45 Connector Modular Jack

Product Description

Product Overview
RV1-2012QP1A RJ45 Connector Modular Jack
Products Description
Item RJ45 Female Connector
Bothhand Part Number RV1-2012QP1A
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

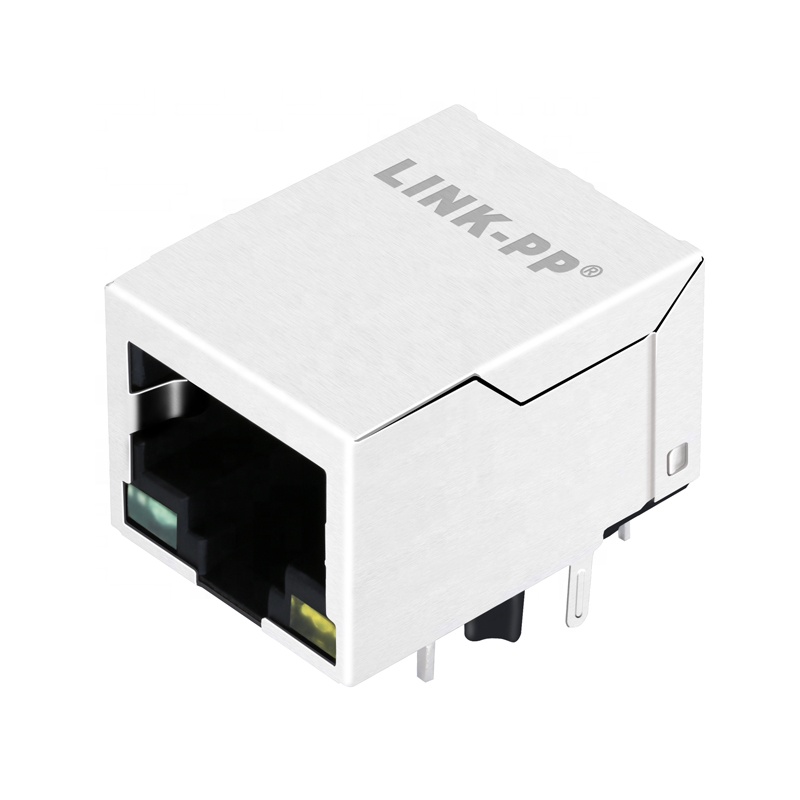

Product Detail View 1

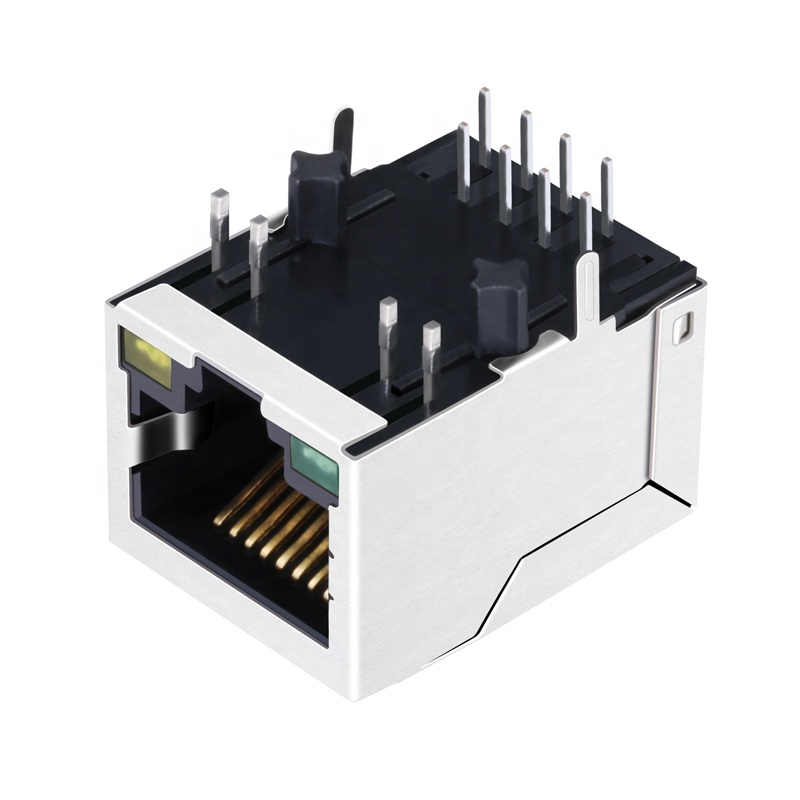

Product Detail View 2
Technical Layout 1
Technical Layout 2
Technical Layout 3
Technical Layout 4
