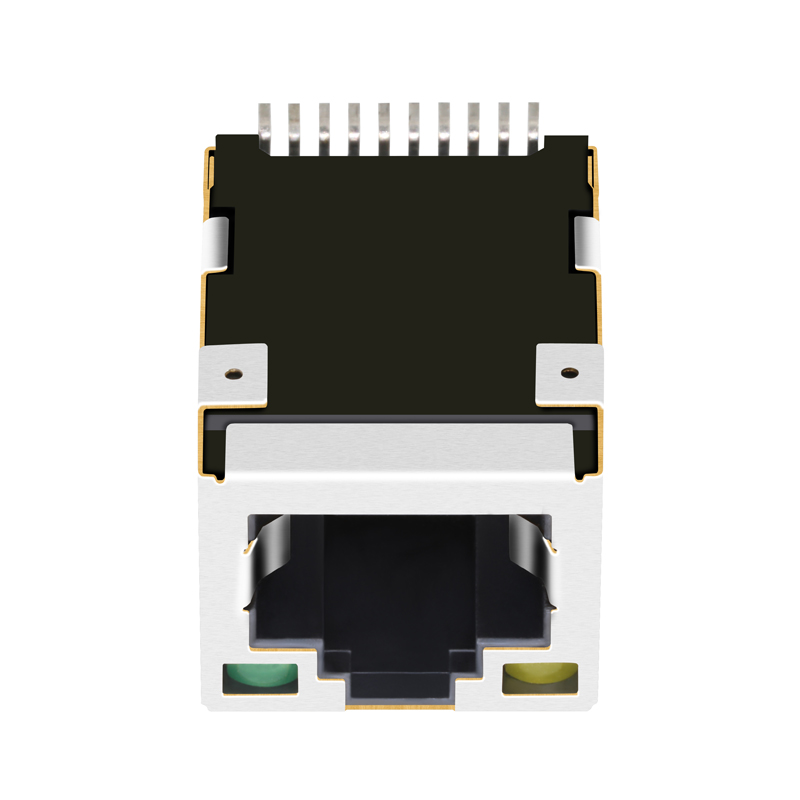

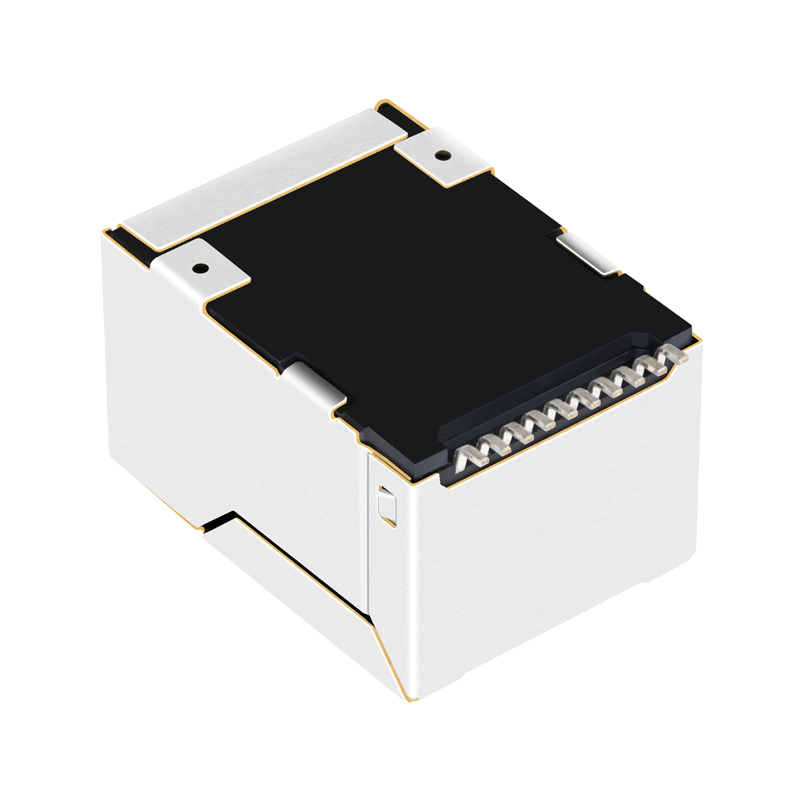

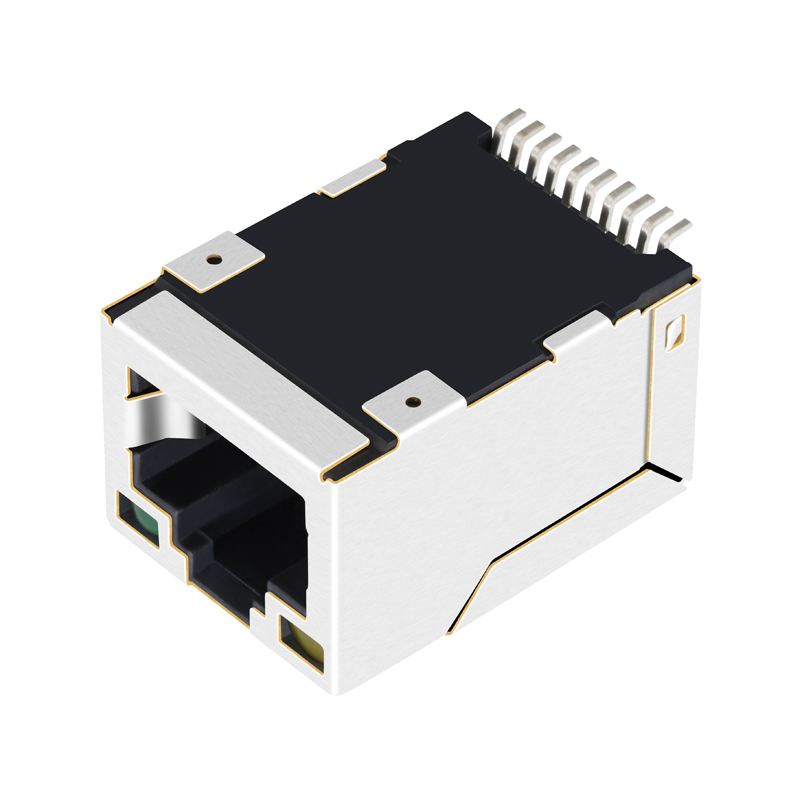

GE5T3013-LC Tab up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led
GE5T3013-LC Tab up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led
GE5T3013-LC Tab up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led
GE5T3013-LC Tab up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led
GE5T3013-LC Tab up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led
1 / 5
GE5T3013-LC Tab up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led
GE5T3013-LC Tab up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led
GE5T3013-LC Tab up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led
GE5T3013-LC Tab up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led
GE5T3013-LC Tab up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led

GE5T3013-LC Tab up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led

Send Inquiry

Product Description

GE5T3013-LC Tab Up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led
Ethernet RJ45 Connector
Products Description
Item RJ45 Female Connector
Part Number LPJ19201BGNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Yellow/Green
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product View 1
Product View 2
Product View 3
Product View 4
Product Categories
Technical Drawing 1
Technical Drawing 2
Technical Drawing 3
Technical Drawing 4
Technical Drawing 5
Technical Drawing 6
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping fees are required.
What is your delivery time?
Ready to ship for stock items and 15-30 days for mass production orders.
What after-service can you offer?
We provide a one-year guarantee period and offer continuous technical support online.
Can you accept OEM/ODM orders?
Yes, please send your inquiries to us so we can proceed with a detailed discussion.
What is your advantage?
We have 19 years of manufacturing and production experience, and have been a trusted partner to global industry leaders for many years.
