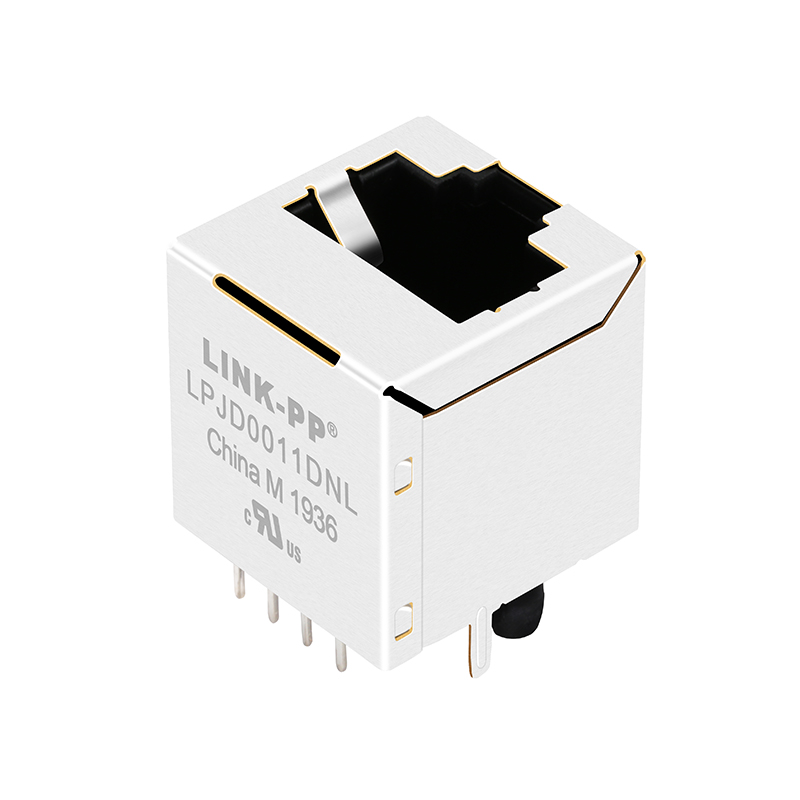

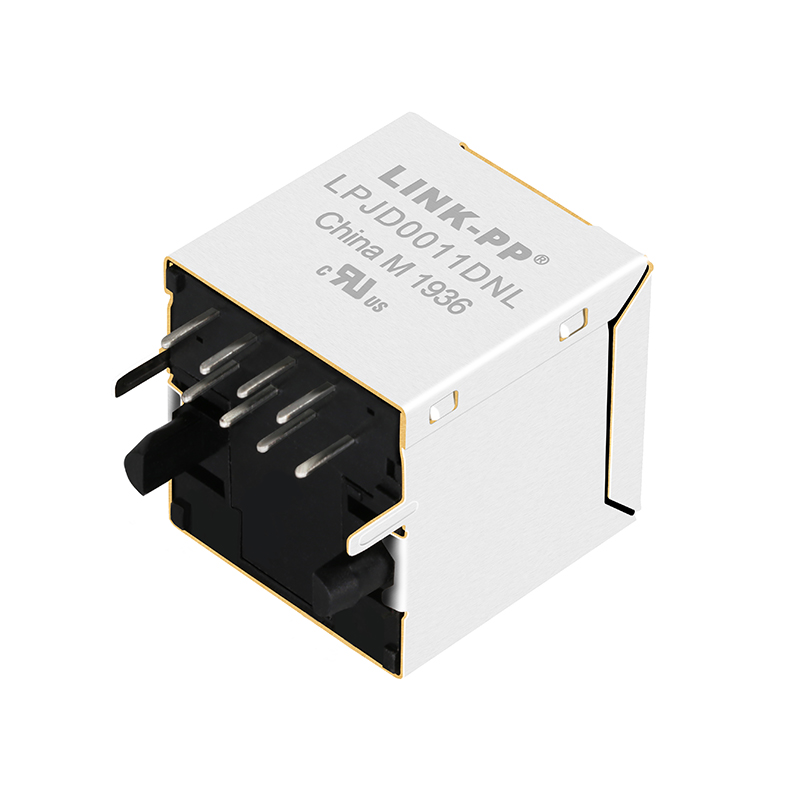

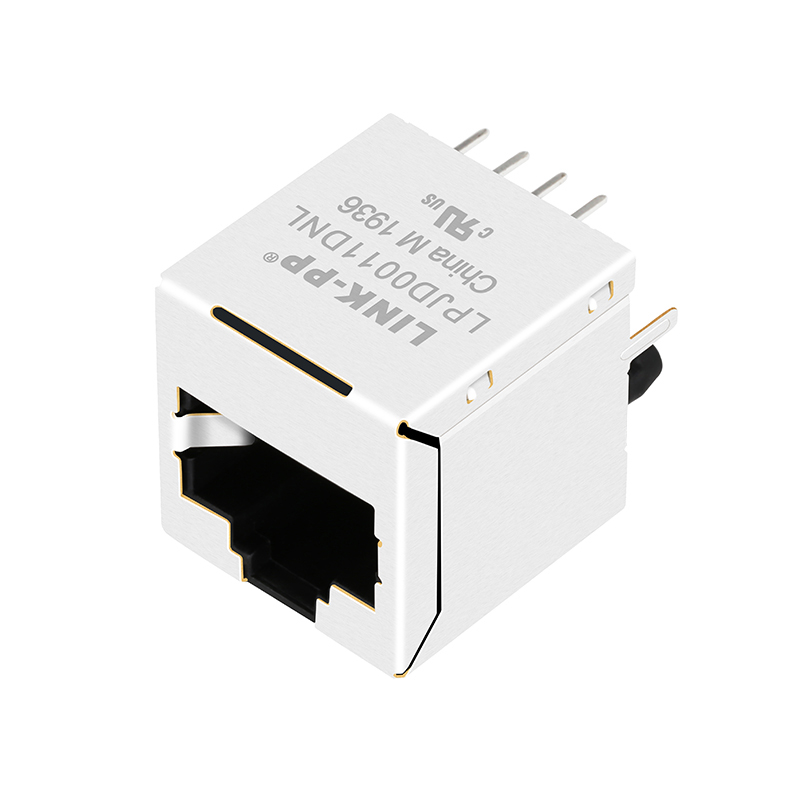

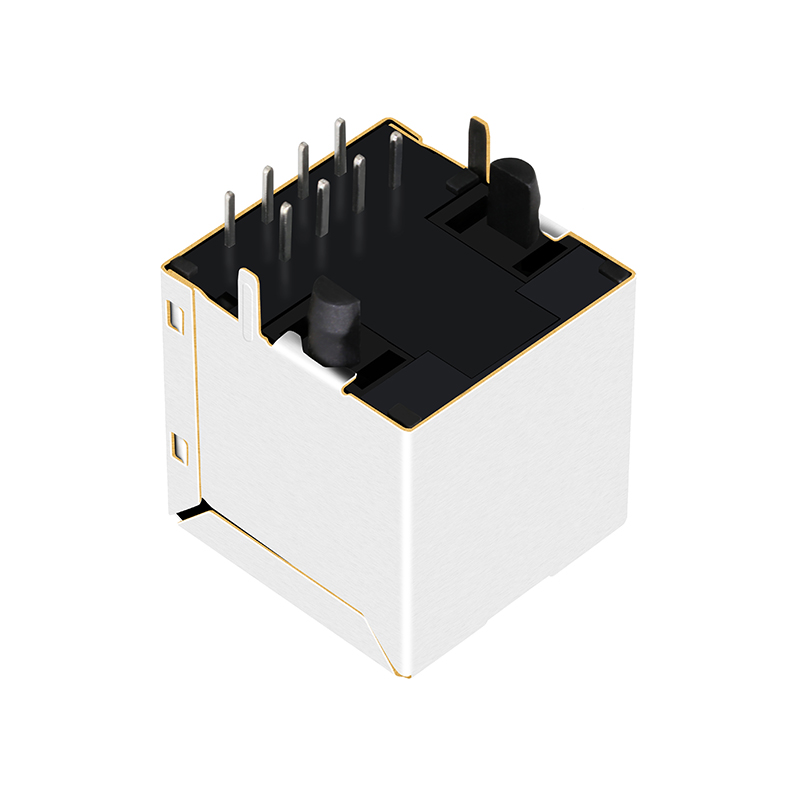

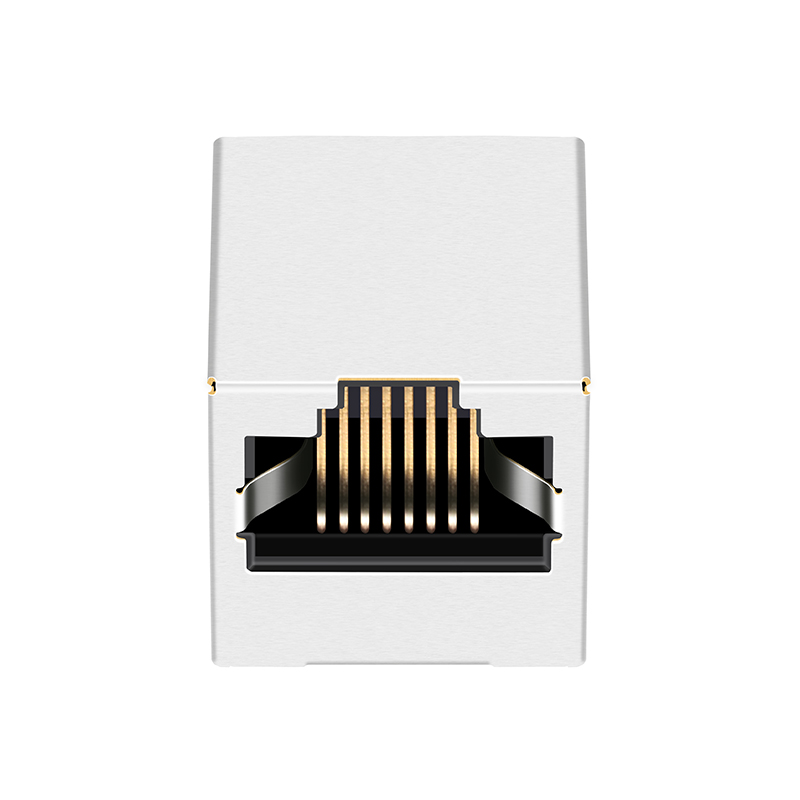

KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
1 / 5
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds

KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds

Send Inquiry

Product Description

Product Categories Overview
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
Products Description
Item RJ45 Female Connector
Part Status Active
Part Number LPJD0011DNL
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Cores per Port 4
Orientation 180° Angle (Right)
PCB Mount Angle Top Entry
Shield EMI Tabs Without
LED Option Without
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX Yes
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Details
Click Below Products To Get More
Product Options Grid
Detail Graphic 1
Detail Graphic 2
Detail Graphic 3
Detail Graphic 4
Detail Graphic 5
Detail Graphic 6
Production Process Details
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers and CEMs, supplying more than 10000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Facility Overview 1
Facility Overview 2
Facility Overview 3
FAQ
Are you factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors and SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free sample to test quality, but you should pay the shipping fee.
What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
What is your advantage?
19 years of production experience and we have been a trusted partner for global clients for many years.
