We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
End-to-end DWDM devices with almost all optical configurations can be provided - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
High reliability and performance products are supplied with mature, efficient lasers and mainstream chip solutions to customers globally. The solution portfolio includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul options designed to meet various requirements of 4G/5G deployment scenarios.
Designed for global communication network constructers, comprehensive FTTx optical fiber access solutions are available, covering both all-optical and combined copper-optical access methodologies.
To ensure the regular operations of communication lines, optical cable operation and maintenance (O&M) solutions are integrated, combining both optical line protection systems (OLP) and optical line monitoring systems (OLM).
| Specification Feature | Details |
|---|---|

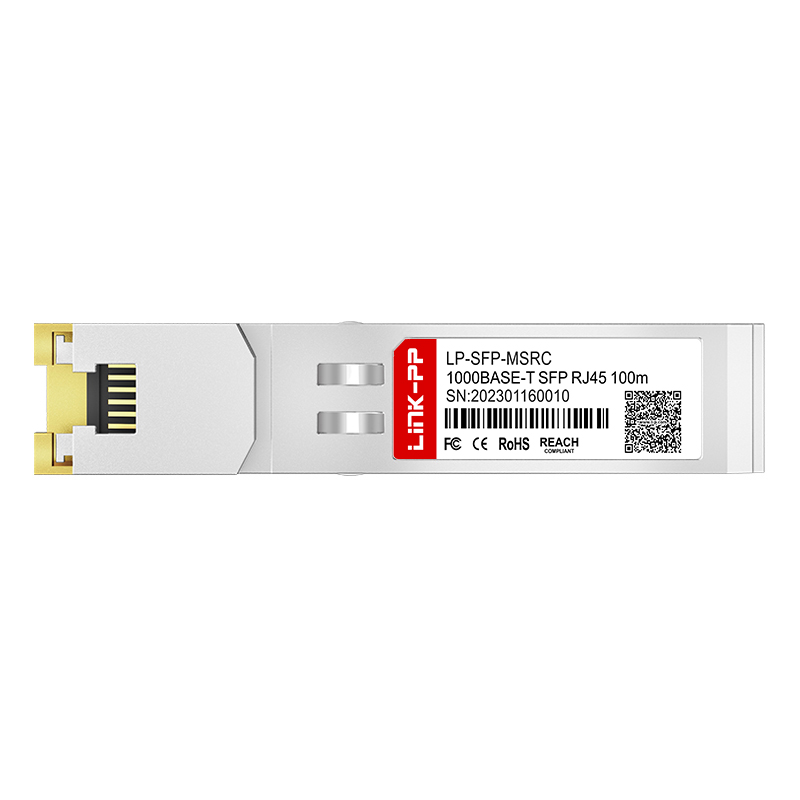

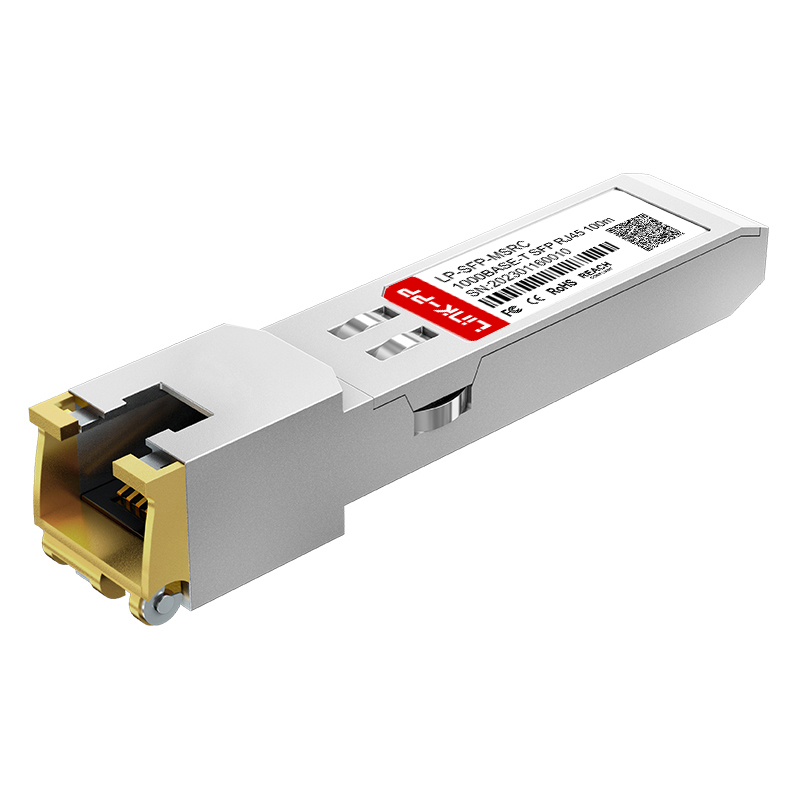

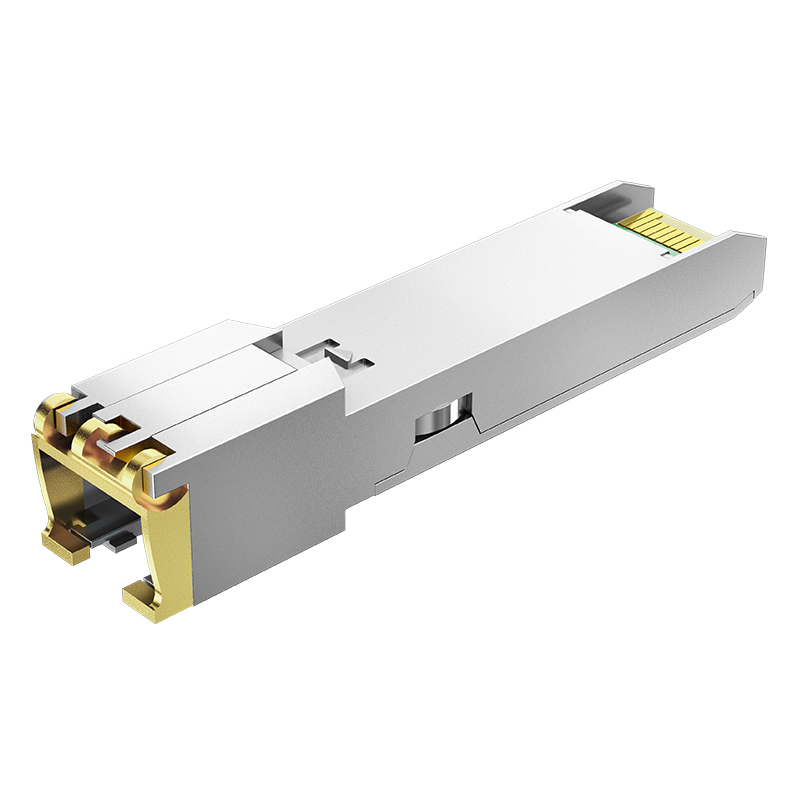

| Model Number | SFP-MSRC |
| Form Factor | SFP |
| Max Data Rate | 1.25Gbps |
| Max Cable Distance | 100m |
| Connector | RJ45 |
| Media | Cat 5e/6/6a (UTP) |
| Typical Power Consumption | ≤1.2w |
| EMC (Electro Magnetic Compatibility) | Supported |
| DDM/DOM | Not Supported |
| Protocols | IEEE Std 802.3 and 802.3ab, SFP MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
| Part Number | Data Rate | Connector | Media | Distance |
|---|---|---|---|---|
| LP-RJ4501-TC | 100Mbps | RJ-45 | Cat 5/Cat 6/Cat 6a | 100m |
| LP-SFP-TMRC | 10/100/1000Mbps | RJ-45 | Cat 6/Cat 6a | 100m |
| LP-SFP-TM8C | 10/100/1000Mbps | RJ-45 | Cat 6/Cat 6a | 100m |
| LP-SFP-MS8C | 1000Mbps | RJ-45 | Cat 6/Cat 6a | 100m |
| LP-SFP-MSRC | 1000Mbps | RJ-45 | Cat 6/Cat 6a | 100m |
| LP-RJ452G-TC | 2.5Gbps | RJ-45 | Cat5e | 100m |
| LP-RJ45TG-3YC | 10Gbps | RJ-45 | Cat6a/Cat7 or Better | 30m |
| LP-RJ45TG-8YC | 10Gbps | RJ-45 | Cat6a/Cat7 or Better | 100m |
