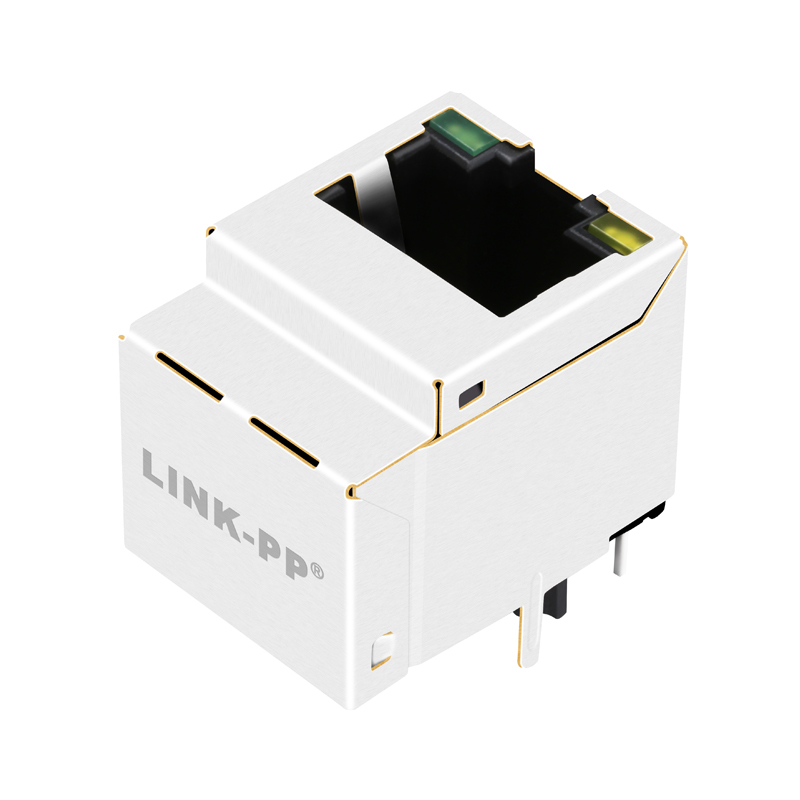

BCM6519IPBG Single Port RJ45 Modular Jack Connector
BCM6519IPBG Single Port RJ45 Modular Jack Connector
BCM6519IPBG Single Port RJ45 Modular Jack Connector
BCM6519IPBG Single Port RJ45 Modular Jack Connector
BCM6519IPBG Single Port RJ45 Modular Jack Connector
1 / 5
BCM6519IPBG Single Port RJ45 Modular Jack Connector
BCM6519IPBG Single Port RJ45 Modular Jack Connector
BCM6519IPBG Single Port RJ45 Modular Jack Connector
BCM6519IPBG Single Port RJ45 Modular Jack Connector
BCM6519IPBG Single Port RJ45 Modular Jack Connector

BCM6519IPBG Single Port RJ45 Modular Jack Connector

Send Inquiry

Product Description

BCM6519IPBG Single Port RJ45 Modular Jack Connector
RJ45 Modular Jack Connector
Products Description
Item RJ45 Female Connector
Part Number BCM6519IPBG
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutoMDIX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C
Product Image 1 Product Image 2 Product Image 3 Product Image 4
Connector Category Reference
Support Information
Specification drawing 1
Specification drawing 2
Specification drawing 3
Specification drawing 4
Specification drawing 5
Specification drawing 6
