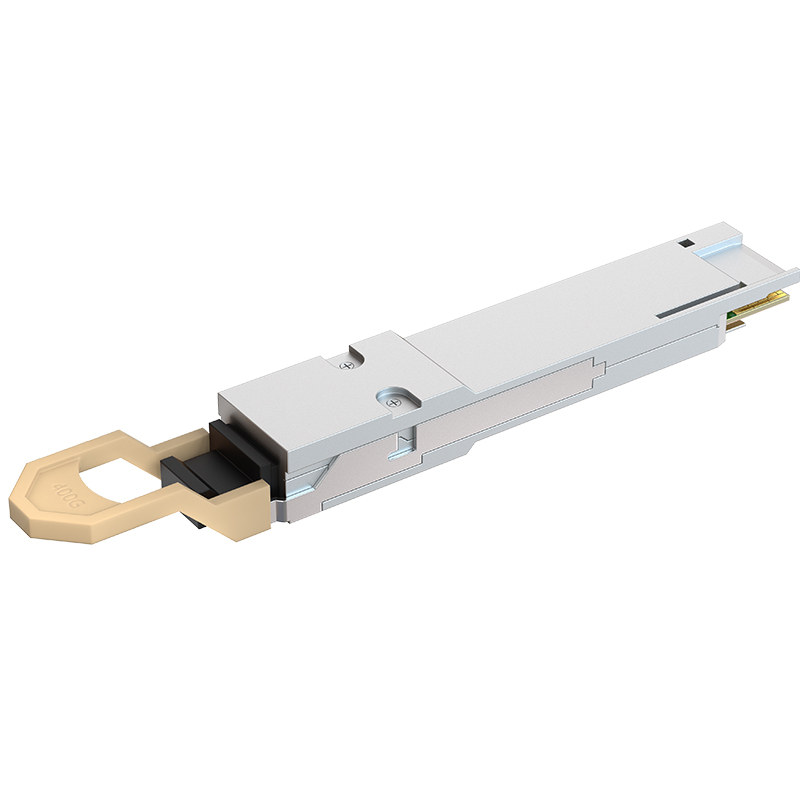

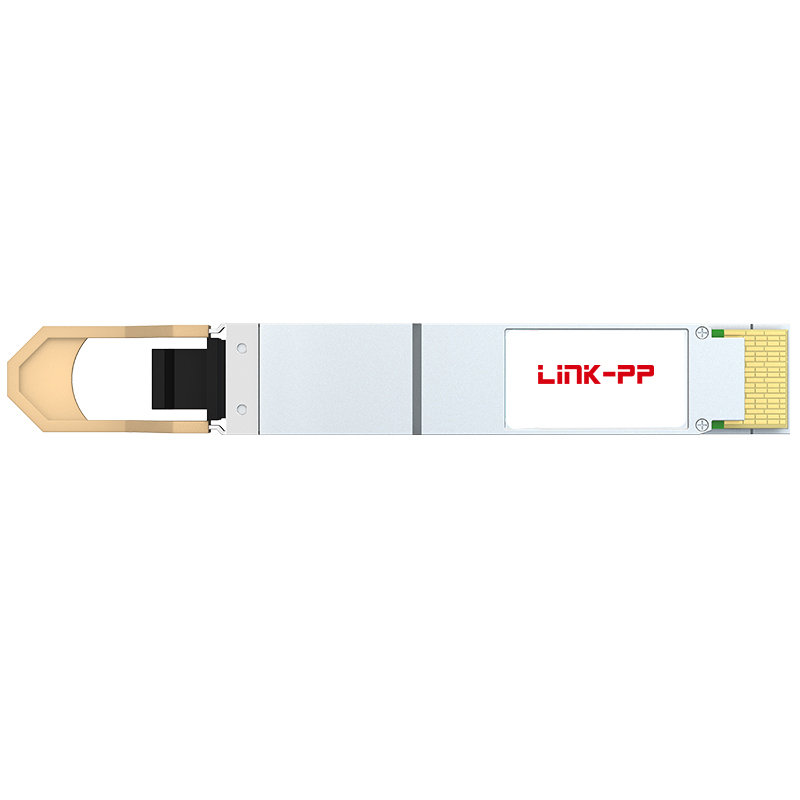

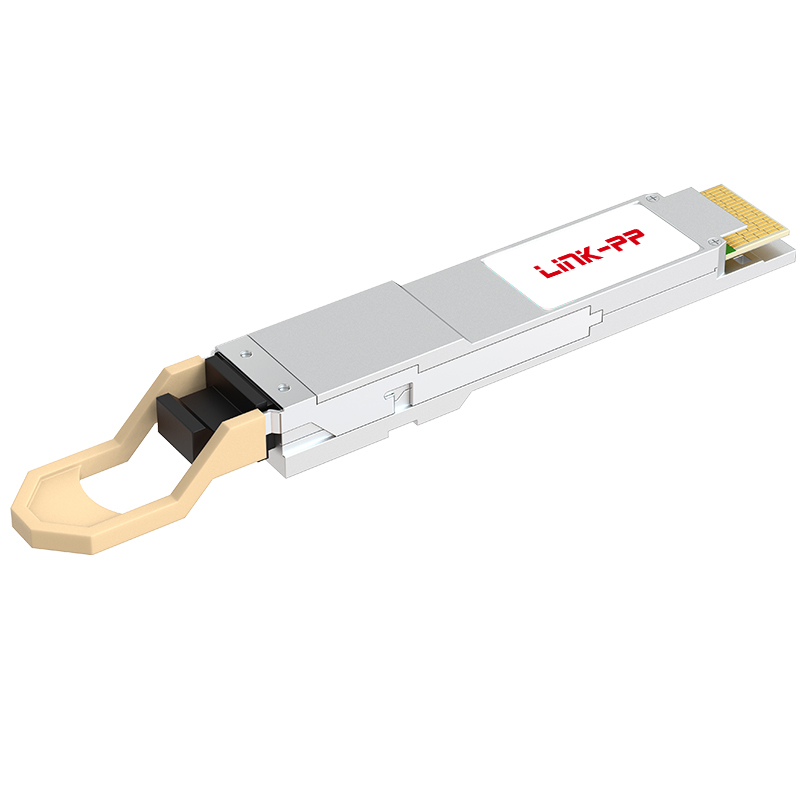

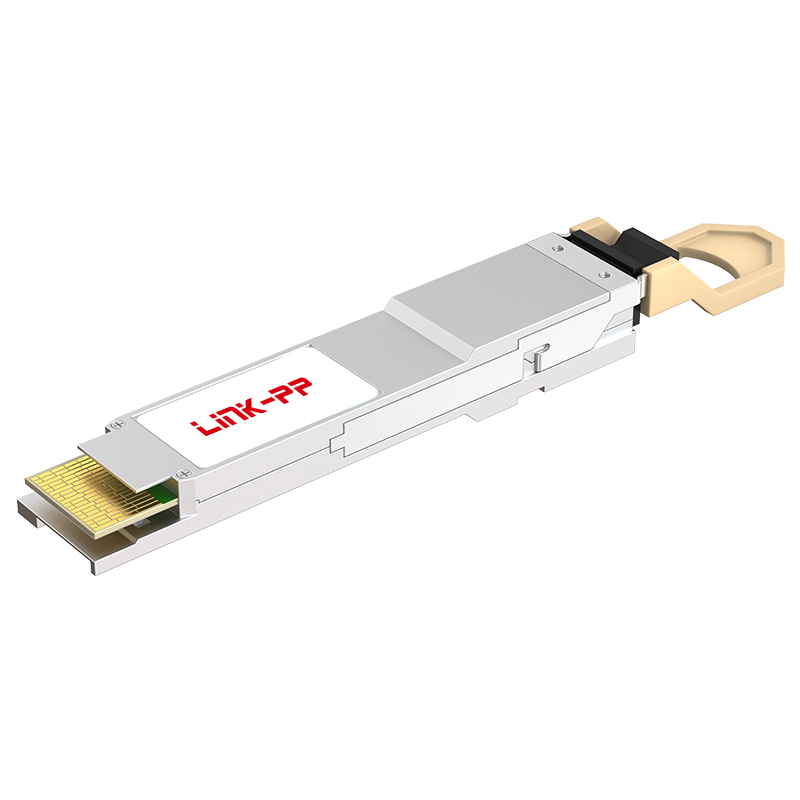

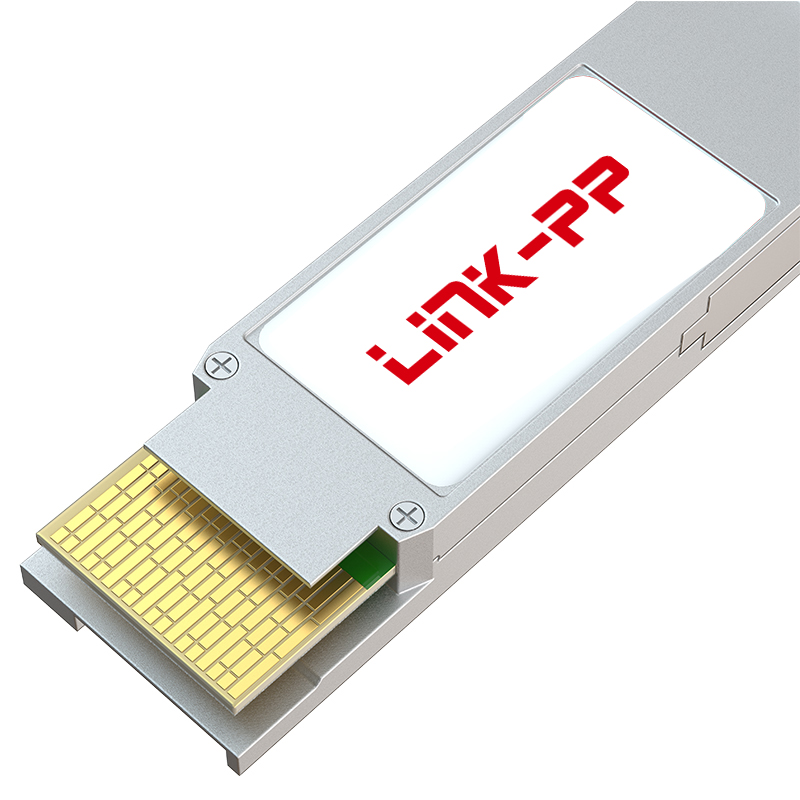

Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module
Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module
Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module
Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module
Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module
1 / 5
Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module
Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module
Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module
Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module
Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module

Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module

Send Inquiry

Product Description

Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module
Products Description
Item Fiber Optical Modules
Part Status Active
Form Factor QSFP-DD
Max Data Rate 400Gbps
Max Cable Distance 70m@OM3/100m@OM4
Wavelength 850nm
Connector MTP/MPO-16 (APC)
Media MMF
Optical Component VCSEL/PIN
TX Power -6~4dBm
RX Power -7.9~4dBm
Modulation 8x 50G PAM4
Powerbudget 1.9dB
Power Consumption ≤10W
Extinction Ratio 3dB
DDM/DOM DDM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Warranty 5 Years
Sample Available
Protocols IEEE 802.3cd, QSFP-DD MSA, CMIS 4.0
View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transceiver Solution 1
Optical Transceiver Solution 2
Optical Transceiver Solution 3
Solution Design
Performance Test
Optical Modules Categorization
Related Products SFP Cage
SFP Cage Design 1
SFP Cage Design 2
Related SFP Connector
Why Choose Us
Quality Standard Assurance
Advanced Equipment
Testing Procedures
Global Delivery Logistics
Manufacturing Capabilities
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE, and UL. We own advanced manufacturing facilities and testing equipment imported from abroad.
Established in 1997, our current staff size is around 2,000. With a productive capacity of 3,000K per month, we ensure prompt delivery. Additionally, we offer a comprehensive series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. We develop, manufacture, and distribute products globally, leveraging the latest optoelectronics technologies.
Production Line
Quality Checking Department
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but shipping costs are covered by the customer.
What is your delivery time?
Ready-to-ship items are available immediately from stock, while mass production orders generally take 15 to 30 days.
What after-service can you offer?
We provide a one-year warranty period and offer 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we support custom OEM/ODM solutions. Please send us your specifications for a detailed discussion.
What is your core advantage?
We bring over 19 years of manufacturing expertise and have been a trusted partner to top-tier global enterprise clients for many years.
