| Product Specifications | |
|---|---|

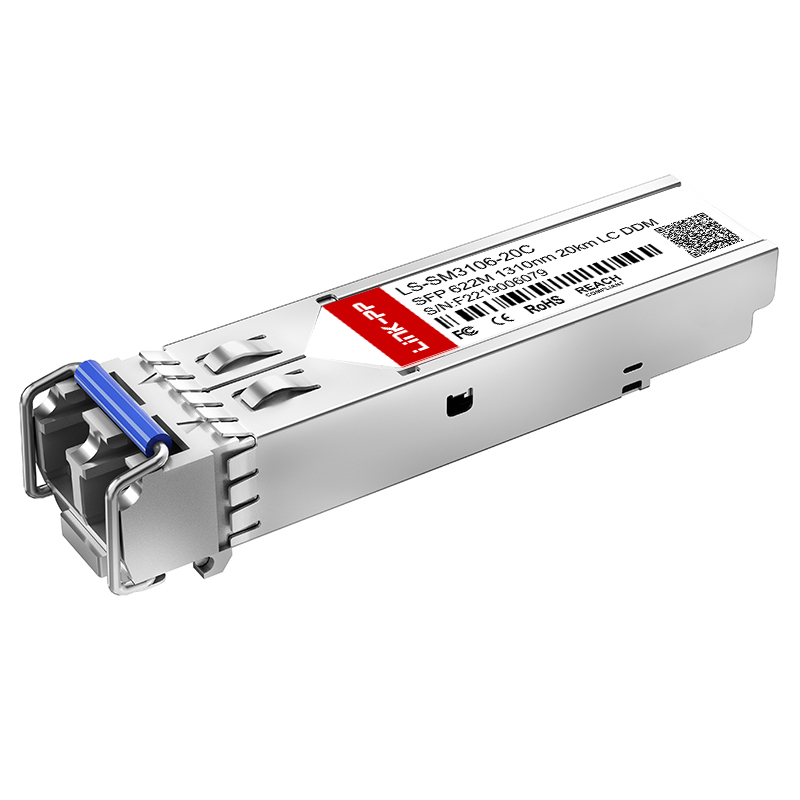

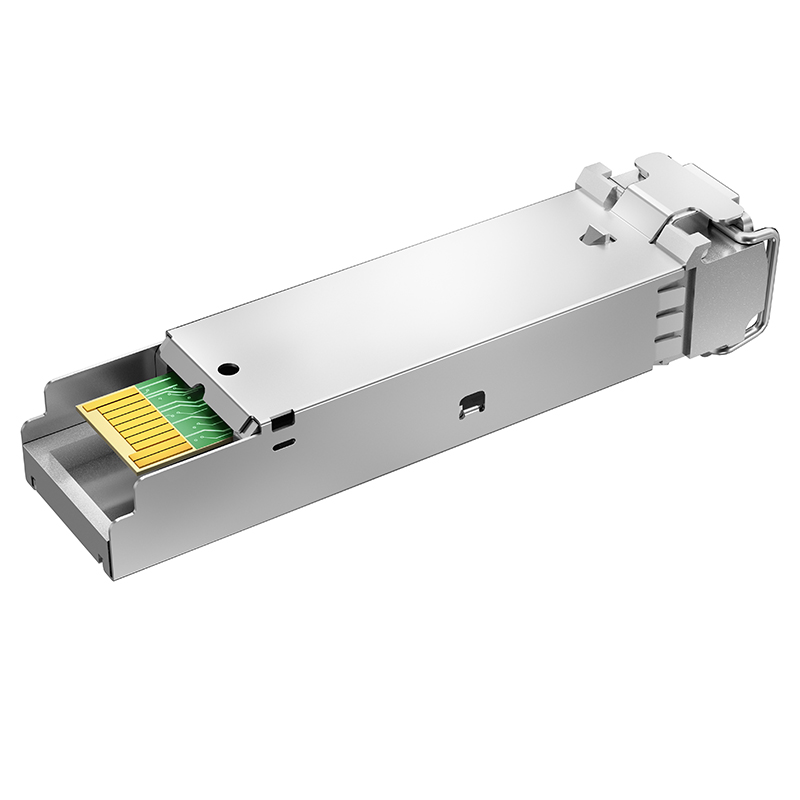

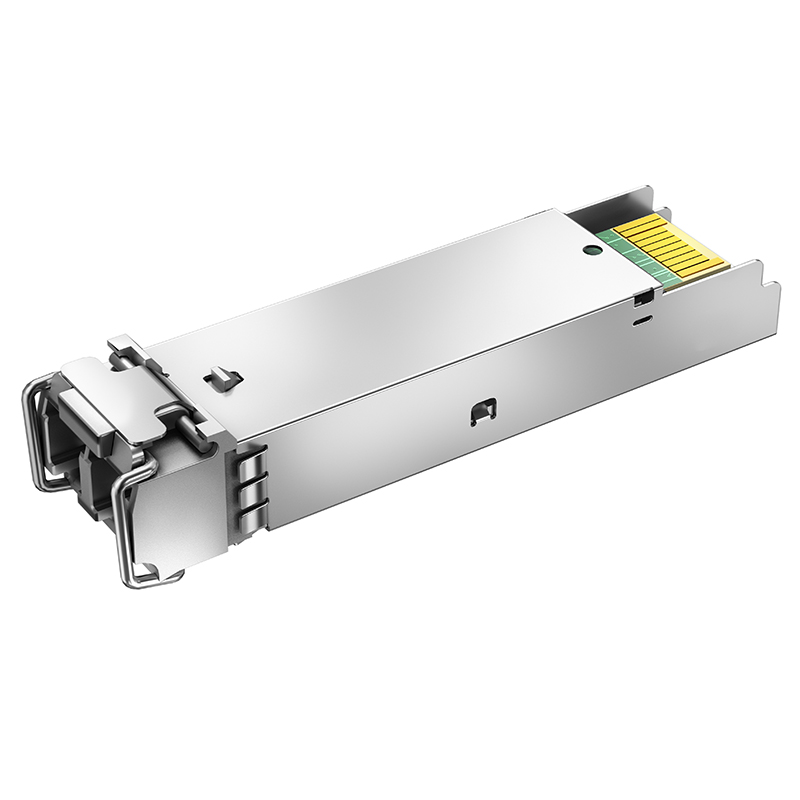

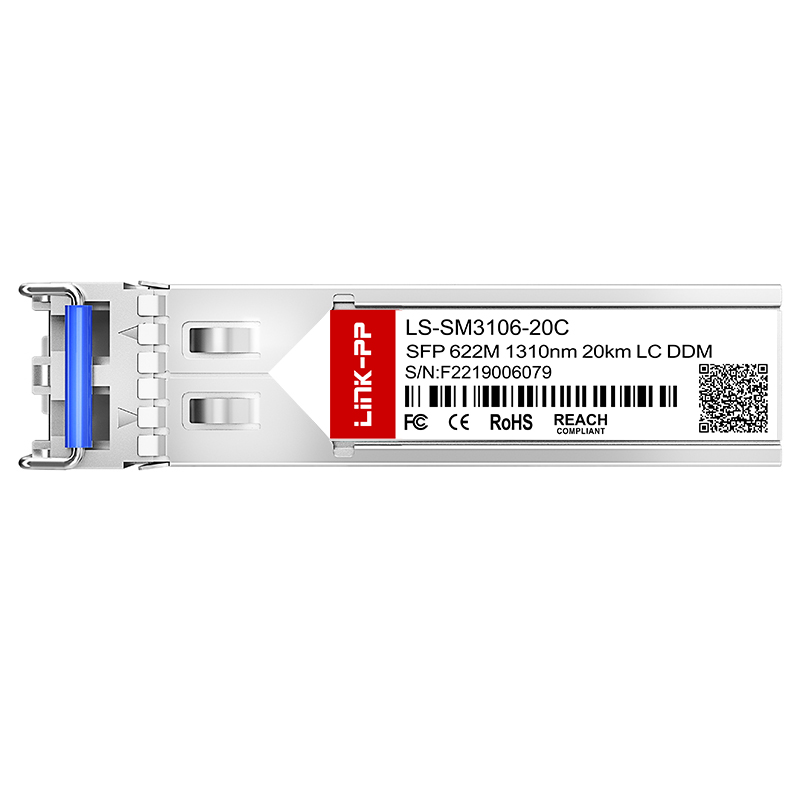

| Part No. | LS-SM3106-20C |
| Form Factor | SFP |
| Max Data Rate | 622Mbps |
| Wavelength | 1310nm |
| Max Cable Distance | 20km |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | FP |
| Receiver Type | PIN |
| EMC (Electro Magnetic Compatibility) | Supported |
| DDM/DOM | Supported |
| Protocols | MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
| Part Number | Data Rate | Wavelength | Distance | Media | DDM |
|---|---|---|---|---|---|
| LS-MM8506-S5C | 622Mbps | 850nm | 500m | Multi-mode | Yes |
| LS-SM3106-S5C | 622Mbps | 1310nm | 500m | Single Mode | Yes |
| LS-SM3106-02C | 622Mbps | 1310nm | 2km | Single Mode | Yes |
| LS-MM3106-02C | 622Mbps | 1310nm | 2km | Multi-mode | Yes |
| LS-SM3106-20C | 622Mbps | 1310nm | 20km | Single Mode | Yes |
| LS-SM3106-40C | 622Mbps | 1310nm | 40km | Single Mode | Yes |
| LS-SM5506-80C | 622Mbps | 1550nm | 80km | Single Mode | Yes |
| LS-SM5506-A0C | 622Mbps | 1550nm | 100km | Single Mode | Yes |
| LS-SM5506-A2C | 622Mbps | 1550nm | 120km | Single Mode | Yes |
End-to-end DWDM devices can be provided with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
High reliability and performance products with mature and efficient lasers and mainstream chip solutions are provided to customers worldwide. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul, meeting all scenario needs in 4G/5G systems.
Aimed at global communication network constructors, total FTTx optical fiber access solutions are provided, covering all-optical or optical-copper combined access solutions and products.
To ensure the normal operation of the communication line, an optical cable O&M solution is provided, integrating an optical line protection system (OLP) and an optical line monitoring system (OLM).
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Yes, we can offer you a free sample to test the quality, but the shipping fee needs to be covered by the client.
Items in stock are ready to ship immediately, while mass production typically takes 15-30 days.
We offer a one-year guarantee period along with 24-hour online technical support.
Yes, please send your inquiries to us so we can have a detailed discussion regarding your specific requirements.
We have 19 years of dedicated production experience and have been a trusted partner for global industry leaders for many years.
