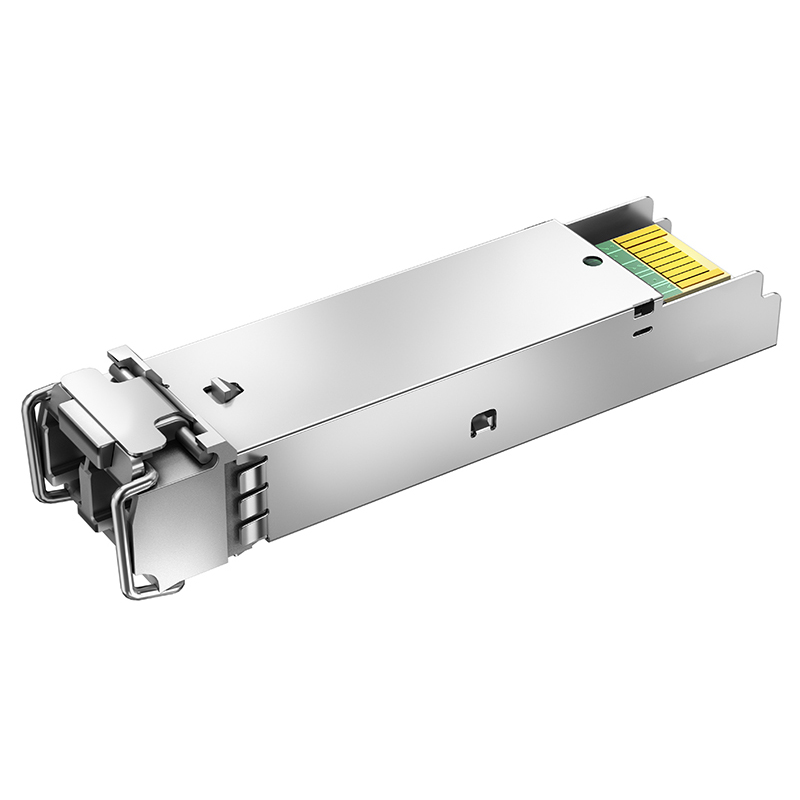

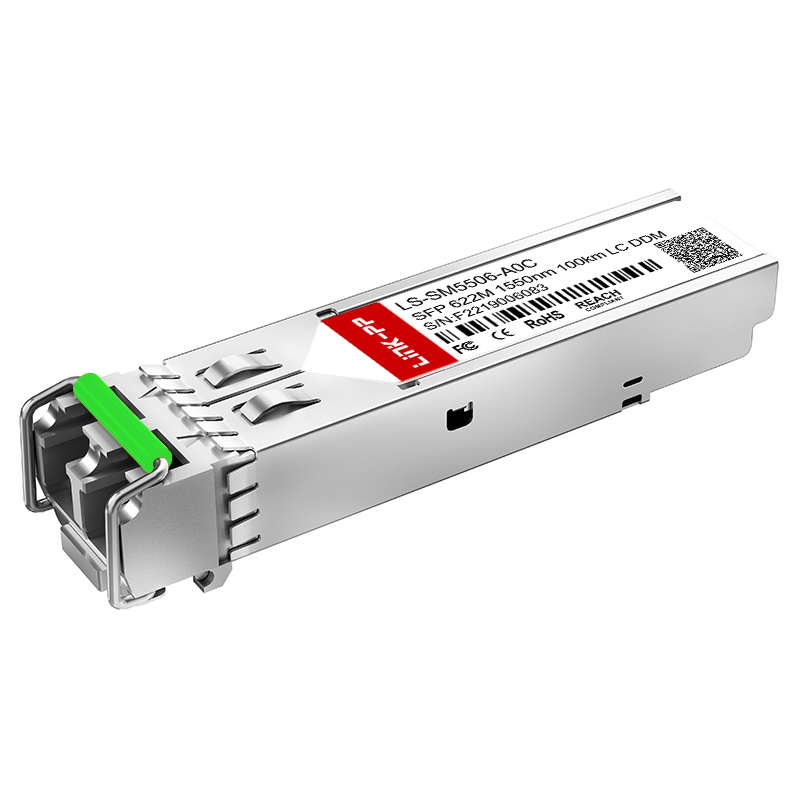

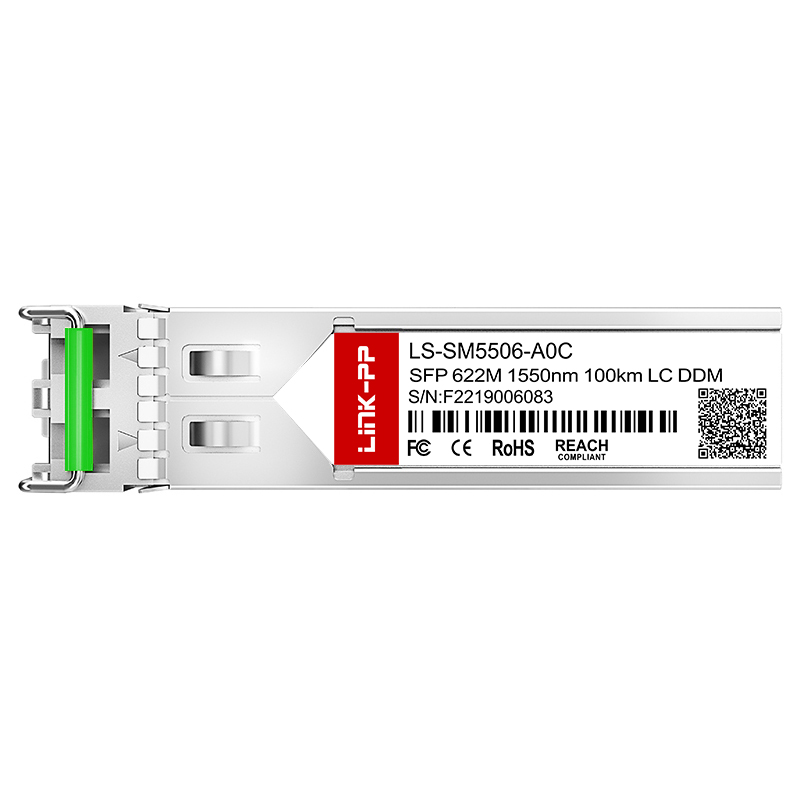

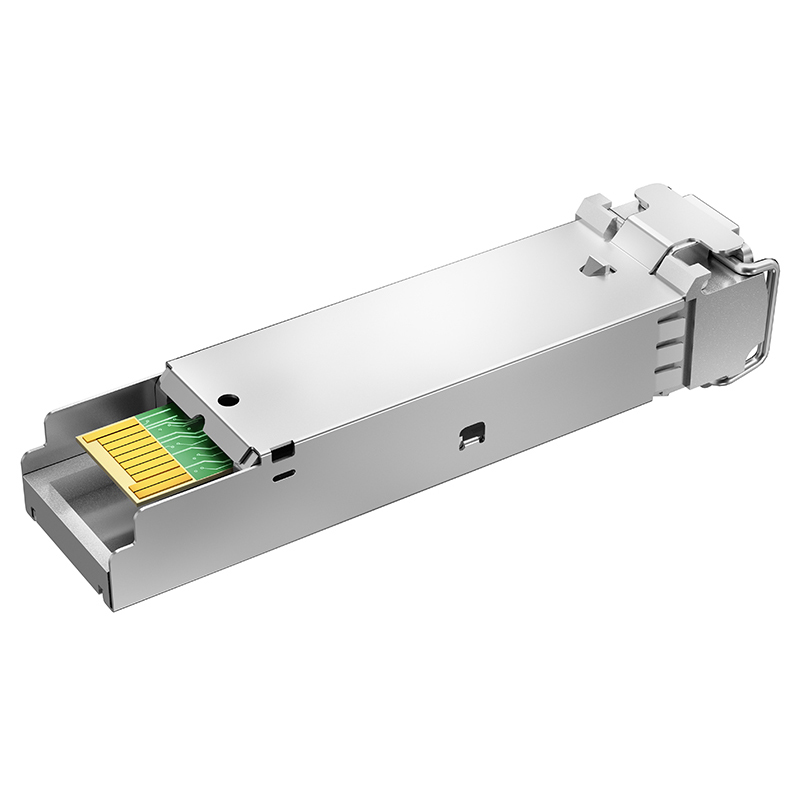

Single Mode 1550nm SFP 622M Transceiver 100km Duplex LC Optical Module

Product Description

Single Mode 1550nm SFP 622M Transceiver 100km Duplex LC Optical Module
Product Specifications
Part No. LS-SM5506-A0C
Form Factor SFP
Max Data Rate 622Mbps
Wavelength 1550nm
Max Cable Distance 100km
Connector Duplex LC
Media SMF
Transmitter Type DFB
Receiver Type PIN
EMC (Electro Magnetic Compatibility) Supported
DDM/DOM Supported
Protocols MSA Compliant
Temperature Range 0 to 70°C / -40 to 85°C
Warranty 5 Years
Sample Available
VIEW OUR SOLUTIONS
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. Provides a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
SFP 622M Transceiver
Support Full Range Of 622M SFP
Part Number Data Rate Wavelength Distance Media DDM
LS-MM8506-S5C 622Mbps 850nm 500m Multi-mode Yes
LS-SM3106-S5C 622Mbps 1310nm 500m Single Mode Yes
LS-SM3106-02C 622Mbps 1310nm 2km Single Mode Yes
LS-MM3106-02C 622Mbps 1310nm 2km Multi-mode Yes
LS-SM3106-20C 622Mbps 1310nm 20km Single Mode Yes
LS-SM3106-40C 622Mbps 1310nm 40km Single Mode Yes
LS-SM5506-80C 622Mbps 1550nm 80km Single Mode Yes
LS-SM5506-A0C 622Mbps 1550nm 100km Single Mode Yes
LS-SM5506-A2C 622Mbps 1550nm 120km Single Mode Yes
Interface Configuration
Product Portfolio
Applications & Scenarios
Optical Transport Networks
Optical Transport Networks
Provides end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules with product rates ranging from 10G to 800G has been developed, providing high-quality optical interconnection solutions for data centers.
Wireless Networks
Wireless
Provides high reliability and performance products with mature and efficient lasers and mainstream chip solutions to customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx Fiber Access
FTTx
Aimed at global communication network constructors, provides FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
Subsystems & Protection
Subsystems
To ensure the normal operation of the communication line, provides the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Related Products SFP Cage
Related SFP Cage Products
Why Choose Us
Quality Standard
Manufacturing Power
Advanced Testing
Global Support
Profile
A specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROHS, REACH, CE and UL, with advanced manufacturing equipment and testing equipment imported from abroad. Established in 1997, there are about 2000 employees at present. With the abundant production capacity of 3000K per month, products can be delivered within a short time.

In addition, a complete series of optical modules can be provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, products are designed, manufactured, and sold worldwide.
Factory Environment
Production Line
FAQ
Q Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you will need to cover the shipping cost.
Q What is your delivery time?
Products in stock are ready to ship immediately, while mass production typically takes 15-30 days.
Q What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Q Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so we can discuss the custom requirements in detail.
Q What is your advantage?
We have 19 years of manufacturing experience and have been a trusted partner for global industry leaders for many years.
