Home > 100G/200G/400G Module > 100GBASE-DR Single Lambda QSFP28 100G 1310nm 500m Duplex LC SMF Optical Transceiver Module

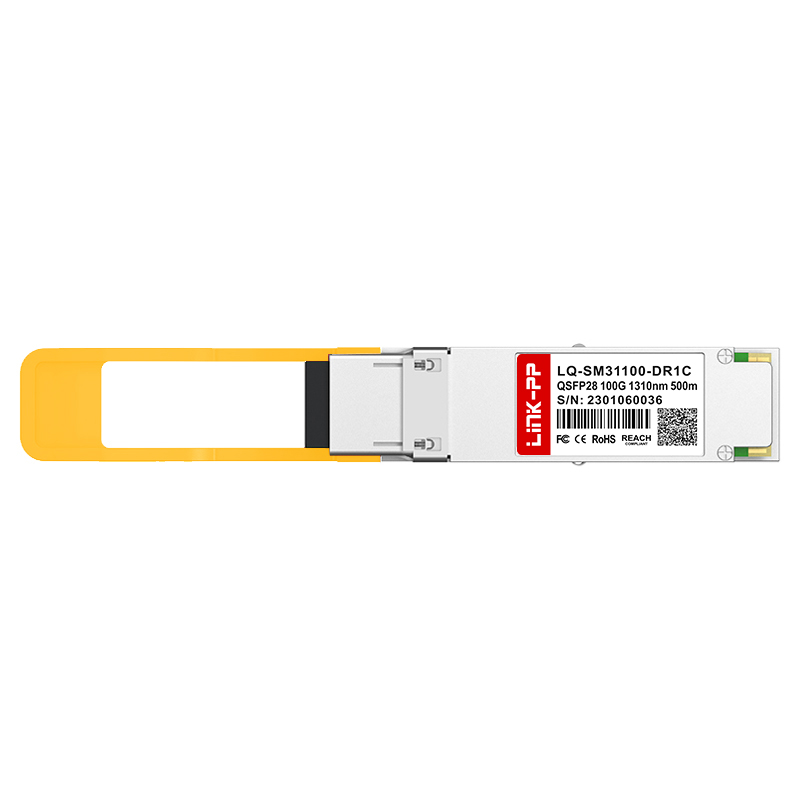

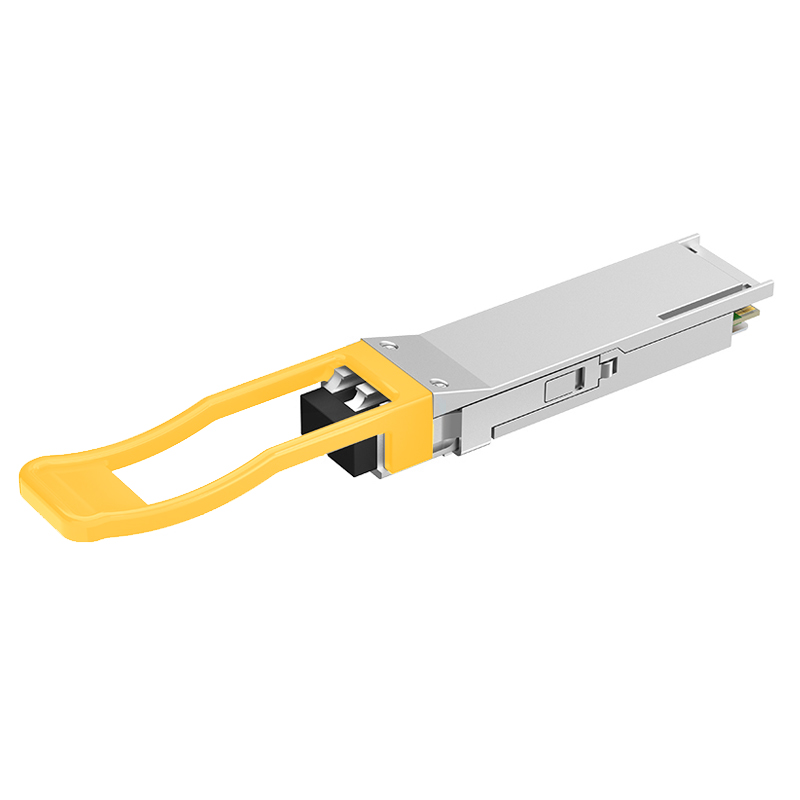

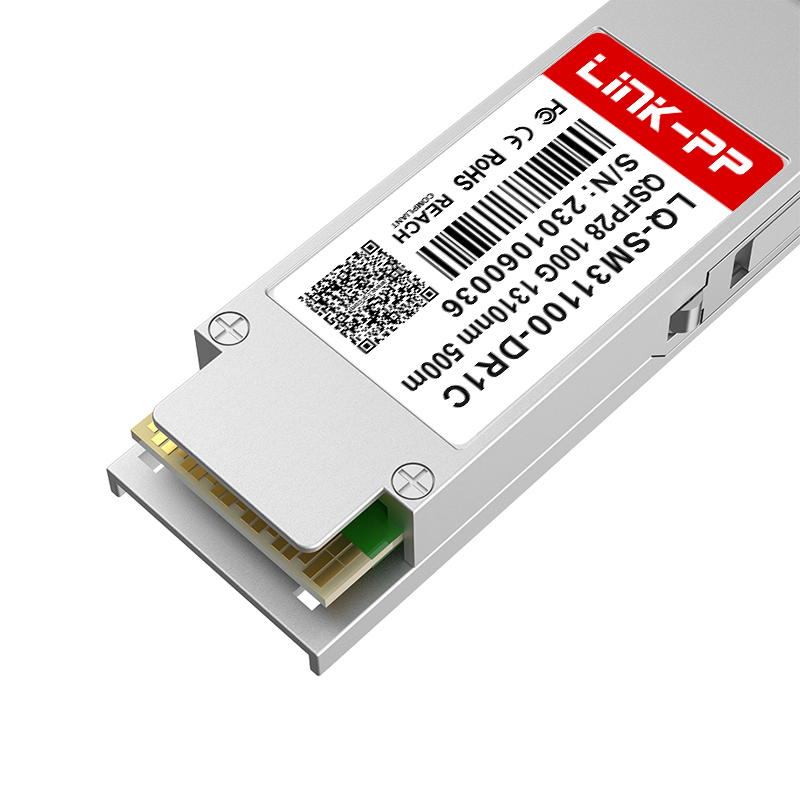

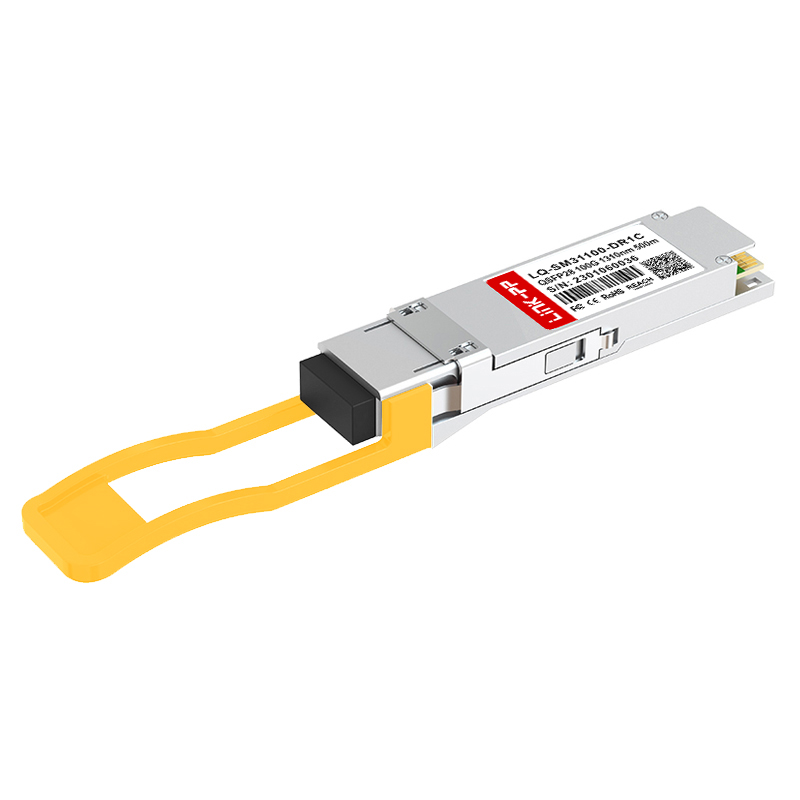

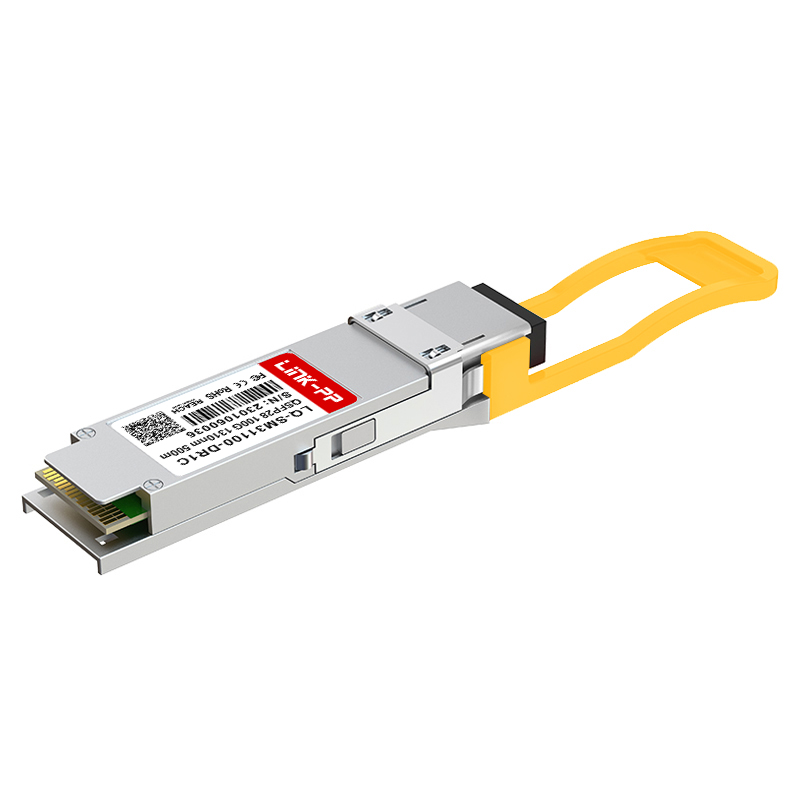

100GBASE-DR Single Lambda QSFP28 100G 1310nm 500m Duplex LC SMF Optical Transceiver Module
100GBASE-DR Single Lambda QSFP28 100G 1310nm 500m Duplex LC SMF Optical Transceiver Module
100GBASE-DR Single Lambda QSFP28 100G 1310nm 500m Duplex LC SMF Optical Transceiver Module
100GBASE-DR Single Lambda QSFP28 100G 1310nm 500m Duplex LC SMF Optical Transceiver Module
100GBASE-DR Single Lambda QSFP28 100G 1310nm 500m Duplex LC SMF Optical Transceiver Module
1 / 5
100GBASE-DR Single Lambda QSFP28 100G 1310nm 500m Duplex LC SMF Optical Transceiver Module
100GBASE-DR Single Lambda QSFP28 100G 1310nm 500m Duplex LC SMF Optical Transceiver Module
100GBASE-DR Single Lambda QSFP28 100G 1310nm 500m Duplex LC SMF Optical Transceiver Module
100GBASE-DR Single Lambda QSFP28 100G 1310nm 500m Duplex LC SMF Optical Transceiver Module
100GBASE-DR Single Lambda QSFP28 100G 1310nm 500m Duplex LC SMF Optical Transceiver Module

100GBASE-DR Single Lambda QSFP28 100G 1310nm 500m Duplex LC SMF Optical Transceiver Module

Send Inquiry

Product Description

100GBASE-DR Single Lambda QSFP28 100G 1310nm 500m Duplex LC SMF Optical Transceiver Module
Form Factor QSFP28
Max Data Rate 100Gbps
Wavelength 1310nm
Max Cable Distance 500m
Connector Duplex LC
Media SMF
Transmitter Type EML
Receiver Type PIN
EMC (Electro Magnetic Compatibility) Supported
DDM/DOM Supported
Protocols IEEE 802.3cd 100GBASE-DR Specification compliant
Temperature Range 0 to 70°C / -40 to 85°C
Warranty 5 Years
Sample Available
View Our Solutions
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transceiver Diagram
Optical Transceiver Front View
Optical Transceiver Back View
Transceiver Product Portfolio
Transceiver Selection Grid
Optical Transport Networks
Optical Transport Networks
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
FTTx
Aim to global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
Subsystems
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
